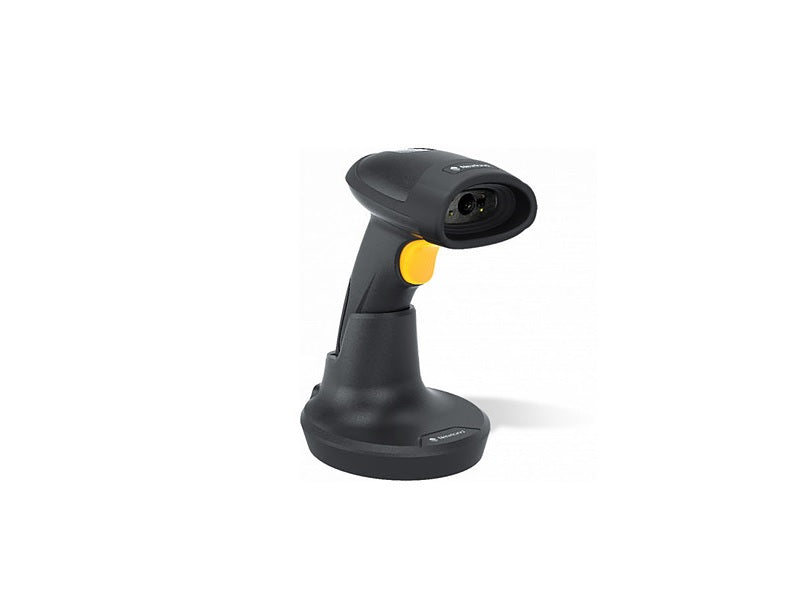

NEWLAND Id Hr32 2D Wireless Bt Scanner

Adopting Bluetooth 5.0 technology, the Newland HR32 Marlin BT SD (NLS-HR3280-BT-SD) is capable of maintaining a stable, interference-free connection for data transmission. The HR32 Marlin BT SD is equipped with megapixel technology to read virtually any 1D or 2D barcode in any condition. From long or truncated 1D codes to larger, higher density 2D codes. Equipped with a megapixel barcode reader, the HR32 Marlin BT SD reads virtually any 1D or 2D barcode in any condition. It offers better reading performance when reading long or truncated 1D codes or larger, higher density 2D codes.

Key features

• With dock stand USB cable & BT dongle
• Megapixel reading technology
• Perfect for point-of-sale

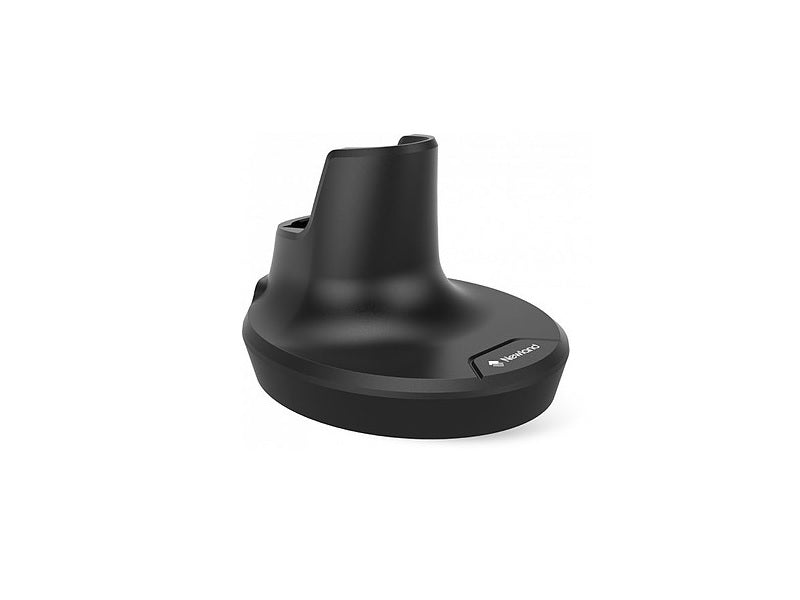

• The HR32 Marlin BT SD features a hands-free reading stand, ideal for point-of-sale applications. Users can process smaller items without having to grip the reader. The reader can then be picked up for larger items without handling cables.
• Tailored to the task
• With a drop resistance of 1.5 m and IP42 protection rating, the HR32 Marlin BT SD can fall from a high workbench or bench onto hard floors without any problems. The IP42 protection rating ensures a sufficiently high degree of waterproofing for dirty and wet environments.
• Flexible Bluetooth options

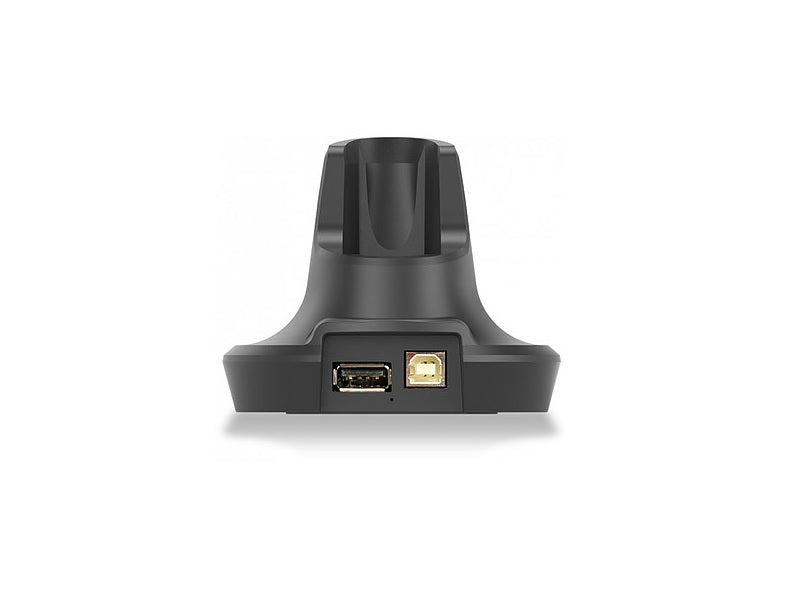

• The HR32 Marlin BT SD has 3 Bluetooth options. When the dongle and charging station are connected, the player transmits data via the USB cable to the host. The dongle can also be removed and used in a spare USB port, and the reader's Bluetooth can be paired with a third-party Bluetooth on a host.
• Flash memory: up to 15,000 pieces of Code 128 (20 bytes of each Code 128)
• 1D Formats Supported: EAN-8, EAN-13, UPC-E, UPC-A, Code128, Coupon, UCC/EAN128, CodaBar, I2Of5, Febraban, ITF14, ITF6, Matrix 25, Code39, Code93, ISSN, ISBN, Industrial 25, Standard 25, China Post 25, Plessey, Code 11, MSI Plessey, UCC/EAN Composite, GS1 Databar, Code 49, Code 16K, AIM 128
• Supported 2D formats: PDF417, Micro PDF417, QR Code, Micro QR Code, Aztec, Data Matrix, Chinese Sensitive Code, Maxicode, Code One
• Wireless distance (max.): 50 m (direct line of sight in open air)
• 2200 mAh lithium-ion battery: up to 12 hours continuous operation (one reading every 6 seconds)
• Certifications: FCC Part 15 Class B, CE EMC Class B

Specifications

• HR32 marlin BT SD: bluetooth 5.0 handheld 1D/2D barcode reader
• CMOS image sensor 1280 x 800 pixels
• Illumination: White LED and red LED
• Viewfinder: Green LED
• Protection rating: IP42
• Drop resistance: Reader: 1.5 m; Stand: 1.2 m
