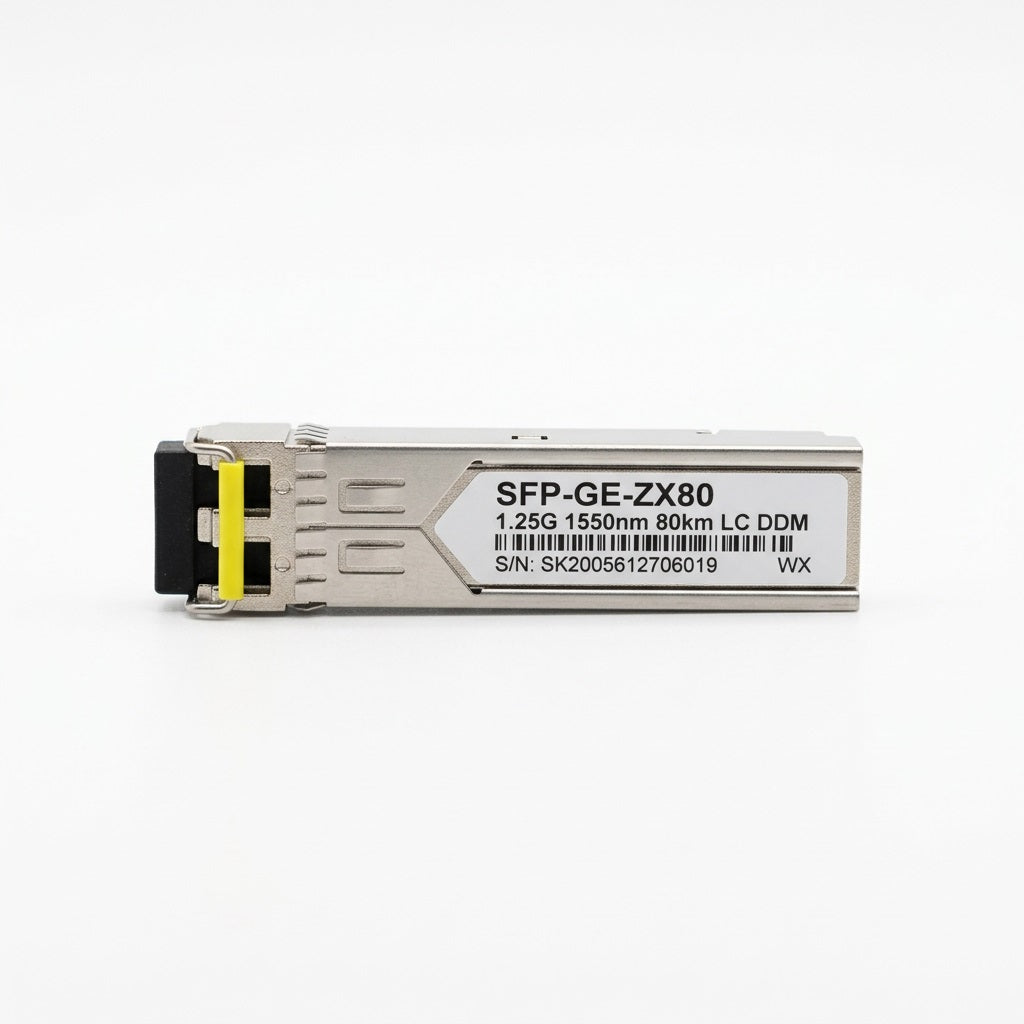

SFP Fiber Optic 1.25G 1550nm 80Km LCDDM

The SFP-GE-ZX80 1.25G 1550nm 80KM Single Mode Fibre SFP is a long-distance optical transceiver designed for compatible Gigabit Ethernet networking equipment. Operating at 1550nm and supporting transmission distances of up to 80 kilometres over single-mode fibre, it is suitable for extended fibre links used in enterprise networks, service-provider infrastructure, metropolitan networks and other long-distance communication applications.

The module uses a standard SFP hot-pluggable form factor and an LC optical interface for connection to compatible fibre cabling and network equipment. Published specifications for the SFP-GE-ZX80 identify a 1.25Gbps data rate, 1550nm wavelength, 80KM reach, single-mode fibre, DDM support and LC connectivity.

The optical transmitter uses a 1550nm DFB laser, while the receiver is specified as a PIN-based receiver on commonly documented versions. This combination is designed for long-distance Gigabit Ethernet optical transmission.

Long-Distance Fibre Connectivity

With a rated reach of up to 80KM, the SFP-GE-ZX80 is intended for applications where standard short-range Ethernet optics are not sufficient. Actual achievable distance depends on the fibre type, optical loss, connectors, splices, link budget and equipment at both ends.

DDM Monitoring

The module supports Digital Diagnostic Monitoring (DDM) on documented versions. When supported by the host network equipment, DDM can provide information useful for monitoring the optical module and diagnosing fibre-link conditions.
1.25Gbps Gigabit Ethernet optical transceiver
1550nm operating wavelength
Up to 80KM transmission distance
Single-mode fibre compatible
LC optical connector
DDM / DOM monitoring support
Standard SFP form factor
Hot-pluggable design
1550nm DFB laser transmitter
Designed for long-distance Gigabit Ethernet links
Suitable for compatible switches, routers and optical network equipment
Commercial temperature versions commonly specified for 0°C to 70°C
Specification Details
Product Model SFP-GE-ZX80
Form Factor SFP
Maximum Data Rate 1.25Gbps
Ethernet Application 1000BASE-ZX / Gigabit Ethernet
Wavelength 1550nm
Transmission Distance Up to 80KM
Fibre Type Single Mode Fibre (SMF)
Optical Interface LC
Fibre Configuration Duplex / Dual Fibre – commonly specified
Single-Fibre / BiDi Verify before listing as single fibre
Transmitter 1550nm DFB Laser
Receiver PIN
DDM / DOM Yes
TX Optical Power Approx. 0 to +5dBm on one published version
Receiver Sensitivity Approx. < -24dBm on one published version
Link Budget Approximately 22dB on one published version
Supply Voltage 3.3V
Operating Temperature 0°C to 70°C
Form Factor Hot-Pluggable SFP
Fibre Mode Single Mode
Connector Type LC Duplex
Application Long-Distance Gigabit Ethernet
