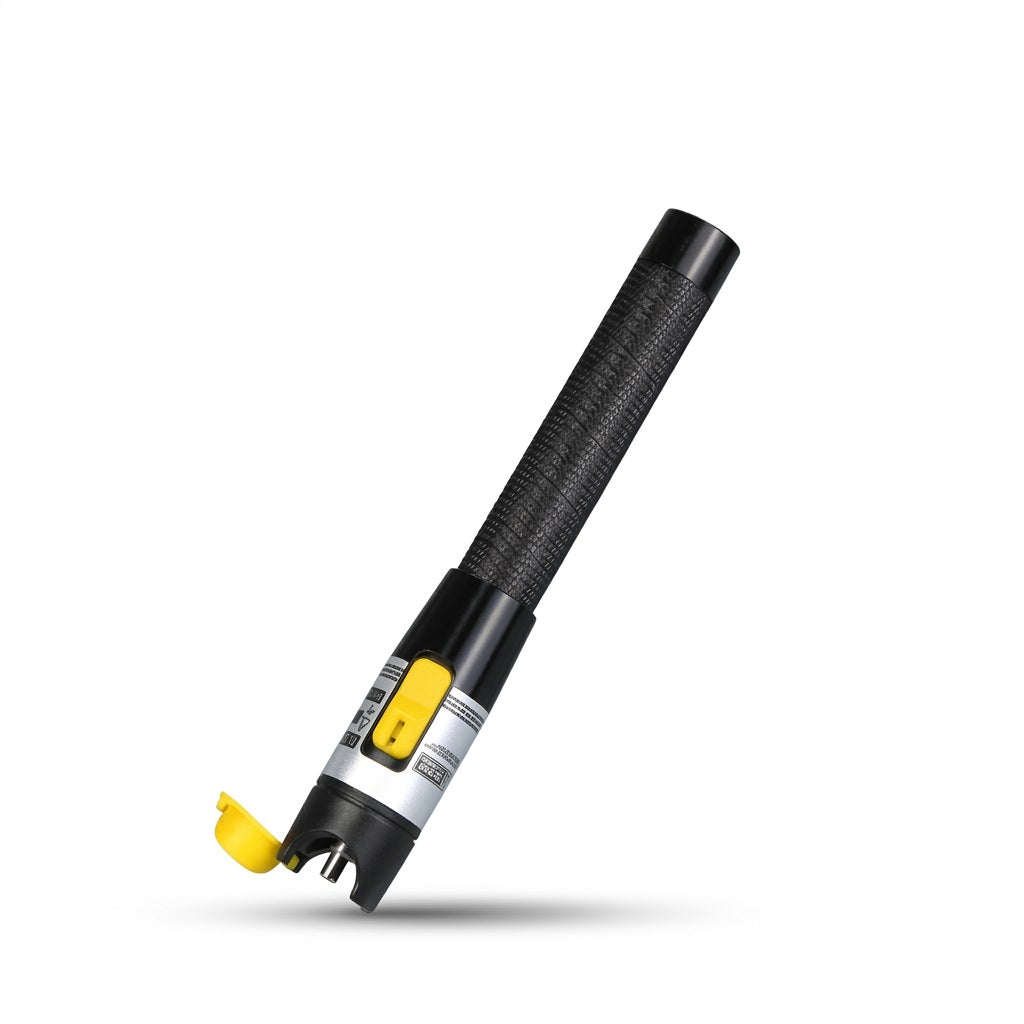

15mW Rechargeable Fiber Optic Visual Fault Locator – VFL Red Light Pen for FTTH Cable Testing

Quickly identify fiber optic cable breaks, bends, faults and continuity issues with this powerful 15mW Rechargeable Visual Fault Locator (VFL). Designed for professional fibre optic installation, testing and maintenance, this compact VFL uses a high-output 650nm red laser light source to help technicians locate faults and verify fibre continuity over long cable runs.

Featuring a durable metal pen-style body, rechargeable lithium battery, USB Type-C charging and continuous/pulsed light modes, this VFL is a convenient and reliable tool for field technicians, telecommunications installers, network engineers and FTTH contractors.

Key Features
Powerful 15mW Output: High-output red light source helps identify fibre breaks, bends, cracks and connection faults.
Easy Fault Detection: Clearly visible red light makes it easier to locate breaks and problem areas along fibre optic cables.
2.5mm Universal Interface: Compatible with common SC, FC and ST fibre optic connectors.
LC Compatibility: Can be used with LC connectors when paired with a suitable FC-male to LC-female conversion adapter.
Rechargeable Battery: Built-in 500mAh / 1.85Wh lithium battery eliminates the need for frequent battery replacement.
USB Type-C Charging: Convenient modern charging interface for easy field recharging.
Two Testing Modes: Choose between Continuous Wave (CW) and Pulse/Flicker (GLINT) modes.
Simple Slide-Switch Operation: Easy three-position control for quick operation.
Durable Metal Construction: Strong textured metal body designed for regular professional and field use.
Replaceable Ceramic Core: The 7mm internal ceramic core can be replaced if required.
Compact Pen Design: Lightweight and portable, making it easy to carry in a toolbox, technician bag or pocket.
Protective Dust Cap: Helps protect the optical interface from dust and contamination when not in use.
Operating Modes

CW – Continuous Wave:
Provides a continuous red light output for fibre continuity testing and fault tracing.

OFF – Power Off:
Turns the VFL off when not in use.

GLINT – Pulse/Flicker Mode:
Produces a flashing/pulsed red light that can make the VFL signal easier to identify during testing.

Technical Specifications
Specification Details
Product Type Visual Fault Locator (VFL)
Output Power 15mW
Light Source Red Visible Light
Interface 2.5mm Universal Adapter
Connector Compatibility SC / FC / ST
LC Compatibility Via Optional FC-Male to LC-Female Adapter
Charging Port USB Type-C
Battery Built-in Lithium Battery
Battery Capacity 500mAh / 1.85Wh
Operating Modes CW Continuous / GLINT Pulse
Body Material Textured Metal
Replaceable Components Metal Head / 7mm Ceramic Core
Form Factor Pen-Style Portable Design
Package Includes
1 × 15mW Rechargeable Visual Fault Locator Pen
1 × Protective Dust Cap
1 × USB Type-C Charging Cable

Note: FC-Male to LC-Female conversion adapters for 1.25mm LC interfaces are available separately.

Ideal Applications

This 15mW Rechargeable VFL Fibre Optic Cable Tester is ideal for:

FTTH Fibre Installation
Fibre Optic Cable Testing
Fibre Continuity Testing
Fibre Break Detection
Fibre Bend Detection
Network Troubleshooting
Telecommunications Maintenance
ISP Fibre Installation
LAN/WAN Fibre Networks
CCTV Fibre Networks
Data Centre Fibre Maintenance
Fibre Optic Technician Field Work
Fibre Patch Cable Testing
Portable Professional Fibre Testing Tool

The 15mW Rechargeable Visual Fault Locator is a practical tool for technicians who need a quick and straightforward way to check fibre optic cables in the field. Its 15mW red light source, rechargeable battery, USB Type-C charging, universal 2.5mm connector and durable metal construction make it suitable for everyday fibre optic installation and troubleshooting.
