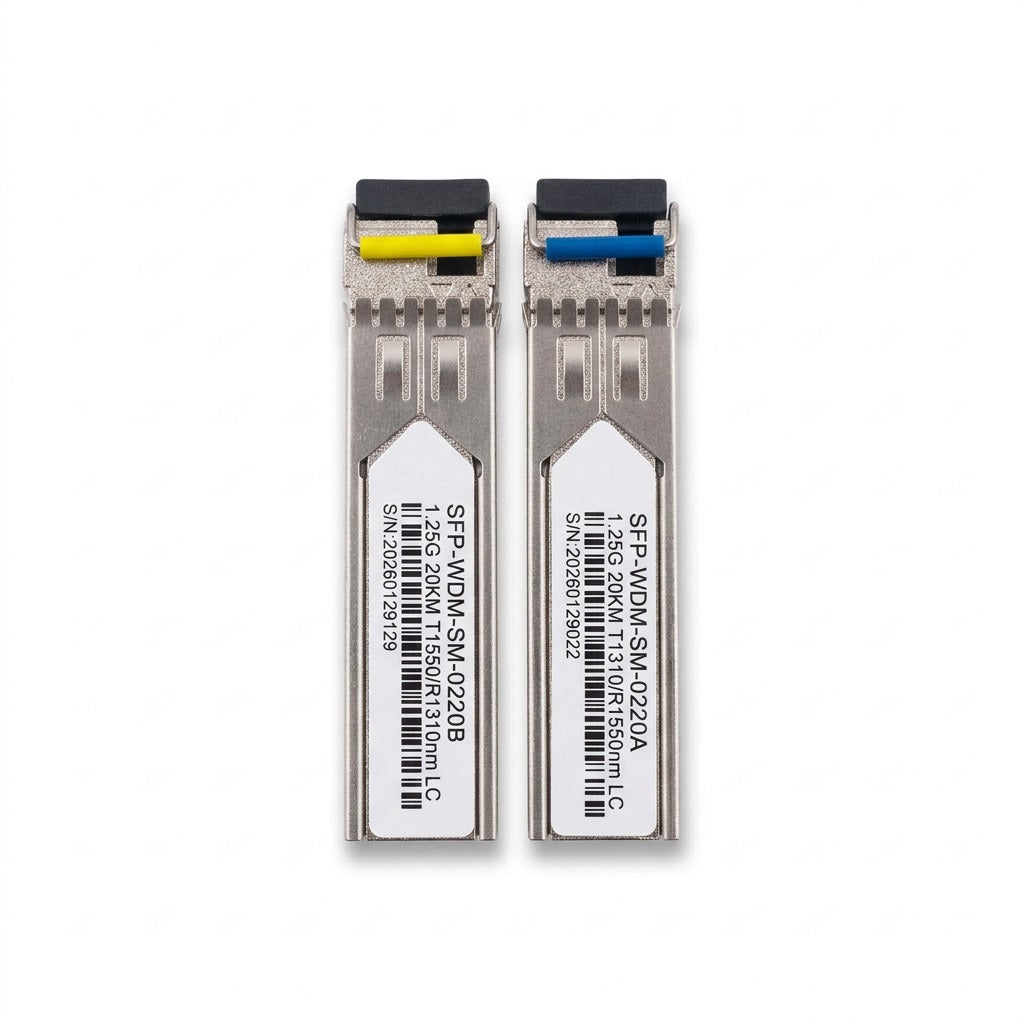

SFP 1.25G 20KM Pair T1310/R1550NM LC

The SFP-WDM-SM-0220A/B 1.25G 20KM BiDi WDM SFP Pair is designed for bidirectional Gigabit Ethernet communication over a single strand of single-mode fibre. It provides a practical solution for network installations where only one fibre core is available but data must travel in both directions.

Using BiDi (Bidirectional) and WDM (Wavelength Division Multiplexing) technology, the pair sends and receives optical signals at different wavelengths through the same fibre core. Module A transmits at 1310nm and receives at 1550nm, while Module B transmits at 1550nm and receives at 1310nm.

With a specified transmission distance of up to 20KM and a data rate of 1.25Gbps, these modules are suitable for compatible Gigabit Ethernet switches, routers, fibre media converters and other network equipment with SFP ports.

Each module uses an LC optical interface and a standard SFP form factor. For correct operation, the A and B modules must be installed at opposite ends of the fibre link as a matched pair.
1.25Gbps data rate
Transmission distance up to 20KM
BiDi/WDM single-fibre technology
Designed for single-mode fibre
Module A: TX 1310nm / RX 1550nm
Module B: TX 1550nm / RX 1310nm
LC optical connector
Standard SFP form factor
Bidirectional communication over one fibre core
Suitable for compatible Gigabit Ethernet equipment
Ideal for network extensions and fibre installations with limited cores
Specification Module A Module B
Model SFP-WDM-SM-0220A SFP-WDM-SM-0220B
Data Rate 1.25Gbps 1.25Gbps
Transmission Distance Up to 20KM Up to 20KM
Fibre Type Single Mode Single Mode
Technology BiDi / WDM BiDi / WDM
Transmit Wavelength 1310nm 1550nm
Receive Wavelength 1550nm 1310nm
Optical Connector LC LC
Fibre Configuration Single Fibre Single Fibre
Form Factor SFP SFP
Application Gigabit Ethernet Gigabit Ethernet
