AL-5117 Automatic Money Counter Banknote

AL-5117 Automatic Money Counter – Banknote Counting Machine with Counterfeit Detection
Short Description (Key Features)
Automatic Banknote Counting: Quickly and efficiently counts banknotes with automatic start, stop and clear functions.
High-Speed Counting: Counts at speeds of 1,000 notes per minute or more, helping reduce manual cash-counting time.
UV & MG Counterfeit Detection: Uses UV (ultraviolet) and MG (magnetic) detection to help identify suspicious banknotes during counting.
IR Double-Note Detection: Infrared detection helps identify double-fed notes and reduce counting errors.
Half & Chained Note Detection: Automatically detects half notes and chained notes while counting.
Batch Counting: Allows users to set a required quantity of notes for easier cash bundling.
ADD Function: Accumulates counts from multiple batches for convenient cash reconciliation.
Self-Checking Function: Built-in self-checking functionality helps monitor machine operation.
Large Hopper & Stacker: Depending on the specification, the machine accommodates approximately 200–300 notes in the hopper and stacker.
RS-232 Interface: Provides an RS-232 connection for software updates on supported versions.
Long Product Description

The AL-5117 Automatic Money Counter is a practical cash-handling machine designed to count banknotes quickly and efficiently while providing built-in counterfeit-detection functions.

With a counting speed of at least 1,000 banknotes per minute, the AL-5117 can significantly reduce the time required to manually count cash. It is suitable for businesses and organisations that regularly process banknotes, including retail stores, supermarkets, offices, restaurants, cash offices and other cash-handling environments.

Counterfeit Detection

The AL-5117 incorporates multiple detection functions to help identify suspicious or incorrectly fed banknotes:

UV Detection: Checks ultraviolet security characteristics.
MG Detection: Checks magnetic characteristics used in supported banknotes.
IR Detection: Helps detect double-fed notes.
Half-Note Detection: Identifies partially fed or half notes.
Chained-Note Detection: Helps identify multiple notes passing through together.

When a suspicious note or counting error is detected, the machine can stop the counting process and alert the operator.

Important: Counterfeit detection functions are designed to assist with identifying suspicious banknotes and should not be regarded as an absolute guarantee that a banknote is genuine.

Counting Functions
Automatic Counting

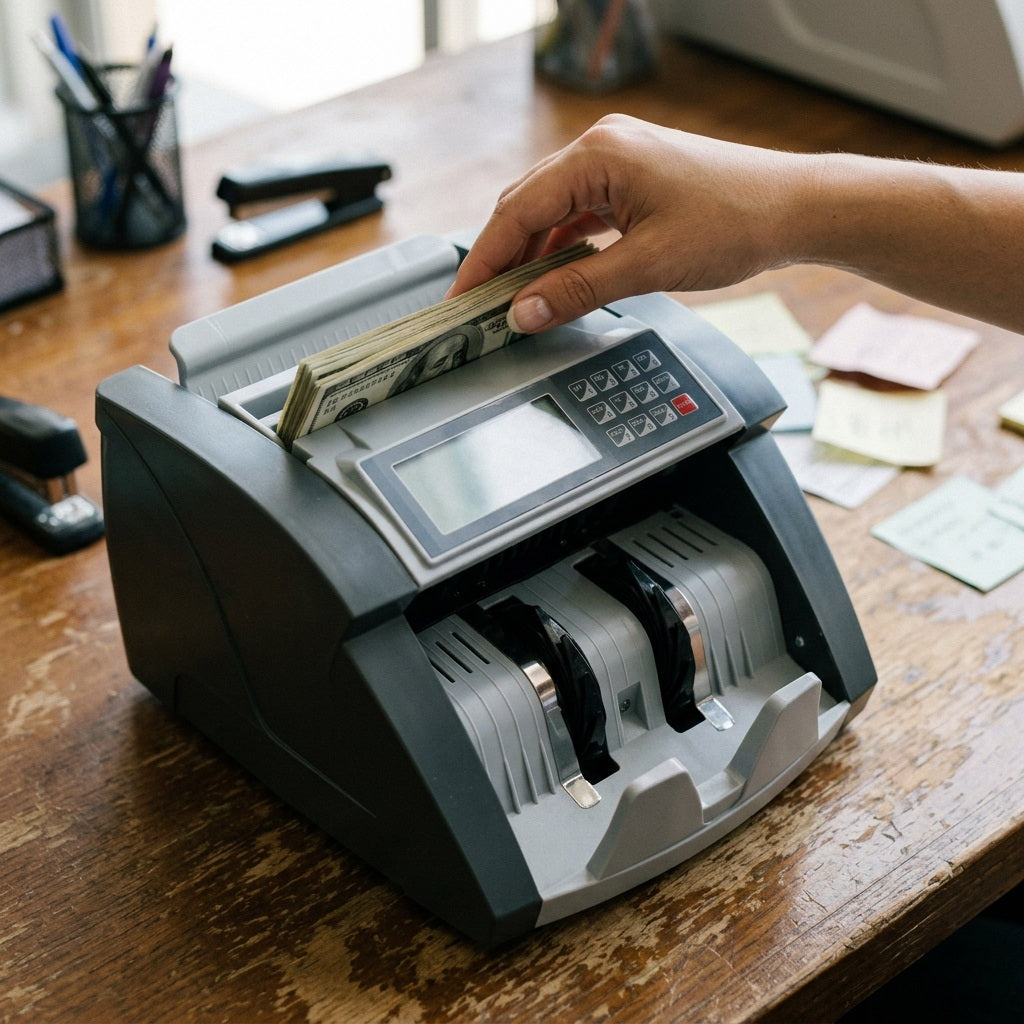

Place the banknotes into the hopper and the machine can automatically begin counting, reducing the need for manual operation.

Batch Function

The BATCH function allows a specific quantity to be selected, making it useful for preparing cash bundles or separating notes into predetermined quantities.

ADD Function

The ADD function keeps a running total when counting multiple batches, making it easier to reconcile cash without manually adding individual counts.

Self-Checking

The built-in self-checking function helps monitor the machine`s operating condition and supports reliable day-to-day use.

Ideal Applications

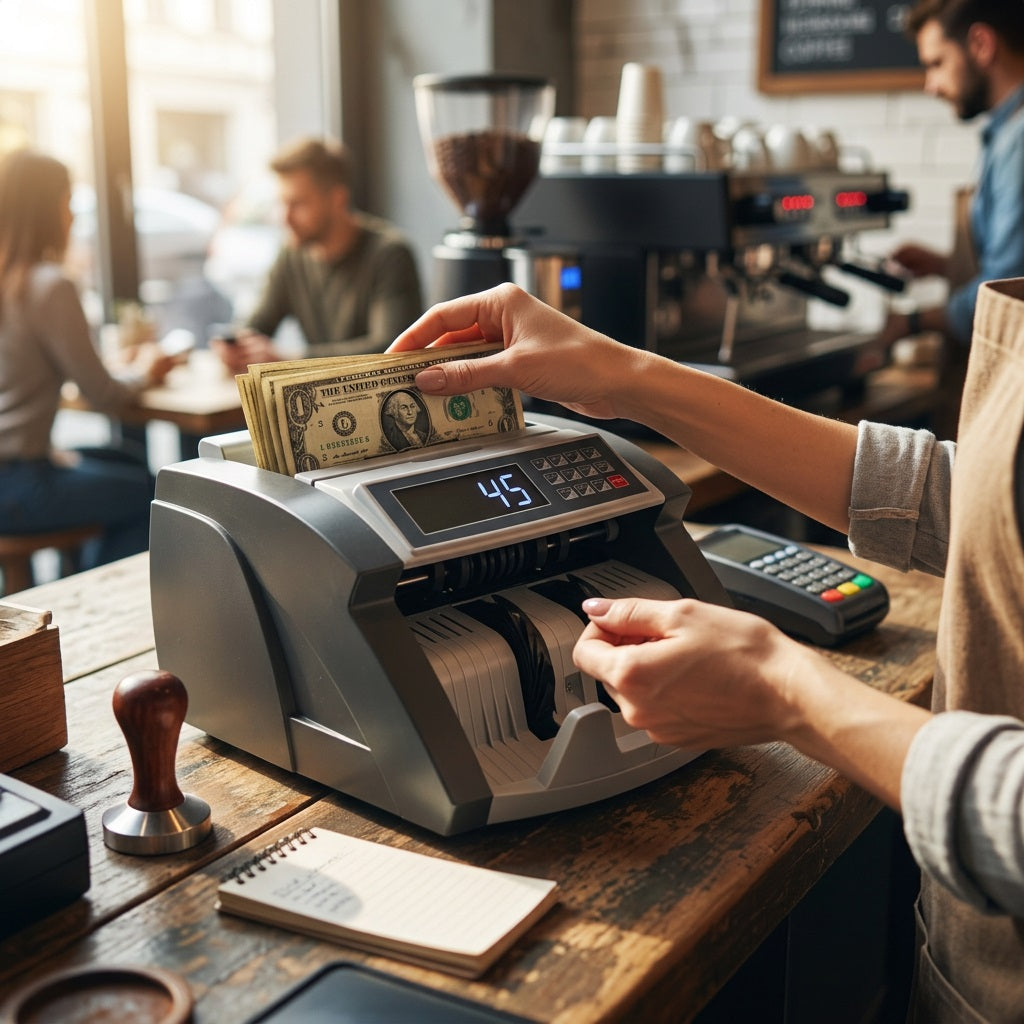

Retail stores
Supermarkets
Restaurants and hospitality businesses
Cash offices
Small and medium-sized businesses
Cashier stations
Wholesalers
Offices handling regular cash payments
Cash collection points
General commercial cash handling
Technical Specifications
Specification Details
Model AL-5117
Product Type Automatic Banknote Counter
Counting Speed ≥1,000 notes/minute
Counterfeit Detection UV / MG
Double-Note Detection IR
Half-Note Detection Yes
Chained-Note Detection Yes
Counting Functions Count / Batch / ADD / Self-Check
Hopper Capacity Approx. 200–300 notes
Stacker Capacity Approx. 200–300 notes
Countable Note Size Approx. 50 × 110mm to 90 × 180/190mm
Power Consumption ≤80W
Power Supply AC 220V ±10%, 50Hz / AC 110V ±10%, 60Hz
Interface RS-232
Display LCD
Application Banknote Counting & Detection

Published AL-5117 specifications vary slightly between manufacturer/distributor versions, particularly regarding dimensions and maximum note size.

Important Note

The AL-5117 is primarily a banknote counting machine with counterfeit-detection assistance. It is designed to count notes rather than automatically calculate the total monetary value of mixed denominations.

For best results, banknotes should be placed neatly into the hopper and the machine should be kept clean and properly maintained.

What`s in the Box

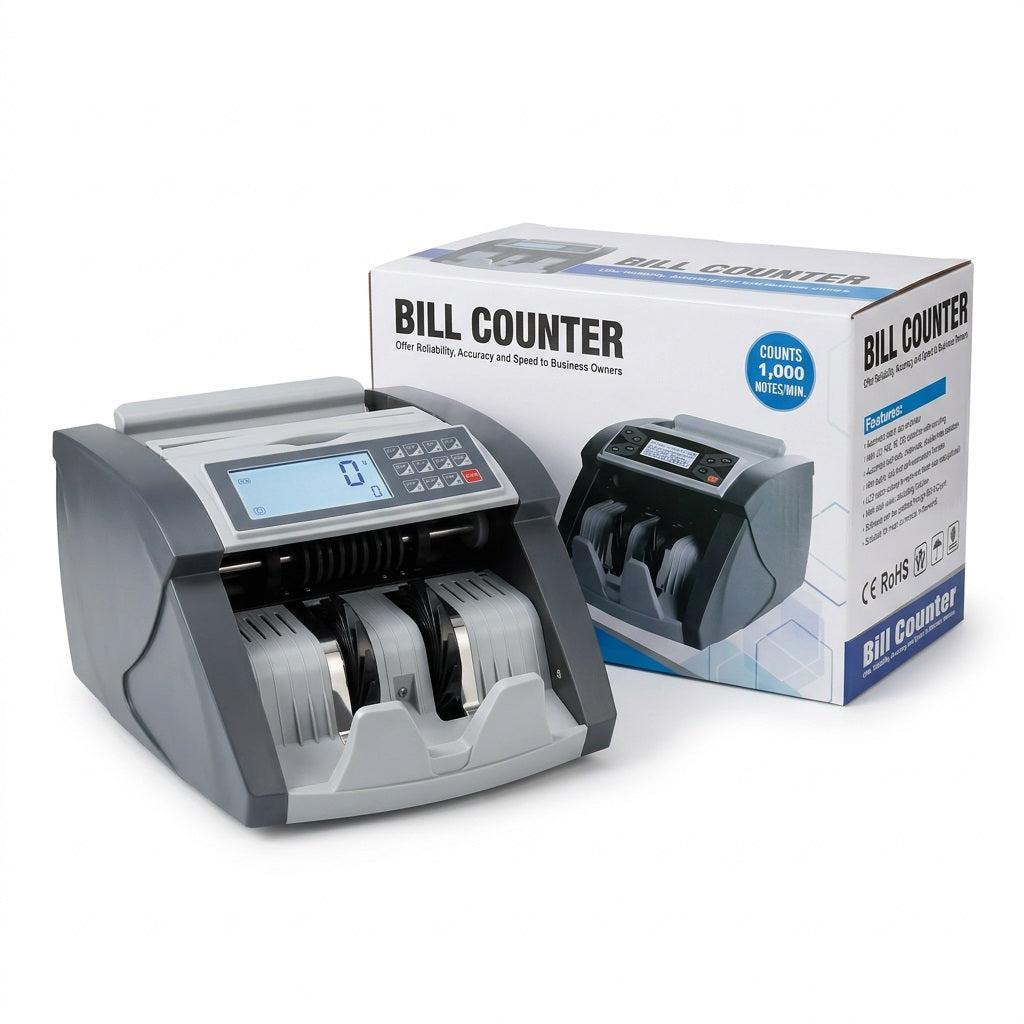

1 × AL-5117 Automatic Money Counter
1 × Power Cable
1 × User Manual / Documentation
