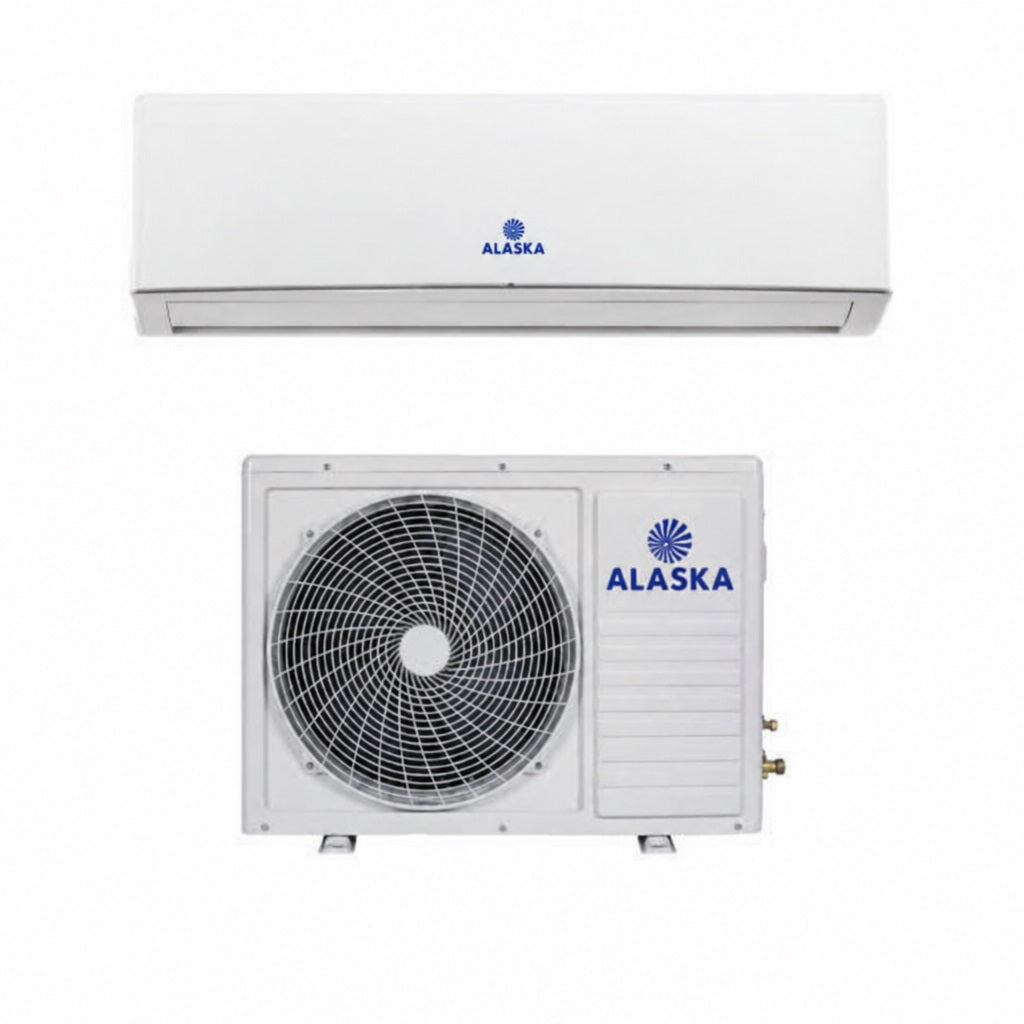

ALASKA SH30000BTU Non-Inverter

ALASKA SH30000 SH30 Non-Inverter Air Conditioner with 2M Copper Pipe
Product Description
The ALASKA SH30 SH30000 Non-Inverter Air Conditioner is a powerful 30,000 BTU heating and cooling split air conditioner designed for larger residential and commercial spaces.
The SH30 provides a 30,000 BTU/h cooling capacity with a rated cooling input of 2800W. For heating, it also delivers 30,000 BTU/h, with a rated heating input of 2900W. It operates from a single-phase 170–260V, 50Hz power supply. SH-AD-2
The unit uses a rotary LAMDA/GREE compressor and R410A refrigerant. Its indoor unit delivers airflow of 1150 / 950 / 800 m`b3/h across high, medium and low settings, making it suitable for larger spaces. SH-AD-2 SH-AD-2
According to ALASKA`s SH Series brochure, the range includes useful functions such as Turbo Fan, Timer, Auto Clean, Economy Mode, Self Diagnosis, Low Noise and Sleep Modes. The brochure also specifies a 1-year comprehensive warranty and 3-year compressor warranty. SH-AD-2
This listing includes a 2-metre copper pipe.
Key Features
- Brand: ALASKA
- Series: SH Series
- Model: SH30 / 30K
- Type: Non-Inverter Split Air Conditioner
- Cooling & Heating
- Cooling Capacity: 30,000 BTU/h
- Heating Capacity: 30,000 BTU/h
- Recommended Application Area: 40–60 m`b2
- Indoor Airflow: 1150 / 950 / 800 m`b3/h
- R410A Refrigerant
- Rotary Compressor
- Turbo Fan
- Timer
- Auto Clean
- Economy Mode
- Self Diagnosis
- Low Noise
- Sleep Modes
- Includes 2M Copper Pipe
SH30 Technical Specifications
Specification ALASKA SH30
Power Supply 1Ph / 170–260V / 50Hz
Cooling Capacity 30,000 BTU/h
Cooling Capacity 8200W
Cooling Input Power 2800W
Cooling Rated Current 13.12A
EER 2.93
Heating Capacity 30,000 BTU/h
Heating Capacity 8300W
Heating Input Power 2900W
Heating Rated Current 13.59A
COP 2.86
Compressor Type Rotary
Compressor Model QXAH-E265H050
Compressor Brand LAMDA/GREE
Refrigerant R410A
Application Area 40–60 m`b2

These cooling, heating, compressor and application-area figures are taken specifically from the SH30/30K column of the brochure. SH-AD-2 SH-AD-2
Indoor Unit – SH30
Specification Detail
Indoor Coil Rows 2
Fin Material Hydrophilic
Tube `d87 Inner Grooved
Air Flow High/Medium/Low 1150 / 950 / 800 m`b3/h
Rated Input Power 80W
Noise High/Medium/Low 49 / 47 / 45dB
Unit Dimensions 1130 × 361 × 252mm
Packing Dimensions 1210 × 440 × 335mm
Net Weight 16.9kg
Gross Weight 19.4kg

The SH30 indoor-unit dimensions, airflow, noise and weight figures are shown in the final column of the indoor-unit section. SH-AD-2
Outdoor Unit – SH30
Specification Detail
Outdoor Fan Motor Output 50W
Fan Speed 860 ±30 rpm
Outdoor Coil Rows 2
Fin Material Hydrophilic
Tube `d89.52 Inner Grooved
Outdoor Unit Dimensions 903 × 379 × 658mm
Packing Dimensions 1026 × 425 × 750mm
Noise Level 54dB
Net Weight 49.5kg
Gross Weight 52kg

SH-AD-2
Refrigerant Pipe Specifications
Liquid Side: `d86mm
Gas Side: `d815.88mm
Maximum Refrigerant Pipe Length: 15m
Maximum Level Difference: 10m
Included with this listing: 2m Copper Pipe
The first four pipe specifications come directly from the SH30 column of the brochure. SH-AD-2
Operating Range
Operation Temperature Range: -8°C to 42°C
Ambient Temperature Range: -8°C to 48°C
Recommended Application Area: 40–60 m`b2 SH-AD-2
Warranty
1 Year Comprehensive Warranty
3 Year Compressor Warranty
