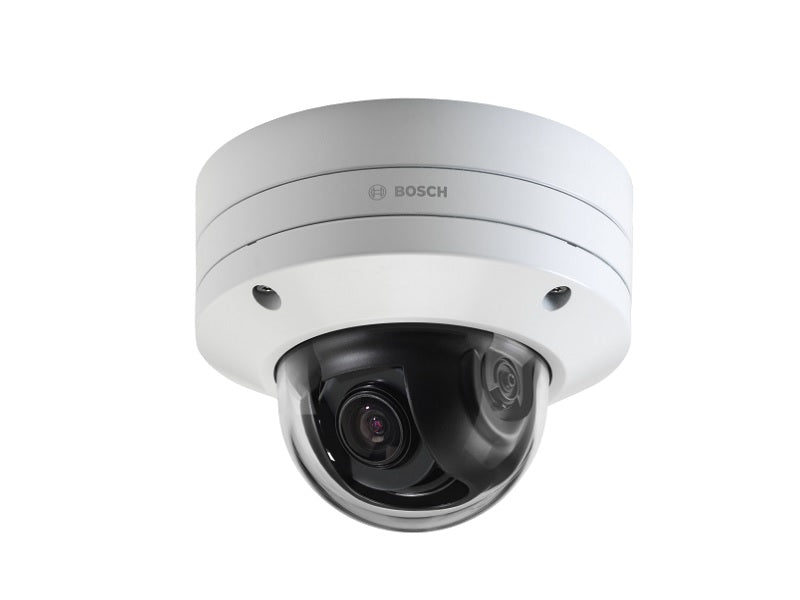

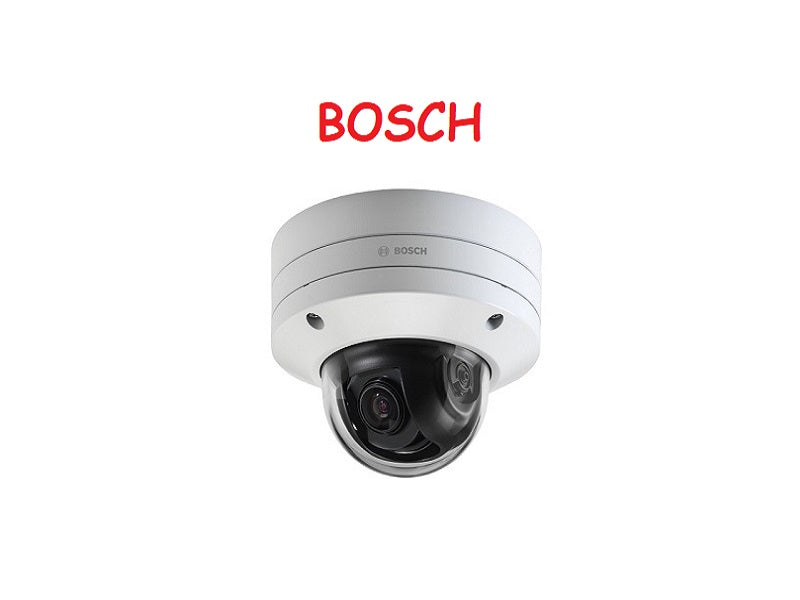

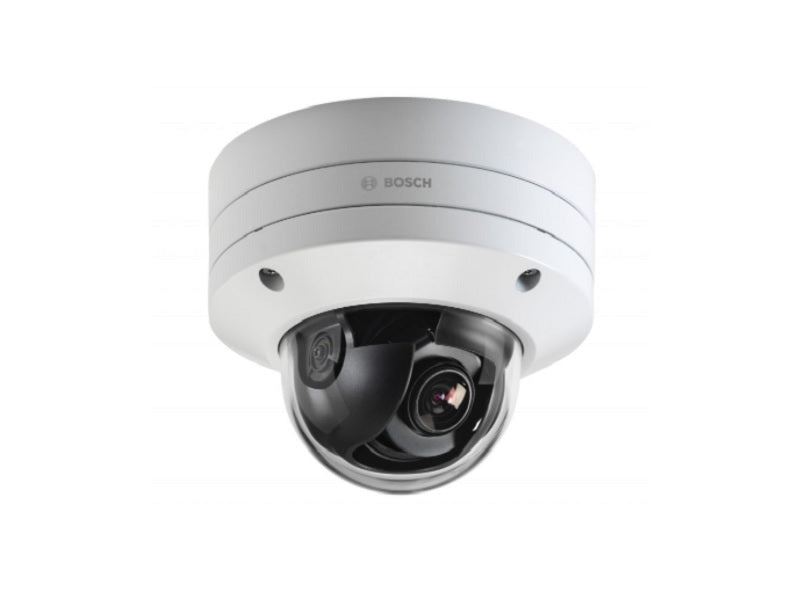

BOSCH 6Mp Vf Dome 3.9-10Mm Ip66

Input voltage PoE IEEE 802.3af / 802.3at Type 1, Class 3. Effective pixels 3264 (H) x 1840 (V) pixels, 6.0MP (approx.).

Key features

• PoE and auxiliary power can be connected
• simultaneously for redundant operation
• (typical / maximum)
• 24 VAC: 7.1 W - 12 VA / 13 W - 25 VA
• Measured according to IEC 62676 Part 5 (1/25, F1.5)
• Measured according to IEC 62676 Part 5 (1/25, F2.3)
• Dynamic range
• Measured according
• 107 dB WDR (3.9 to 10 mm lens)
• 106 dB WDR (12 to 40 mm lens)
• Sensor modes 25 fps, HDR, 3072 x 1728 (5.3 MP)
• 30 fps, HDR, 3072 x 1728 (5.3 MP)
• Streaming Multiple configurable streams in H.264, H.
• bandwidth.
• Regions of Interest (ROI)
• Bosch Intelligent Streaming
• Camera latency 120 ms (6 MP, 30 fps)
• GOP structure IP
• Signal-to-Noise Ratio
• (SNR)
• Adjustable picture
• settings
• White Balance 2500 to 10000K, 4 automatic modes (Basic,
• Manual mode and Hold mode
• starlight technology and High Dynamic Range with 6
• megapixel resolution to provide crisp and highly
• detailed images even in extreme low-light situations. It
• delivers excellence in video security and data
• management and has built-in state-of-the-art Intelligent
• It’s rugged and aesthetic design makes the camera
• suitable for any indoor or outdoor installation.
• The camera’s remote commissioning functionality
• makes sure installation and commissioning can be
• done in very little time. Using a PC or a mobile device
• with the Bosch Project Assistant app, you can pan, tilt,
• roll and zoom (PTRZ) and point the camera to the
• required field of view with a single click - without ever
• having to touch the camera or lens.
• Connectors

Specifications

• 24 VAC `b110%
• 12-26 VDC `b110%
• PoE: 7 W / 13 W
• 12-26 VDC: 7.5 W / 16 W
• Sensor
• Sensor type 1/1.8‑inch CMOS
• Starlight sensitivity (3.9 to 10 mm lens)
• Color 0.040 lx
• Mono 0.0059 lx
• Starlight sensitivity (12 to 40 mm lens)
• Color 0.084 lx
• Mono 0.0135 lx
• Wide Dynamic Range 120 dB WDR
• to IEC 62676 Part 5
• Video compression H.265; H.264; M- JPEG
• 25 fps, 3264 x 1840 (6 MP)
• 30 fps, 3264 x 1840 (6 MP)
• 265 and M-JPEG, configurable frame rate and
• Frame rate 1-30 fps
• >55 dB
• Contrast, Saturation, Brightness
• Standard, Sodium lamp, Dominant color),
• The FLEXIDOME IP starlight 8000i cameras offer
• 1 x Flexidome Camera
• 1 x Template
• 1 x Bracket
