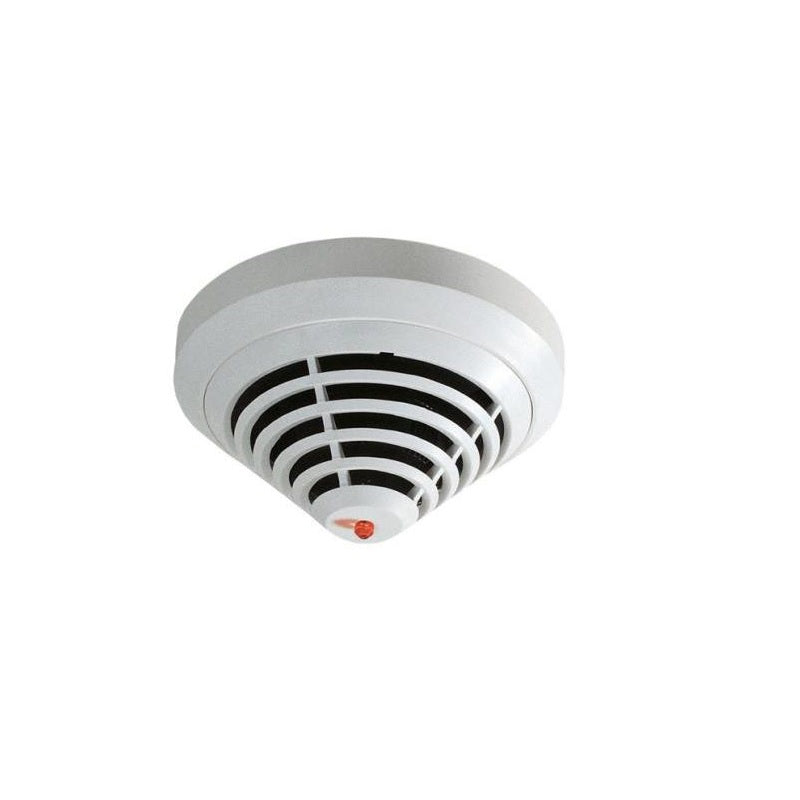

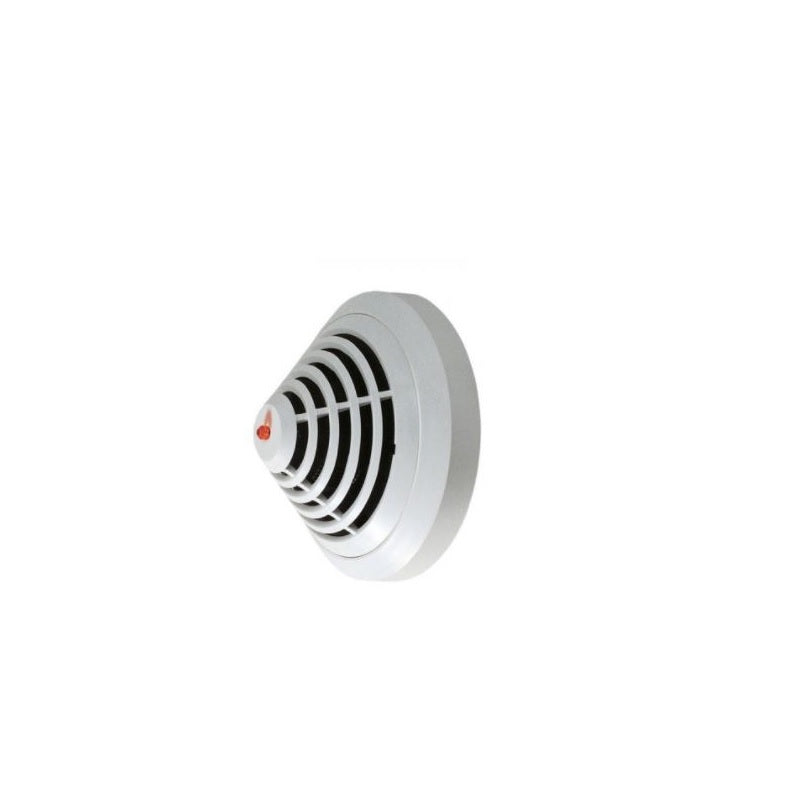

BOSCH Smoke Detector Opticalmulti Sensor

Active adjustment of the threshold if the optical sensor becomes dirty. Weight without/with packaging Approx. 80 g / approx. 120 g.

Key features

• High reliability of detection thanks to evaluation electronics
• Activation of a remote external detector alarm display possible
• Dust-repellent labyrinth and cap construction
• Electrical
• Alarm output Increase in current
• (alarm resistance 820 ? or 470 ?)
• Indicator output Open collector connects 0 V in the
• Mechanics
• Individual display LED red
• Housing material Plastic, ABS
• matt finish
• Approx. 85 g / approx 130 g

Specifications

• Operating voltage 8.5 V DC to 30 V DC
• Current consumption < 0.12 mA
• event of an alarm over 3.92 k?
• Without base `d8 99.5 x 52 mm

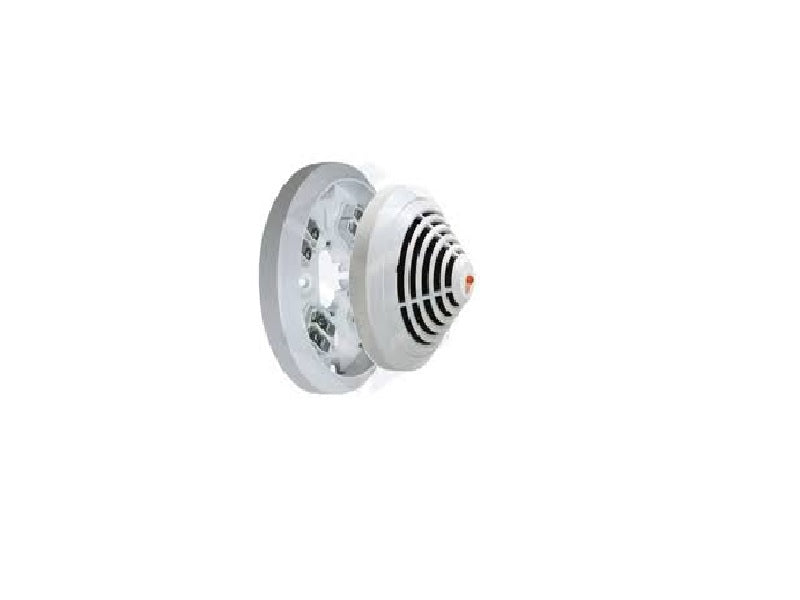

• With base `d8 120 x 63.5 mm
• Housing color White, similar to RAL 9010,
• Fcp-oc320 /
• Fcp-oc320-r470
