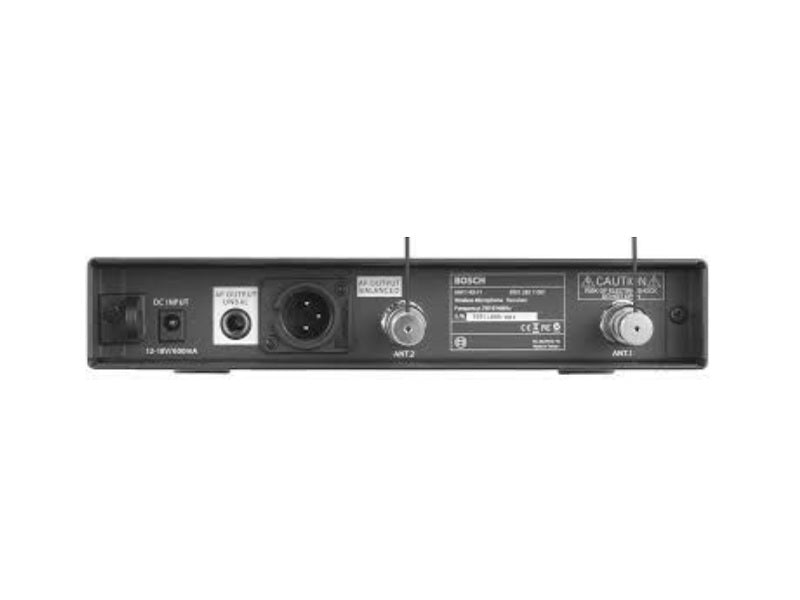

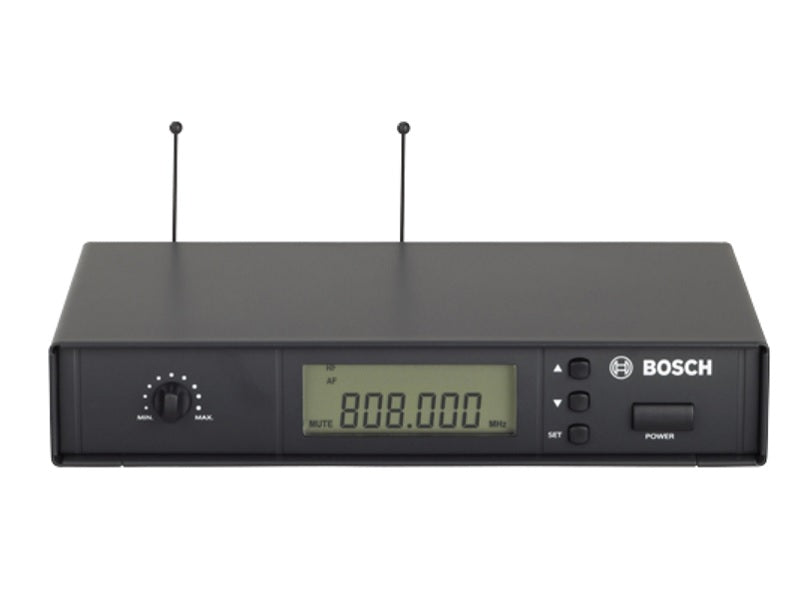

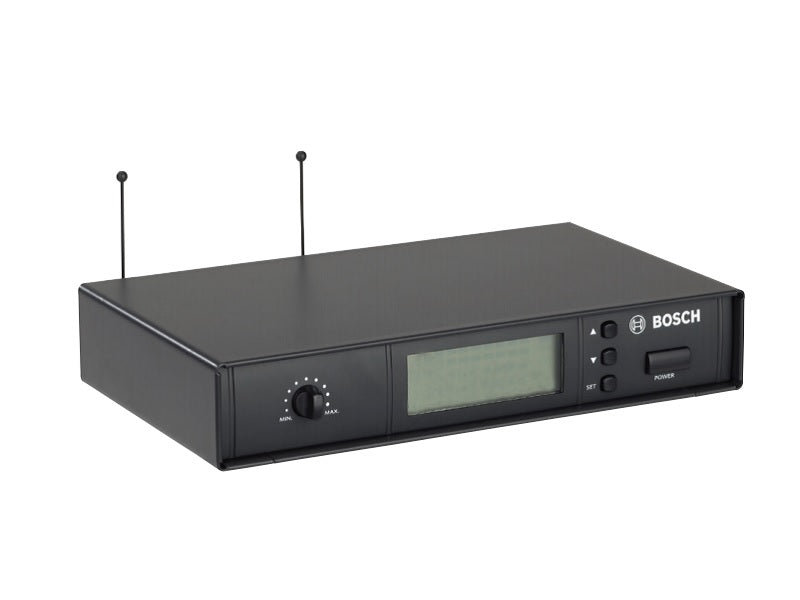

BOSCH Wireless Microphone Receiver

Dimensions (H x W x D) 40 x 211 x 152 mm.

Key features

• PLL synthesized technology
• Pilot tone and noise squelch
• True diversity for stable reception
• The wireless microphone receiver is part of the Bosch
• wireless microphone system. This system is designed
• for public address in churches, restaurants,
• conference centers, hotels, shops and many other
• applications.
• Electrical
• Performance
• Modulation FM
• Channels 193 channels (in steps of 125 kHz)
• Squelch Pilot tone and noise mute

Specifications

• 606-630MHZ
• 193 selectable UHF channels
• Table top and 19” rack mountable
• Power source 12 V to 18 V, 500 mA
• Frequency selection PLL synthesized control
• Frequency range 606 to 630 MHz
• Frequency stability `b10.005%
• S/N ratio >105 dB
• T.H.D <0.6% at 1 kHz
• Antenna 2 x
• Connector BNC
• HF impedance 50 ohm
• Output 2 x
• Connector XLR 3‑pin male, balanced
• Output level ‑12 dBV (max)
• Output impedance 600 ohm
• Connector 6.3 mm jack, unbalanced
• Output level 0 dBV (max)
• Output impedance 2.2 kohm
• (1.57 x 8.30 x 5.98 in)
• Color Charcoal
• Weight Approx. 1 kg (2.20 lb)
• Antenna length 50 mm (`bd `eb)
