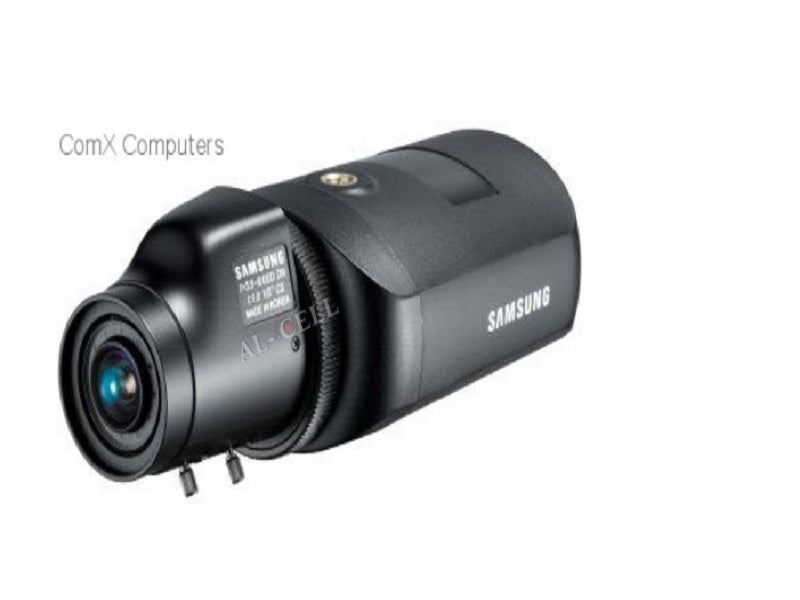

Samsung SCB-1001P analogue box camera, three-quarter view of the varifocal lens and CS mount

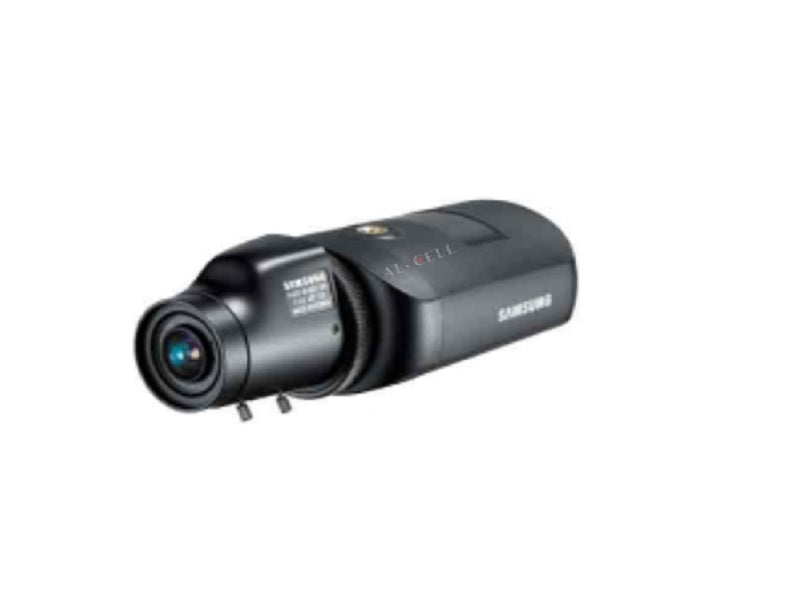

Samsung SCB-1001P analogue box camera, close-up of the lens assembly and focus screws

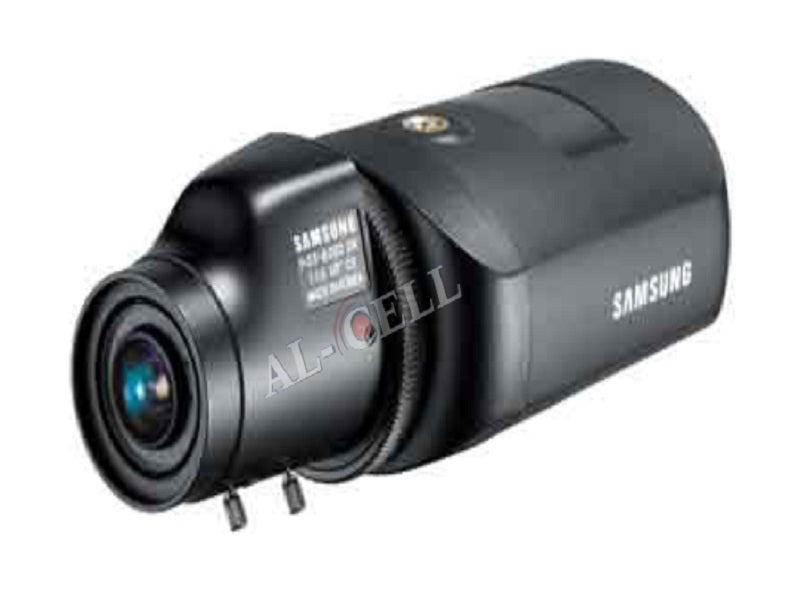

Samsung SCB-1001P analogue box camera, side view of the body badge and CS-mount lens

Samsung SCB-1001P Analog Box Camera - 600 TVL, 1/3" CCD, C/CS Mount

SAMSUNG
R 1,165
Estimated delivery 1–3 working days
In stock
FAST NATIONWIDE DELIVERY
Reliable delivery, every order
Quantity
In stock
  • Interest Free Payments available
  • Hassle Free Returns within 7 days
  • 12-month limited warranty
Flexible payments from only R 194.16 over 2–6 instalments
Price: R 1,165

Description

Design and specifications are subject to change without notice. On Screen Display English, French, German, Spanish, Italian, Chinese, Russian, Polish,.

Key features

  • Distributed BY
  • Samsung techwin CO., LTD.
  • www.samsungsecurity.com www.samsungcctv.com
  • Samsung techwin europe LTD.
  • Samsung House, 1000 Hillswood Drive, Hillswood Business Park
  • Tianjin samsung techwin opto-electronics CO., LTD.
  • No.11 Wei 6 Street. Micro-Electronic Industrial Park
  • Jingang Road, Tianjin, P.R. CHINA 300385
  • Samsung techwin america inc.
  • 100 Challenger Rd. Suite 700 Ridgefield Park, NJ 07660
  • www.samsungcctvusa.com
  • Synchronization Internal / Line Lock Internal
  • Min. Illumination 0.1 Lux, 50IRE @ F1.2
  • S / N Ratio 52dB (AGC off, Weight on)
  • Mount Type C/CS
  • Operational
  • Czech, Romanian, Serbian, Swedish, Danish, Turkish, Portuguese
  • Camera Title Off / On (Displayed 15 characters)
  • Day & Night Auto (Electrical) / Color / B/W
  • Backlight Compensation Off / BLC / HLC
  • Digital Noise Reduction 2D DNR (Off / On)
  • Privacy Masking Off / On (4 programmable zones)
  • Gain Control Off / Low / High
  • White Balance ATW / Outdoor / Indoor / Manual / AWC (1,700K° ~ 11,000K°)
  • Reverse H-Rev
  • Operating Temperature / Humidity -10°C ~ +55°C (+14°F ~ +122°F) / Less than 90% RH
  • Physical
  • RoHS Compliant Yes
  • Electrical
  • Input Voltage Dual (24V AC±10% & 12V DC±10%) 12V DC±10%
  • Dimensions (WxHxD) 99.7 × 70 × 47.3mm (3.93" x 2.75" x 1.86")

Specifications

  • I.E-1208
  • 701, Sampyeong-dong, Bundang-gu, Seongnam-si, Gyeonggi-do Korea 463-400
  • Tel : +82-70-7147-8741~8749, 8752~8760 Fax : +82-31-8018-3745
  • Chertsey, Surrey, UNITED KINGDOM KT16 OPS
  • Tel : +44-1932-45-5300 Fax : +44-1932-45-5325
  • Tel : +86-22-23887788 Fax : +86-22-23887788
  • Toll Free : +1-877-213-1222 Direct : +1-201-325-6920
  • Fax : +1-201-373-0124
  • Dimensions Unit : mm (inch)
  • Scb-1001p scb-1001pd
  • Imaging Device 1/3" Super HAD CCD II
  • Total Pixels 795(H) x 596(V)
  • Effective Pixels 752(H) x 582(V)
  • Scanning System 2 : 1 Interlace
  • Frequency H : 15.625KHz / V : 50Hz
  • Horizontal Resolution Color : 600 TV lines
  • Video Output CVBS : 1.0 Vp-p / 75`d9 composite
  • Lens
  • Lens Type Manual / Auto Iris (DC)
  • Contrast Enhancement SSDR (Off / On)
  • Electronic Shutter Speed 1/50 ~ 1/120,000 sec
  • Communication Coaxial Control (SPC-300 Compatible)
  • Protocol Coax : Pelco-C (Coaxitron)
  • Power Consumption 2.3W 1.2W
  • Color / Material Black / Plastic
  • Weight 120g (0.26lb) 100g (0.22lb)

Frequently Bought Together Frequently bought

Product Information

Warranty 12-month limited warranty
Categories Samsung / Samsung Security & Surveillance / Security & Surveillance / Security Cameras / Specials
Brand Samsung
Model SCB-1001P
Imaging Device 1/3" Super HAD CCD II
Total Pixels 795(H) x 596(V)
Effective Pixels 752(H) x 582(V)
Resolution 600 TV lines (Color)
Min Illumination 0.1 Lux @ F1.2
S/N Ratio 52dB
Lens Mount C/CS
Operating Temperature -10°C to +55°C
Dimensions 99.7 x 70 x 47.3 mm
Weight 120g
Power Input 24V AC / 12V DC
Power Consumption 2.3W
Material Black / Plastic
