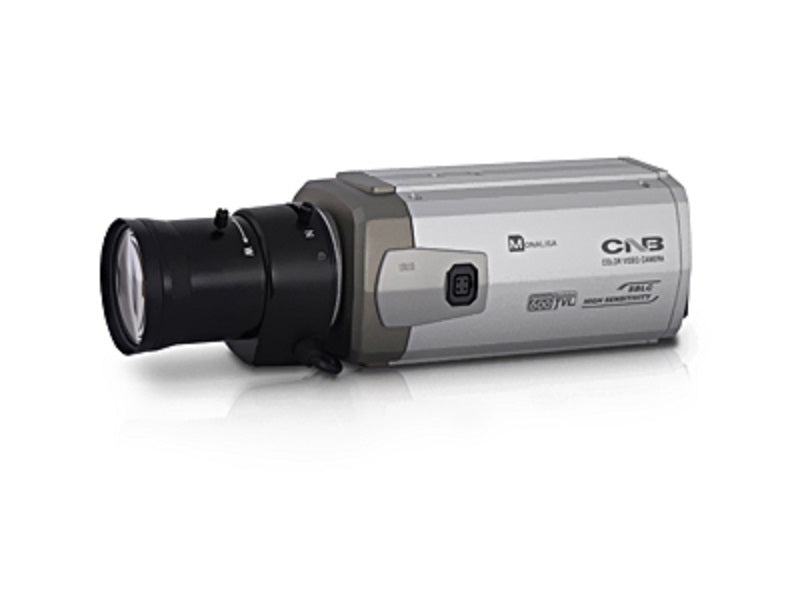

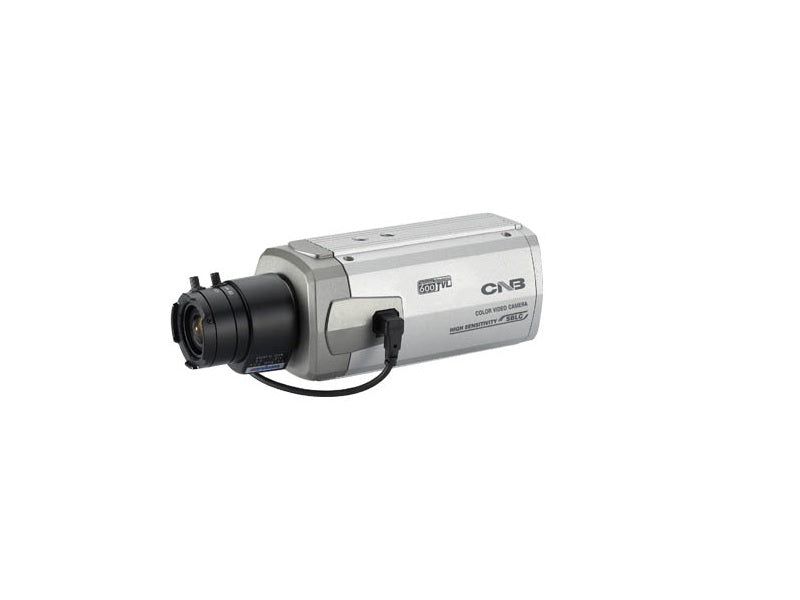

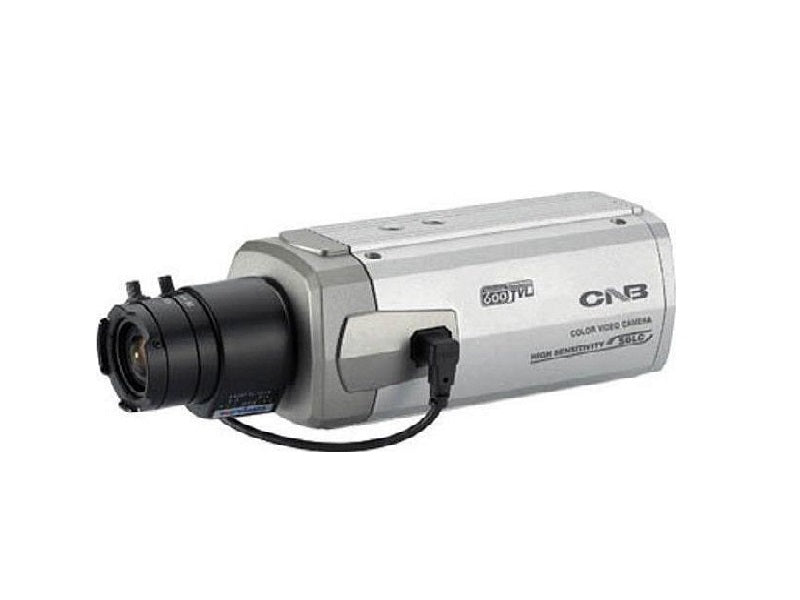

CNB Box Camera 600TVL WDR - 6-60mm Zoom Lens, TDN, DNR, with Bracket

Capture detailed footage across a wide range of lighting conditions with the CNB box camera and 6-60mm zoom lens. Built around a 1/3" high sensitivity CCD sensor delivering 600 TV lines of resolution, this box camera and lens combination is designed for demanding surveillance environments where image clarity matters.

Wide dynamic range (WDR) processing helps balance bright and dark areas within the same scene, while true day/night (TDN/ICR) switching and a minimum illumination of just 0.005 Lux (B/W) keep the camera useful well after dark. The included mounting bracket makes for a straightforward installation on walls or ceilings.

Key features

• 1/3" high sensitivity CCD sensor
• 600 TV lines resolution
• 6-60mm zoom lens for flexible framing
• WDR (wide dynamic range) processing
• TDN (ICR) true day/night switching
• Minimum illumination of 0.005 Lux (B/W)
• DNR, OSD, AGC, SBLC and flickerless functions
• Motion detection, privacy zone, and mirror function
• RS-485 (Pelco-D, CNB) control interface

Ideal for

• Sites with challenging or mixed lighting conditions
• Installations requiring precise zoom framing via the 6-60mm lens
• Professional CCTV systems with RS-485 PTZ-style control
• Retail, warehouse, and perimeter surveillance

Good to know

This box camera is supplied with its 6-60mm zoom lens and mounting bracket, giving installers a complete, ready-to-configure unit rather than needing to source a lens separately. The RS-485 interface with Pelco-D and CNB protocol support allows it to integrate into existing professional surveillance control systems and NVR/DVR setups already in place.
