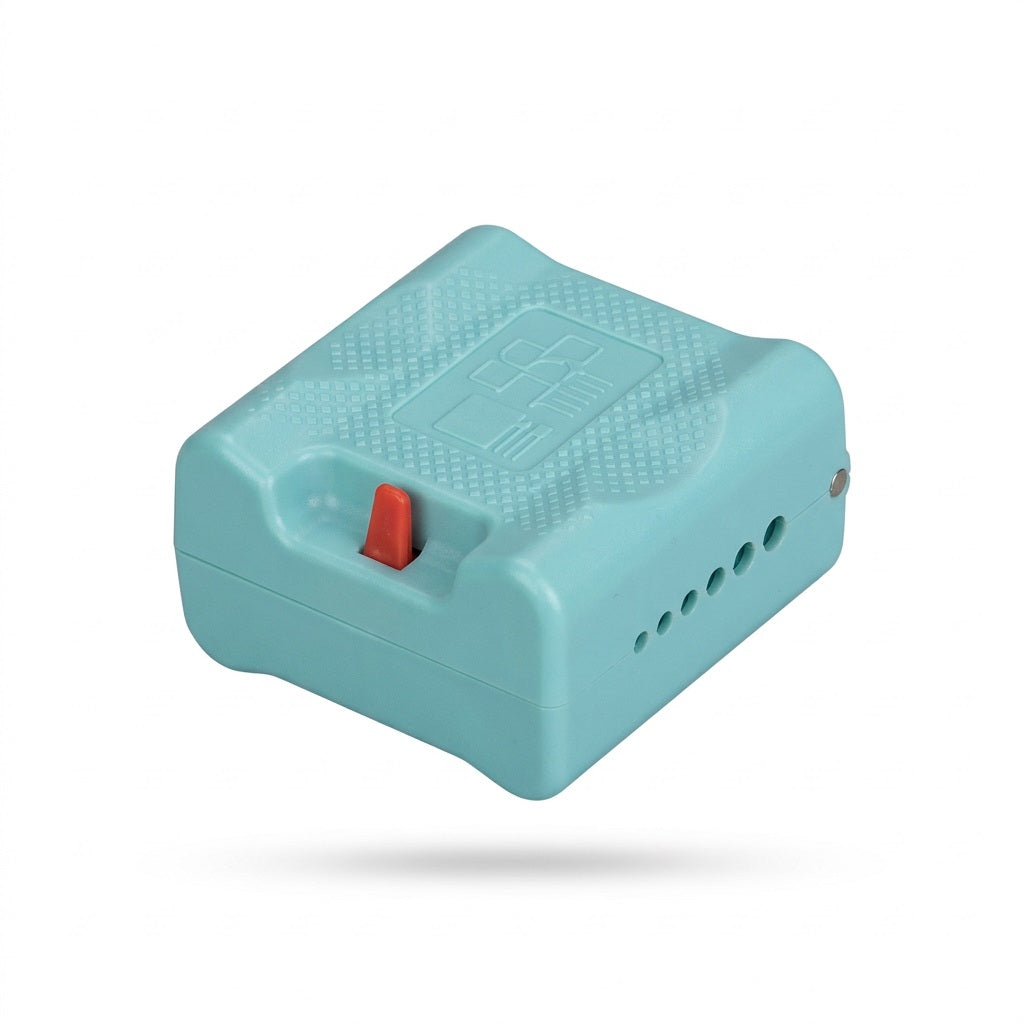

COMPTYCO A-1233 Fiber Optic Loose Tube

COMPTYCO A-1233 Fiber Optic Loose Tube Stripper – Buffer Tube Cable Stripping & Mid-Span Access Tool
Short Description (Key Features)
Precision Longitudinal Stripping: Designed for quick and controlled longitudinal stripping of fiber optic loose buffer tubes, helping technicians save time during fibre installation and maintenance.
6 Caliber Cable Grooves: Features six dedicated circular grooves for handling smaller loose tubes and cable diameters from 1.2 mm to 3.3 mm.
Super Alloy Double Blades: Equipped with upper and lower alloy blades designed to produce clean, precise longitudinal cuts when correctly positioned and operated.
Secure Locking Mechanism: Built-in auxiliary locking mechanism helps keep the cable firmly positioned in the selected groove during stripping.
Six Precision Diameter Positions: Multiple caliber options provide flexibility for working with different small-diameter loose tubes using a single compact tool.
Integrated Spare Blade Storage: Internal storage slot provides a convenient place to keep replacement blades readily accessible during field work.
Compact & Ultra-Lightweight: Measuring just 51 × 50 × 30 mm and weighing approximately 40 g, the tool is easy to carry and handle.
Durable Field-Ready Construction: Compact construction is designed for convenient repeated use in fibre optic installation, repair, and maintenance applications.
Long Product Description

The COMPTYCO A-1233 Fiber Optic Loose Tube Stripper is a compact precision tool designed for longitudinal stripping and mid-span access of small-diameter loose buffer tubes. It enables fibre technicians to open the protective tube in a controlled manner to access the optical fibres inside during installation, splicing, repair, and maintenance work.

Featuring six circular caliber grooves, the A-1233 accommodates loose tube diameters from 1.2 mm to 3.3 mm. The multiple groove design allows technicians to select the appropriate diameter position for the cable being worked on, providing better positioning and control during the stripping process.

Precision Longitudinal Stripping

The A-1233 is specifically designed for longitudinal tube opening, allowing technicians to make a controlled incision along the length of the loose buffer tube. This makes it suitable for applications where access to internal fibres is required without unnecessarily removing the complete protective tube.

6-Caliber Diameter Design

The tool provides six dedicated circular grooves covering the following diameter ranges:

1.2–1.5 mm
1.5–1.8 mm
1.8–2.1 mm
2.1–2.5 mm
2.5–2.9 mm
2.9–3.3 mm

This provides a total working range of 1.2–3.3 mm, making the A-1233 particularly suitable for smaller loose buffer tubes and cable preparation applications.

Alloy Double-Blade Construction

The A-1233 uses upper and lower alloy blades to provide controlled cutting performance. The double-blade configuration is designed to produce a neat longitudinal incision when the correct caliber is selected and the tool is used correctly.

Auxiliary Locking Mechanism

An integrated locking mechanism helps secure the cable inside the selected circular groove. This helps maintain proper alignment and reduce unwanted cable movement while the tube is being opened.

Built-In Spare Blade Storage

The tool includes an integrated spare blade storage slot, allowing replacement blades to be conveniently stored within the tool and kept readily available for field maintenance.

Compact and Lightweight Design

With dimensions of only 51 × 50 × 30 mm and a weight of approximately 40 g, the COMPTYCO A-1233 is exceptionally compact and easy to carry. Its pocket-sized design makes it practical for fibre technicians who need a dedicated loose tube stripping tool without adding significant weight to their toolkit.

Key Applications
Small-diameter loose tube stripping
Fibre optic buffer tube opening
Mid-span fibre access
FTTH installation and maintenance
Fibre optic cable preparation
Fibre splicing preparation
Optical cable repair
Telecommunications network maintenance
Field fibre technician toolkits
Technical Specifications
Parameter / Feature Specification
Brand COMPTYCO
Model A-1233
Product Type Fiber Optic Loose Tube Stripper / Mid-Span Access Tool
Stripping Method Longitudinal Stripping
Overall Stripping Range 1.2–3.3 mm
Number of Calibers 6 Circular Grooves
Caliber 1 1.2–1.5 mm
Caliber 2 1.5–1.8 mm
Caliber 3 1.8–2.1 mm
Caliber 4 2.1–2.5 mm
Caliber 5 2.5–2.9 mm
Caliber 6 2.9–3.3 mm
Blade Type Upper & Lower Double Blades
Blade Material Alloy
Locking Mechanism Integrated Auxiliary Lock
Spare Blade Storage Built-In
Product Dimensions 51 × 50 × 30 mm
Product Weight Approx. 40 g
Packaging Type Retail Box with Clear Display Window
Package Dimensions Approx. 156 × 81 × 37 mm
Packaged Weight Approx. 60 g
Hardware & Design Highlights
6 precision circular grooves
1.2–3.3 mm working diameter range
Upper and lower alloy blades
Integrated auxiliary locking mechanism
Built-in spare blade storage slot
Compact 51 × 50 × 30 mm body
Ultra-lightweight approximately 40 g design
Designed for longitudinal loose tube opening and mid-span fibre access
What’s in the Box
1 × COMPTYCO A-1233 Fiber Optic Loose Tube Stripper
Retail packaging box with clear display window
