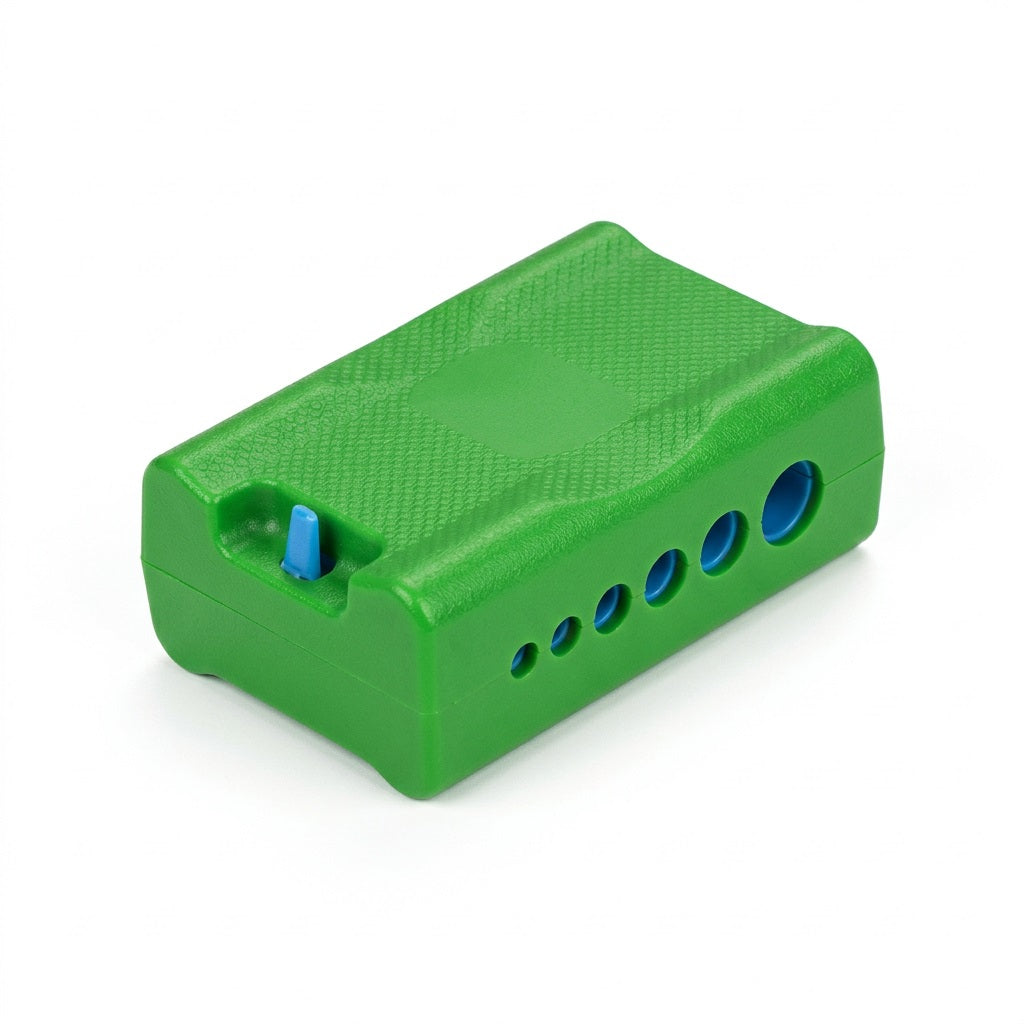

COMPTYCO A-3511 Fiber Optic Loose Tube Stripper – Buffer Tube Cable Stripping & Mid-Span Access Tool
Short Description (Key Features)
Precision Longitudinal Stripping: Designed for quick and efficient longitudinal stripping of fiber optic loose buffer tubes, allowing technicians to access internal fibers with greater control.
6 Circular Cable Grooves: Features six precision-sized grooves for handling loose tubes and cable diameters from 3.5 mm to 11 mm.
Super Alloy Double Blades: Equipped with sharp upper and lower super alloy blades for clean, controlled longitudinal cuts and consistent stripping performance.
Secure Cable Locking Mechanism: Integrated locking mechanism helps hold the cable securely in the selected groove and maintain proper alignment during operation.
Six Clearly Defined Calibers: Multiple diameter positions provide flexibility for working with different loose tube sizes without requiring separate stripping tools.
Integrated Spare Blade Storage: Built-in storage compartment keeps replacement blades conveniently accessible for field servicing and maintenance.
Compact & Lightweight: Measuring just 82 × 52 × 30 mm and weighing approximately 60 g, the tool is easy to carry and handle during field work.
Durable Construction: Made from durable materials and designed for repeated use in fibre optic installation, maintenance, and cable preparation applications.
Long Product Description

The COMPTYCO A-3511 Fiber Optic Loose Tube Stripper is a compact precision tool designed for longitudinal stripping and mid-span access of loose buffer tubes in fibre optic cables. It allows technicians to open the protective tube cleanly and efficiently to access the optical fibres inside during installation, splicing, repair, and maintenance work.

The A-3511 incorporates six circular cable grooves, covering diameter ranges from 3.5 mm to 11 mm. This multi-caliber design allows one tool to accommodate different loose tube sizes while maintaining proper positioning during the stripping process.

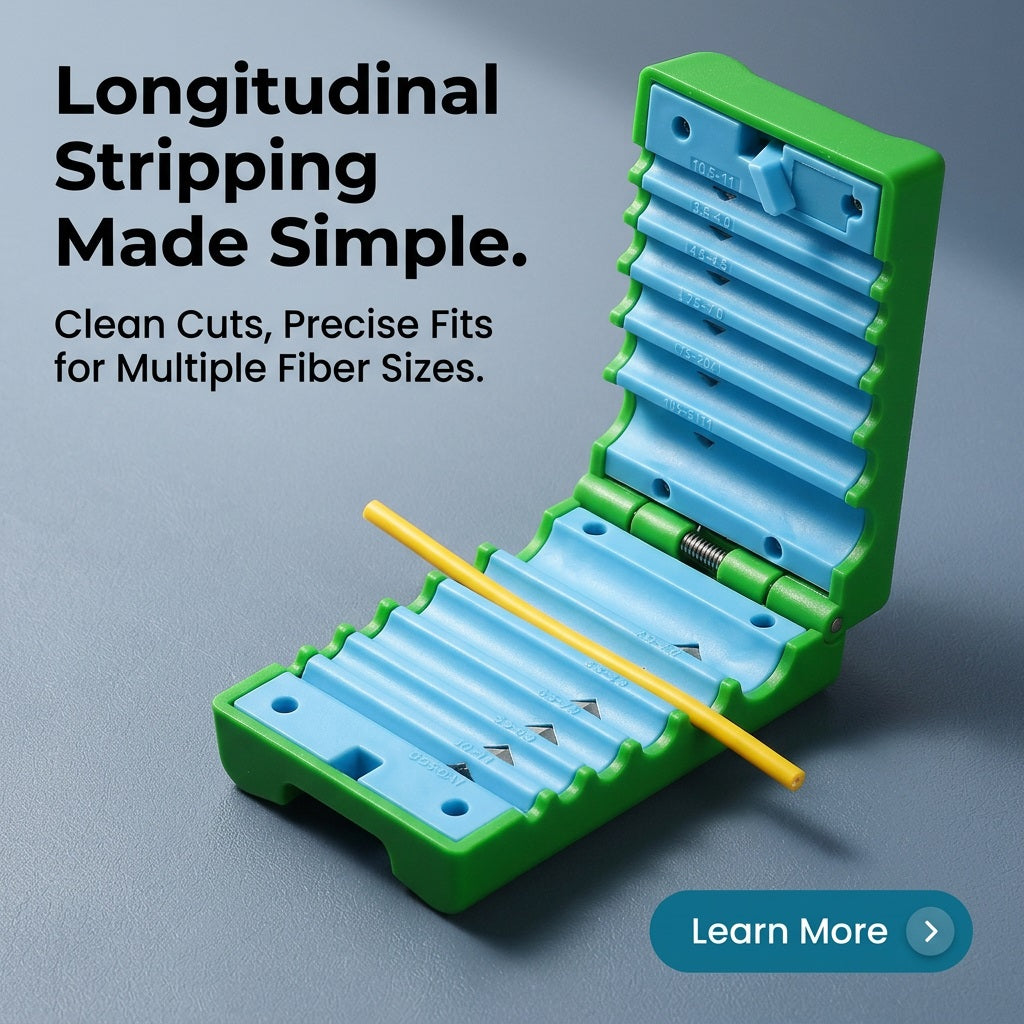

Precision Longitudinal Stripping

The tool is specifically designed to create a controlled longitudinal incision along the loose buffer tube. This makes it suitable for applications where technicians need to access internal fibres without unnecessarily removing the entire tube.

Six Cable Diameter Calibers

The six dedicated grooves provide different working positions for various cable diameters:

3.5–4.0 mm
4.0–4.5 mm
5.5–6.0 mm
6.5–7.0 mm
7.5–8.0 mm
10.5–11.0 mm

This range provides broad compatibility for different loose tube and fibre optic cable preparation requirements.

Super Alloy Double-Blade Design

The A-3511 uses upper and lower super alloy blades to provide sharp and consistent cutting performance. The double-blade configuration helps produce a clean longitudinal opening when the tool is correctly positioned and operated.

Secure Locking Mechanism

An integrated auxiliary locking mechanism helps secure the cable within the selected groove. This helps reduce cable movement and maintain alignment while the tube is being opened.

Built-In Spare Blade Storage

For convenient field maintenance, the tool includes an integrated spare blade storage slot, allowing replacement blades to be kept with the tool and readily available when required.

Compact and Portable

With dimensions of only 82 × 52 × 30 mm and a weight of approximately 60 g, the COMPTYCO A-3511 is easy to carry in a fibre technician`s toolkit. Its compact design makes it particularly practical for field installations, maintenance work, and cable preparation tasks.

Key Applications
Fibre optic loose tube stripping
Buffer tube opening and preparation
Mid-span access applications
FTTH installation and maintenance
Fibre optic cable splicing preparation
Optical cable repair and maintenance
Telecommunications network construction
Fibre optic field technician toolkits
Technical Specifications
Parameter / Feature Specification
Brand COMPTYCO
Model A-3511
Product Type Fiber Optic Loose Tube Stripper / Mid-Span Access Tool
Stripping Method Longitudinal Stripping
Stripping Range 3.5–11 mm
Number of Calibers 6 Circular Grooves
Caliber 1 3.5–4.0 mm
Caliber 2 4.0–4.5 mm
Caliber 3 5.5–6.0 mm
Caliber 4 6.5–7.0 mm
Caliber 5 7.5–8.0 mm
Caliber 6 10.5–11.0 mm
Blade Type Upper & Lower Double Blades
Blade Material Super Alloy
Locking Mechanism Integrated Auxiliary Lock
Spare Blade Storage Built-In
Product Dimensions 82 × 52 × 30 mm
Product Weight Approx. 60 g
Packaging Type Retail Box with Clear Display Window
Package Dimensions Approx. 156 × 81 × 37 mm
Packaged Weight Approx. 80 g
Hardware & Design Highlights
6 precision cable grooves for multiple loose tube diameters
3.5–11 mm overall working range
Upper and lower super alloy blades
Auxiliary cable locking mechanism
Built-in spare blade storage compartment
Compact 82 × 52 × 30 mm design
Lightweight approximately 60 g construction
Designed for longitudinal loose tube opening and mid-span fibre access
What’s in the Box
1 × COMPTYCO A-3511 Fiber Optic Loose Tube Stripper
Retail packaging box with clear display window
