COMPTYCO AUA-30 30mW Fiber Optic Visual

COMPTYCO AUA-30 30mW Fiber Optic Visual Fault Locator – 650nm VFL Pen for FTTH & Fibre Cable Testing

The COMPTYCO AUA-30 30mW Fiber Optic Visual Fault Locator (VFL) is a professional fibre optic testing tool designed for FTTH installation, telecom maintenance, fibre cable troubleshooting and network fault detection. With a powerful 650nm red laser output of more than 30mW, the AUA-30 helps technicians quickly identify fibre breaks, bends, damaged sections and faulty connections over long-distance optical fibre lines.

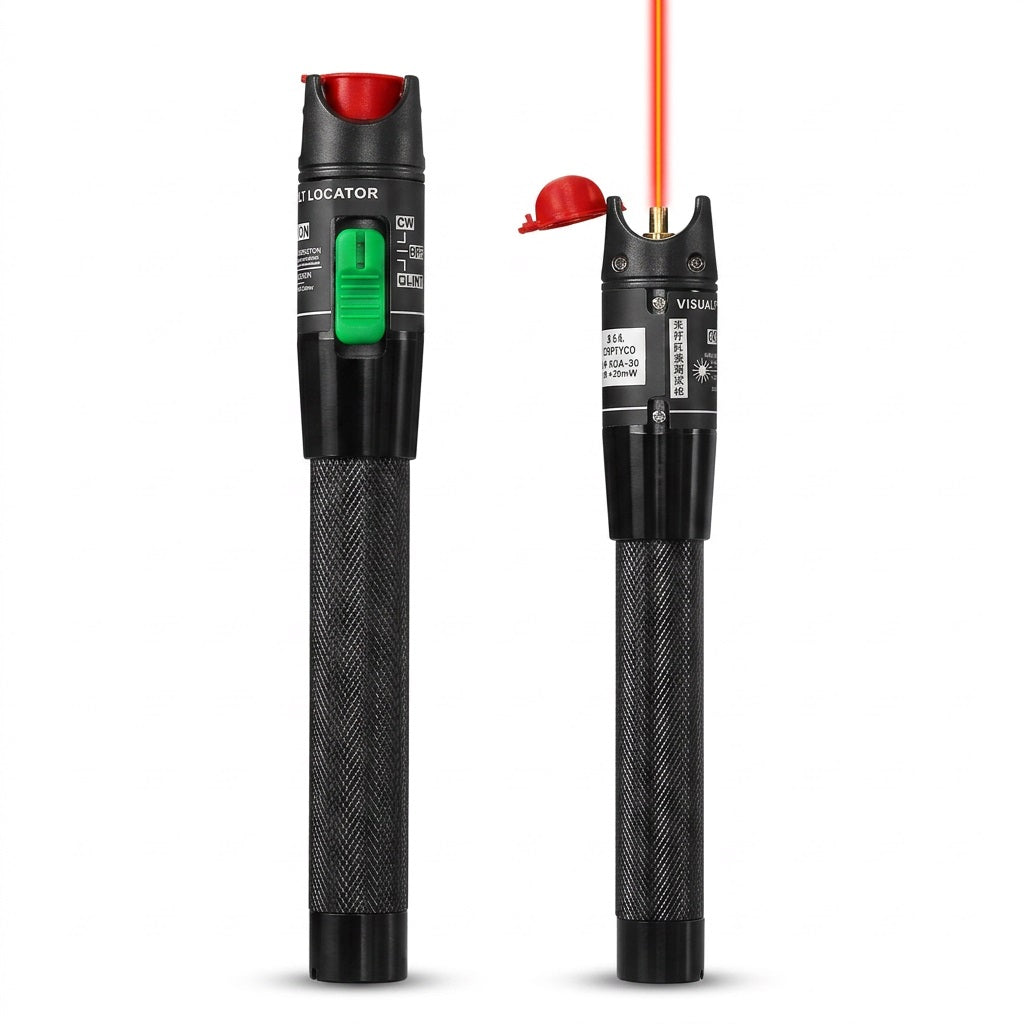

Its rugged aluminium/metal body, universal 2.5mm connector, dual operating modes and replaceable ceramic core make the AUA-30 a practical and durable solution for professional field technicians.

KEY FEATURES & BENEFITS
???? Powerful 30mW Red Laser Output

The AUA-30 provides a >30mW optical output at 650nm ±10nm, producing a bright visible red beam that can be used to trace fibre routes and locate faults along optical fibre cables.

Ideal for identifying:

Fibre breaks
Excessive bends
Damaged fibre sections
Incorrect fibre connections
Light leakage
Fibre continuity issues
???? Universal 2.5mm Fibre Connector

The built-in 2.5mm universal adapter supports commonly used:

SC connectors
FC connectors
ST connectors

For 1.25mm LC interfaces, an optional FC-to-LC adapter can be used.

???? CW & GLINT Flashing Modes

The AUA-30 features two selectable light modes:

CW – Continuous Wave: Constant red laser output for continuous fibre tracing.
GLINT – Flashing: Pulsed flashing output for easier fault identification.
OFF: Turns the unit off.

The convenient sliding switch makes changing between operating modes quick and easy.

????️ Rugged Metal Construction

Built with a wear-resistant aluminium/metal body, the AUA-30 is designed for demanding field environments. The knurled anti-slip grip provides a secure hold while performing fibre testing and maintenance.

???? Replaceable Ceramic Core

The removable 2.5mm metal head allows access to the internal 7mm ceramic core, which can be replaced when required. This helps extend the service life of the VFL and simplifies maintenance.

???? Long Battery Runtime

The AUA-30 operates using 2 × AA alkaline batteries and provides a battery life of more than 9 hours, making it suitable for extended fibre installation and troubleshooting work.

TECHNICAL SPECIFICATIONS
Specification Details
Product Name Fiber Optic Visual Fault Locator
Model COMPTYCO AUA-30
Optical Output Power >30mW
Output Wavelength 650nm ±10nm
Connector 2.5mm Universal
Compatible Connectors SC / FC / ST
LC Compatibility Optional FC-to-LC Adapter Required
Light Modes CW / GLINT / OFF
Body Material Aluminium / Metal
Ceramic Core Replaceable 7mm Ceramic Core
Operating Temperature 0°C to +60°C
Storage Temperature -20°C to +70°C
Battery 2 × AA Alkaline Batteries
Battery Life >9 Hours
Device Dimensions 17.5 × 2cm
Device Weight Approx. 70g
Package Weight Approx. 110g
IDEAL APPLICATIONS

The COMPTYCO AUA-30 Fiber Optic Visual Fault Locator is suitable for:

FTTH fibre optic installation
Fibre optic cable testing
Telecom network maintenance
Fibre continuity testing
Fibre break detection
Fibre bend and damage identification
Patch cord testing
Optical network troubleshooting
Fibre optic splicing preparation
Data communication network maintenance
Professional field technicians
PACKAGE CONTENTS

The COMPTYCO AUA-30 package includes:

1 × COMPTYCO AUA-30 30mW Fiber Optic Visual Fault Locator
1 × Protective Carrying Bag / Pouch
1 × Lanyard Strap
1 × Replacement Ceramic Core
1 × Instruction Manual & Qualification Certificate
1 × Packaging Box
PROFESSIONAL FIBRE FAULT DETECTION TOOL

The COMPTYCO AUA-30 30mW Fiber Optic Visual Fault Locator provides a powerful and portable solution for locating faults in optical fibre networks. Its 650nm red laser, >30mW output, universal 2.5mm connector, CW/GLINT modes, rugged metal construction and replaceable ceramic core make it a useful tool for FTTH installers, fibre technicians and telecommunications professionals.
