COMPTYCO CFS-3 3-Hole Fiber Optic Stripping Pliers – Precision Fibre Stripper for FTTH & Fusion Splicing
Short Description (Key Features)
3-Hole Segmented Fibre Stripping: Features three precision stripping apertures for multi-stage fibre preparation without changing tools, enabling fast and efficient removal of protective layers.
High-Carbon Tool Steel Construction: Manufactured from durable high-carbon tool steel with polished and blackened surface treatment for improved wear resistance, corrosion protection and long-term durability.
Precision Stripping Performance: Designed for clean and controlled stripping while helping prevent coating residue and damage to the underlying optical fibre.
Multi-Stage Fibre Preparation: Supports stripping of approximately 2–3mm outer jackets, 900`ecm/0.9mm protective layers, and 250`ecm coating down to 125`ecm bare glass fibre.
Adjustable Jaw Tension: Built-in jaw adjustment screw allows technicians to fine-tune the stripping aperture according to the fibre and coating requirements. An Allen key is included.
Ergonomic Anti-Skid Handle: Yellow anti-slip handles provide a secure and comfortable grip, helping reduce hand fatigue during repetitive FTTH and fusion-splicing work.
Spring-Assisted Operation: Integrated return spring provides smooth jaw opening and supports efficient one-handed operation during repeated stripping tasks.
Integrated Safety Lock: Opening and closing lock buckle keeps the pliers securely closed during storage and transportation, helping prevent accidental injury.
Compact & Lightweight: Measuring approximately 16.5 × 6.8cm and weighing only 130g, the CFS-3 is easy to carry in a technician`s toolbox.
Ideal for FTTH & Fusion Splicing: Suitable for fibre preparation, cable termination, fusion splicing, network installation and fibre maintenance applications.
Long Product Description

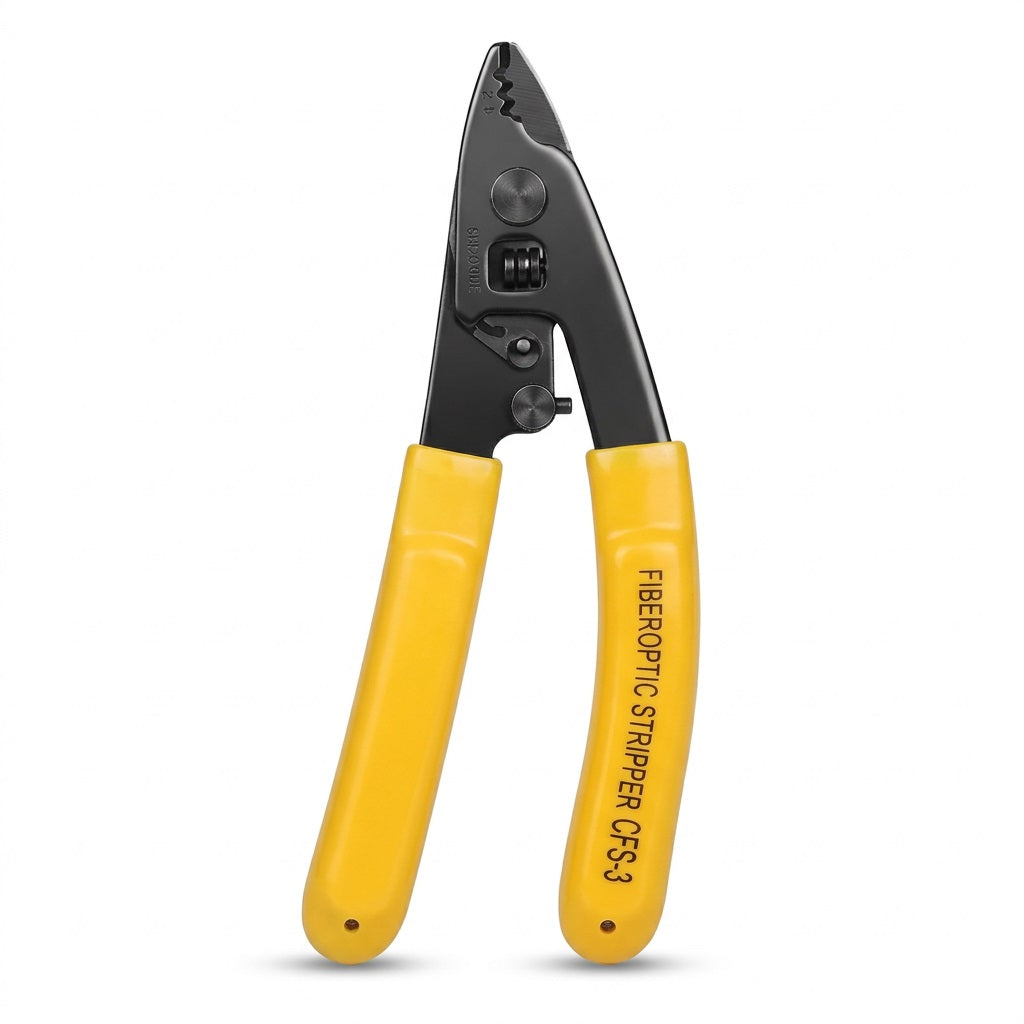

The COMPTYCO CFS-3 3-Hole Optical Fiber Stripping Pliers are precision fibre preparation tools designed for FTTH installation, fibre optic maintenance, cable termination and fusion splicing. With three dedicated stripping apertures integrated into a single compact tool, technicians can remove different protective fibre layers quickly without switching between multiple stripping tools.

Constructed from high-carbon tool steel, the CFS-3 features a polished and blackened surface finish designed to provide improved wear resistance, corrosion protection and long-term durability. The precision-machined stripping apertures allow controlled removal of fibre coatings while helping protect the delicate optical fibre underneath.

3-Hole Segmented Fibre Stripping Design

The CFS-3 provides three stripping stages for preparing optical fibre:

1. Large Hole – Outer Protective Jacket

The large aperture is designed for stripping approximately 2–3mm optical fibre outer protective jackets or soft protective sleeves, exposing the next layer of the fibre assembly.

2. Intermediate Hole – 900`ecm Protective Layer

The intermediate aperture is designed for stripping approximately 900`ecm / 0.9mm outer protective layers, providing access to the smaller fibre coating underneath.

3. Small Hole – Primary Coating

The small aperture is designed for stripping the 250`ecm coating down to 125`ecm, exposing the bare glass optical fibre for subsequent cleaving and fusion splicing.

Adjustable Jaw Mechanism

The CFS-3 incorporates a fine-adjustment jaw screw that allows technicians to adjust the stripping aperture according to the fibre coating and operating requirements.

Clockwise rotation: Increases the aperture.
Counter-clockwise rotation: Reduces the aperture.

The included hexagonal Allen key makes fine adjustments simple and convenient.

Durable High-Carbon Tool Steel Construction

The stripping body is manufactured from high-carbon tool steel and finished with polishing and blackening treatment. This construction provides a strong and durable working surface suitable for repeated fibre preparation tasks while helping protect the tool against wear and corrosion.

Ergonomic Anti-Skid Handle

The yellow anti-skid handles provide a comfortable and secure grip during operation. The ergonomic design helps maintain control of the tool and can reduce hand fatigue during repetitive fibre stripping work.

Return Spring & Safety Lock

An integrated return spring assists the jaws in reopening after each stripping operation, supporting faster and smoother repeated use.

The opening and closing lock buckle allows the tool to be secured in the closed position when not in use. This makes the CFS-3 safer and more convenient to carry and store inside a technician`s toolbox.

Key Applications
FTTH fibre optic installation
Fibre optic cable preparation
Fusion splicing preparation
Fibre termination
Optical fibre connector preparation
Single-mode fibre preparation
Fibre network installation
Fibre network maintenance
Telecom and broadband installations
Fibre repair and troubleshooting
Field technician applications
Technical Specifications
Parameter / Feature Specification
Brand COMPTYCO
Model CFS-3
Product Type 3-Hole Optical Fibre Stripping Pliers
Main Material High-Carbon Steel / Tool Steel
Surface Treatment Polishing & Blackening Treatment
Handle Material Yellow Anti-Skid Handle
Large Stripping Hole Approx. 2–3mm Protective Sleeve / Outer Jacket
Intermediate Stripping Hole Approx. 900`ecm / 0.9mm Protective Layer
Small Stripping Hole 250`ecm to 125`ecm Fibre Coating
Bare Fibre Size 125`ecm
Adjustment Mechanism Jaw Adjustment Screw
Adjustment Tool Hexagonal Allen Key Included
Safety Features Opening & Closing Lock Buckle
Return Mechanism Labour-Saving Return Spring
Product Dimensions Approx. 16.5 × 6.8cm
Unfolded Width Approx. 9.2cm
Product Weight Approx. 130g
Hardware & Design Highlights
Precision three-hole stripping jaw
High-carbon tool steel construction
Polished and blackened surface finish
Adjustable jaw aperture
Included Allen key
Yellow anti-skid ergonomic handles
Integrated return spring
Opening and closing safety lock
Compact handheld construction
Lightweight 130g design
What’s in the Box
1 × COMPTYCO CFS-3 3-Hole Fibre Optic Stripping Pliers
1 × Hexagonal Allen Key for Jaw Aperture Adjustment
1 × Product Packaging Box

Packaging Dimensions: Approx. 17.5 × 7.7 × 1.2cm
Weight with Packaging: Approx. 140g
