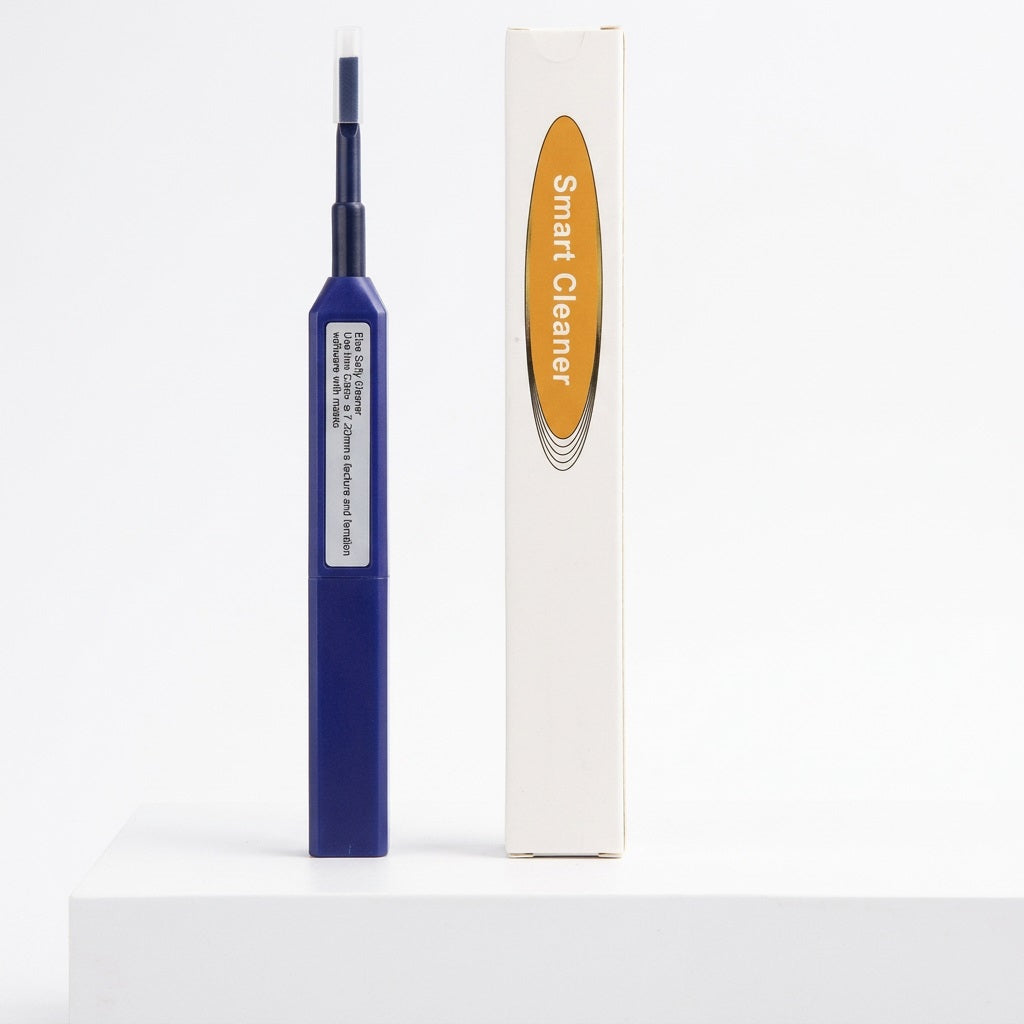

COMPTYCO CL2 Fiber Optic Cleaning Pen

COMPTYCO AUA-CL2 Fiber Optic Cleaning Pen – 1.25mm LC/MU One-Click Fibre Cleaner
Short Description (Key Features)
1.25mm Fibre Optic Cleaner: Specifically designed for cleaning LC and MU fibre optic connectors, adapters and ferrules.
Over 800 Cleaning Cycles: Provides more than 800 cleaning uses with an automatic cleaning tape advancement system.
Up to 99% Contaminant Removal: Effectively removes dust, oil, stains and other common fibre end-face contaminants.
Alcohol-Free Cleaning: Cleans fibre connector end-faces without requiring alcohol or additional cleaning solutions.
180° Rotary Cleaning Action: The cleaning tip rotates 180° during operation to provide effective end-face cleaning.
Audible Click Indicator: A clear clicking sound indicates when the cleaning cycle has been completed.
Anti-Static Construction: Made from anti-static resin with dust-free cleaning ribbon to help minimise static-related particle re-attraction.
Extendable Nozzle: Designed to access recessed connectors and high-density patch panels.
Transparent Observation Window: Allows users to monitor the remaining cleaning ribbon.
Compact & Portable: Ideal for FTTH installers, telecom technicians and fibre network maintenance professionals.
Long Product Description

The COMPTYCO AUA-CL2 1.25mm Fiber Optic Cleaning Pen is a professional one-click cleaning tool designed for maintaining LC and MU fibre optic connectors, adapters and ferrules. Its compact design makes it suitable for fibre technicians working on FTTH installations, patch panels, distribution boxes and telecommunications networks.

The cleaner provides a fast and convenient way to remove common contaminants from fibre end-faces, helping maintain reliable optical connections and minimise issues associated with dirty or contaminated connectors.

One-Click 180° Cleaning Action

The AUA-CL2 uses a simple push-to-clean operation. When activated, the cleaning tip rotates 180° while fresh cleaning material is automatically advanced for the next cleaning cycle.

An audible click indicates that the cleaning action has been completed, providing a straightforward and repeatable cleaning process for field technicians.

Designed for 1.25mm LC & MU Connectors

The 1.25mm cleaning tip is designed for use with LC and MU connectors, including both male and female adapter/ferrule applications.

Its extendable nozzle design helps technicians access connectors positioned inside recessed adapters, crowded patch panels and high-density fibre distribution equipment.

Alcohol-Free Fibre Cleaning

The AUA-CL2 is designed to remove up to 99% of stains, oil, dust and other end-face debris without requiring alcohol or wet cleaning solutions. This provides a convenient dry-cleaning option for routine fibre connector maintenance.

Anti-Static Design

Constructed from anti-static resin and equipped with dust-free cleaning ribbon, the cleaner is designed to reduce static-related dust attraction and help prevent contaminants from being reintroduced to the cleaned fibre surface.

High-Capacity Cleaning System

With a cleaning capacity of more than 800 uses per pen, the AUA-CL2 is suitable for repeated maintenance work across fibre installations and network infrastructure.

A transparent observation window allows users to check the condition and remaining length of the internal cleaning ribbon.

Key Applications
FTTH installation and maintenance
LC fibre connector cleaning
MU fibre connector cleaning
Fibre patch panel maintenance
Fibre distribution box maintenance
Data centre fibre infrastructure
Telecommunications networks
Fibre optic jumper maintenance
Routine fibre end-face cleaning
Technical Specifications
Specification Details
Product Type Fibre Optic Cleaning Pen
Model COMPTYCO AUA-CL2
Cleaning Tip Size 1.25mm
Connector Application LC / MU
Application Male & Female Adapters/Ferrules
Cleaning Capacity More than 800 uses
Cleaning Rate Up to 99% contaminant removal
Cleaning Method Dry / Alcohol-Free
Cleaning Action 180° Rotary
Material Anti-Static Resin
Cleaning Ribbon Dust-Free
Extendable Nozzle Yes
Observation Window Yes
Dimensions 175 × 18 × 18 mm
Hardware & Design Highlights
1.25mm precision cleaning tip
LC/MU connector compatibility
One-click operation
180° rotary cleaning mechanism
Audible completion click
Automatic cleaning ribbon advancement
Anti-static resin construction
Extendable nozzle for recessed connectors
Transparent cleaning ribbon observation window
More than 800 cleaning cycles
Compact technician-friendly design
What`s in the Box
1 × COMPTYCO AUA-CL2 1.25mm Fiber Optic Cleaning Pen
