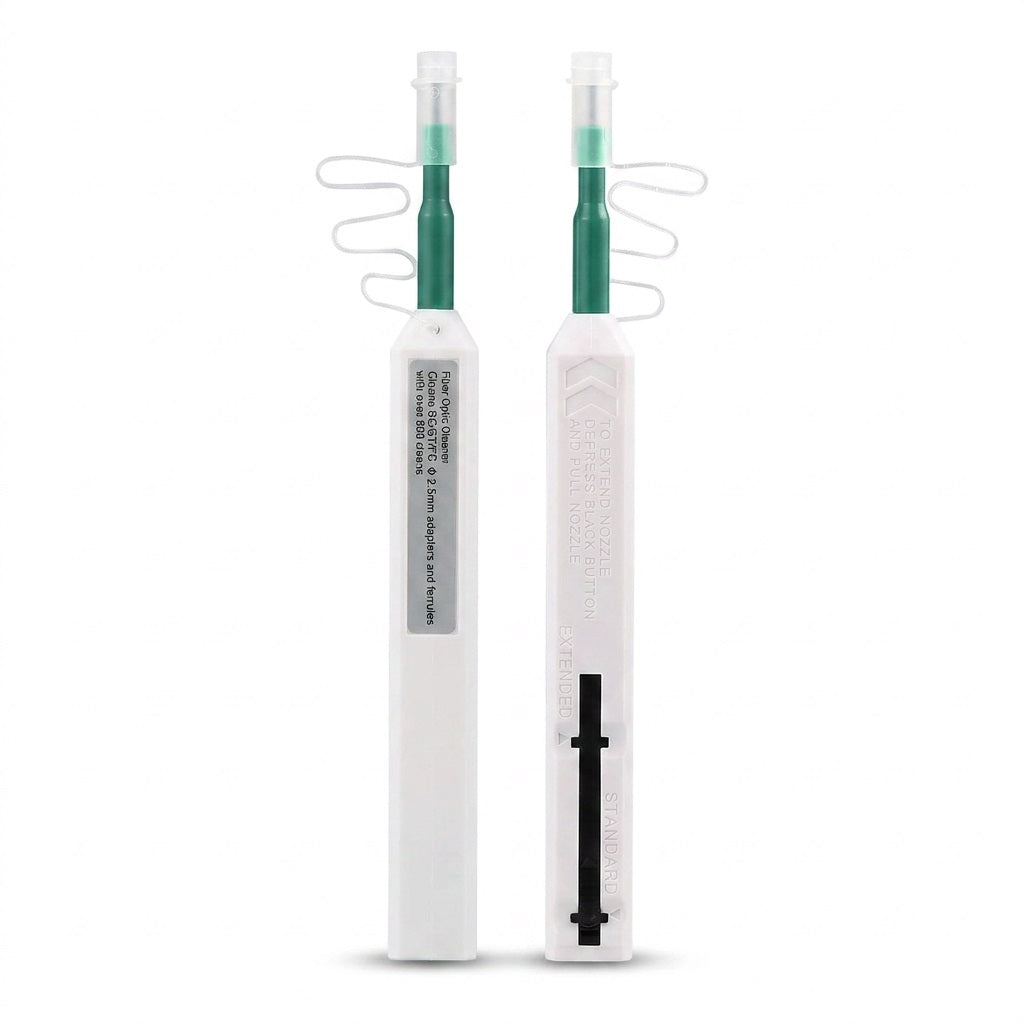

COMPTYCO Green CL1 Fiber Optic Cleaning

COMPTYCO AUA-CL1 Fiber Optic Cleaning Pen – 2.5mm SC, ST, FC & E2000 One-Click Connector Cleaner

Keep your fibre optic connectors clean and maintain reliable optical connections with the COMPTYCO AUA-CL1 Fiber Optic Cleaning Pen. Designed for 2.5mm ferrule fibre optic connectors, this professional one-click cleaner is suitable for SC, ST, FC and E2000 connectors and can be used on both male connector end-faces and female bulkhead adapters.

The AUA-CL1 uses a dry cleaning system to remove dust, oil and other contaminants without requiring alcohol or cleaning wipes. With over 800 cleaning cycles, an automatic cleaning wire advance system, 180° rotary cleaning action and an extendable nozzle, it is an ideal maintenance tool for FTTH installers, fibre technicians, telecom networks and high-density patch panels.

KEY FEATURES & BENEFITS
???? Universal 2.5mm Connector Compatibility

The AUA-CL1 is designed for standard 2.5mm fibre optic ferrules, supporting:

SC connectors
ST connectors
FC connectors
E2000 connectors
Male connector end-faces
Female bulkhead adapters
???? High-Capacity Dry Cleaning

The cleaner provides more than 800 cleaning cycles per unit. Its automatic cleaning wire advancement system supplies a fresh section of cleaning material with each operation, helping reduce the risk of transferring contaminants between connectors.

???? 180° Rotary One-Click Cleaning

Simply insert the cleaner into the compatible connector and apply a light push. The cleaning head performs a 180° rotary cleaning action across the fibre end-face.

An audible "Kata" click indicates completion of the cleaning cycle.

✨ Removes Dust, Oil & Contaminants

The dry cleaning system is designed to remove up to 99% of stains and dust, helping keep fibre connector end-faces clean and reducing contamination that can contribute to optical signal problems.

No IPA alcohol or wet cleaning wipes are required.

⚡ Anti-Static Resin Construction

The AUA-CL1 features an anti-static resin body designed to reduce static build-up and help prevent dust from being attracted back onto the cleaned fibre surface.

???? Extendable Nozzle

The built-in extension rod/nozzle button allows the cleaning tip to reach recessed fibre adapters and connectors, making the pen suitable for use in high-density patch panels and distribution frames.

????️ Transparent Inspection Window

A clear inspection window allows the user to monitor the remaining cleaning ribbon and check its condition, helping determine when the cleaning material needs replacement.

????️ Protective Cap

The protective cap covers the cleaning tip when the tool is not being used, helping protect the cleaning mechanism from contamination.

TECHNICAL SPECIFICATIONS
Specification Details
Brand COMPTYCO
Model AUA-CL1
Tool Type Fiber Optic One-Click Cleaning Pen
Application 2.5mm Fibre Ferrule Connectors
Connector Compatibility SC / FC / ST / E2000
Adapter Compatibility Male Connectors & Female Bulkhead Adapters
Cleaning Capacity More than 800 cleans
Cleaning Efficiency Removes up to 99% of stains & dust
Cleaning Method Dry Cleaning
Cleaning Action 180° Rotary Push Action
Body Material Anti-Static Resin
Dimensions 175 × 18 × 18mm
Nozzle Extendable
Indicator Audible Click Indicator
Inspection Transparent Cleaning Ribbon Window
Protection Protective Cap
COMPONENT BREAKDOWN
Protection Cap

Protects the cleaning tip from dust and contamination when the pen is not in use.

Guide Cover

Helps align the cleaner correctly when inserting it into compatible fibre connectors and female bulkhead adapters.

180° Rotating Cleaning Head

The cleaning head rotates through 180° during operation to wipe contaminants from the fibre connector end-face.

Extension Rod Button

Allows the front nozzle to be extended when accessing recessed connectors in dense patch panels and fibre distribution equipment.

Transparent Inspection Window

Provides visibility of the internal cleaning ribbon so users can monitor the remaining cleaning capacity.

Anti-Static Body Handle

The lightweight anti-static resin housing helps reduce static charge and unwanted dust attraction during fibre maintenance.

IDEAL APPLICATIONS

The COMPTYCO AUA-CL1 Fiber Optic Cleaning Pen is suitable for:

FTTH fibre installation
Fibre optic network maintenance
Telecom network installation
Fibre patch panel maintenance
Fibre distribution frames
Optical connector cleaning
SC / FC / ST connector maintenance
E2000 connector cleaning
Data centre fibre maintenance
Fibre optic splicing preparation
Network technicians and fibre installers
WHY USE THE AUA-CL1?

Dirty or contaminated fibre connector end-faces can affect the quality of an optical connection. The COMPTYCO AUA-CL1 provides a fast and convenient way to clean compatible fibre connectors without requiring separate alcohol and cleaning wipes.

Its one-click operation, 180° rotary cleaning action, automatic cleaning ribbon advancement, anti-static construction, extendable nozzle and 800+ cleaning capacity make it a practical tool for routine fibre optic connector maintenance.
