COMPTYCO VCFS-30 Fiber Optic Stripping

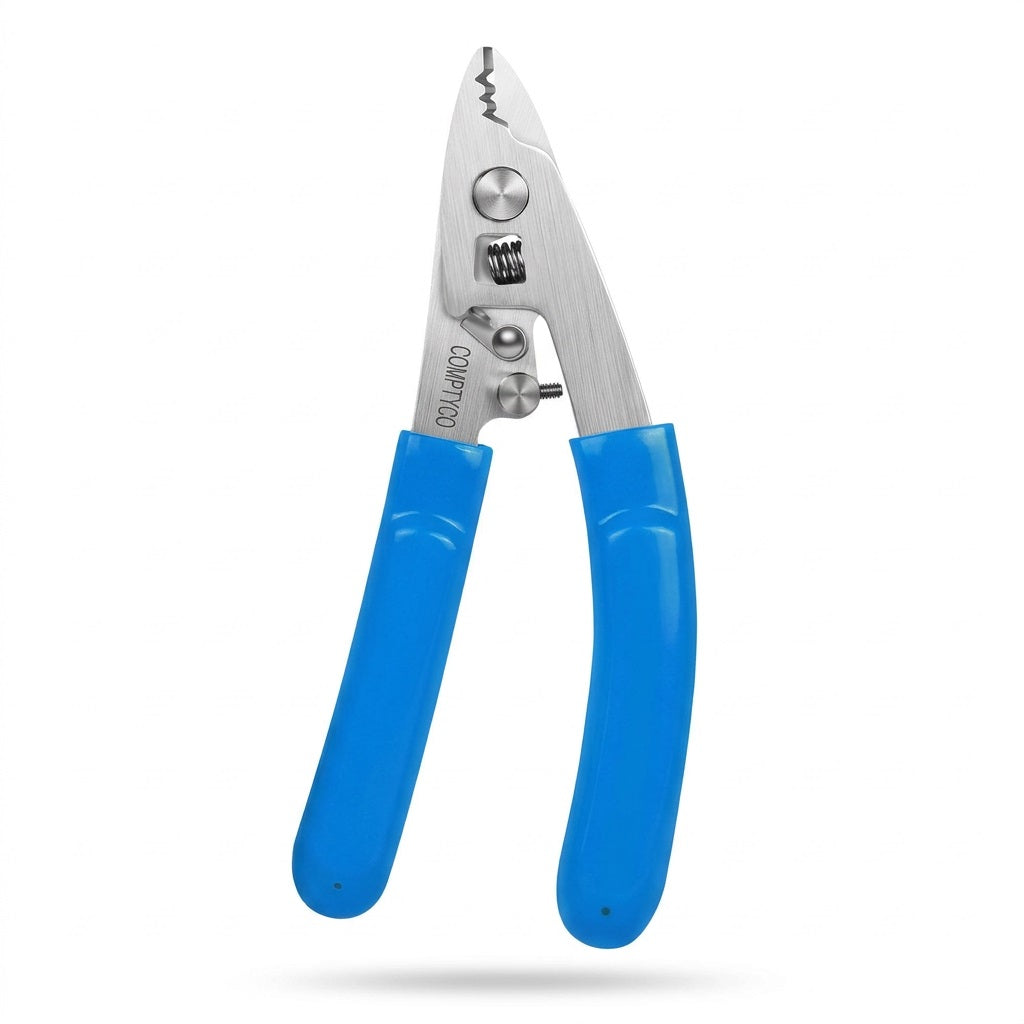

COMPTYCO VCFS-30 Three-Port Optical Fiber Stripping Pliers – Precision Fibre Stripper for FTTH & Fusion Splicing
Short Description (Key Features)
3-Port Segmented Stripping Design: Features three precision stripping apertures for removing different protective fibre layers without changing tools, allowing fast and efficient fibre preparation.
420 Stainless Steel Construction: Manufactured from durable 420 stainless steel with high-temperature quenching and surface polishing for high hardness, improved rust resistance and long service life.
Precision Fibre Stripping: Designed to provide clean, controlled stripping while helping prevent damage to the underlying 125`ecm glass optical fibre.
Multi-Stage Fibre Preparation: Supports stripping of 2–3mm protective sleeves, 0.9mm outer protective layers, 250`ecm coated fibre and 125–250`ecm primary coating layers.
Adjustable Jaw Tension: Built-in fine-adjustment screw allows technicians to fine-tune the stripping aperture for controlled and consistent operation. An Allen key is included.
Ergonomic Anti-Slip Handle: Blue PVC-coated handles provide a comfortable, secure grip and help reduce hand fatigue during repeated FTTH installation and fusion splicing work.
Integrated Safety Lock: Opening and closing lock buckle keeps the pliers securely closed during storage and transportation, helping prevent accidental injury.
Return Spring Mechanism: Internal spring-assisted opening provides smooth operation and makes repeated stripping tasks faster and more convenient.
Compact & Lightweight Design: Measuring approximately 16.3 × 6cm and weighing only 130g, the VCFS-30 is easy to carry in a technician`s tool bag.

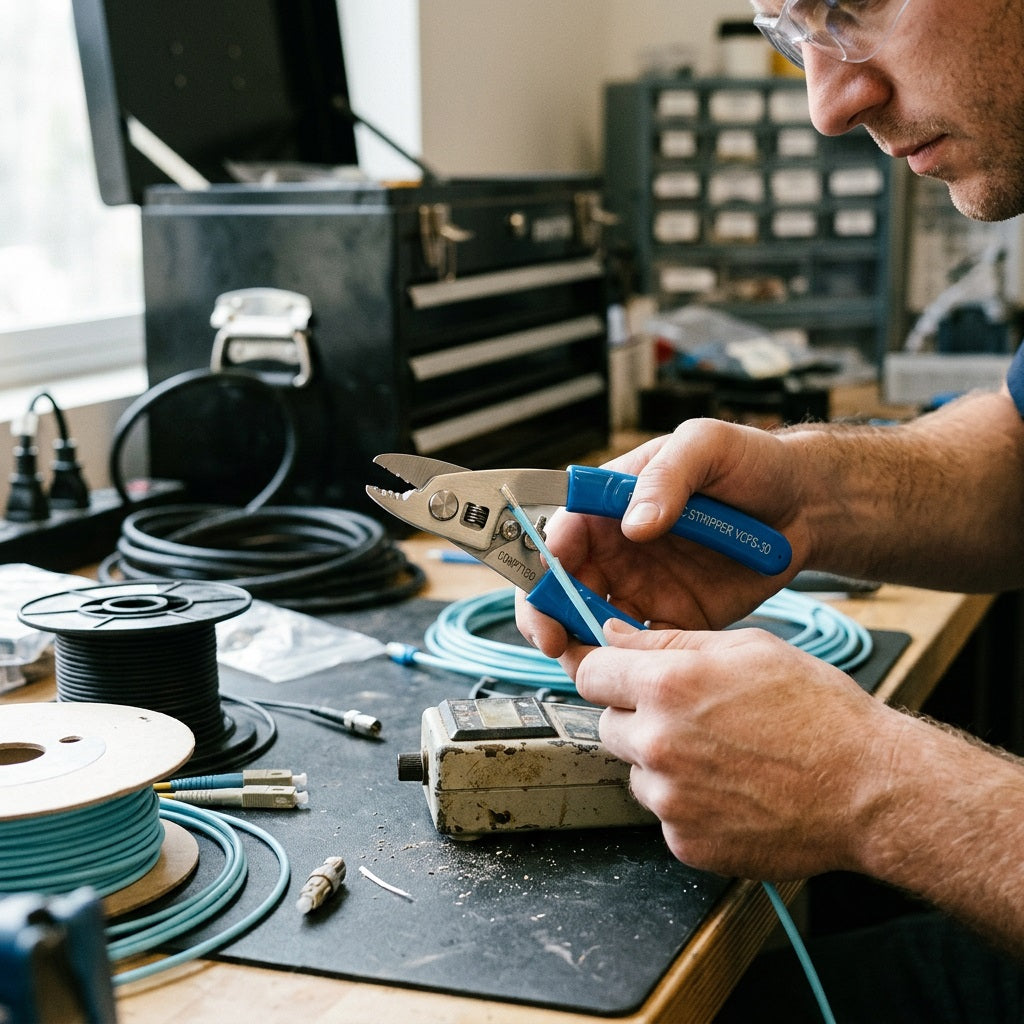

Ideal for FTTH & Fusion Splicing: Suitable for fibre preparation during FTTH deployment, fibre termination, fusion splicing, network installation and maintenance.
Long Product Description

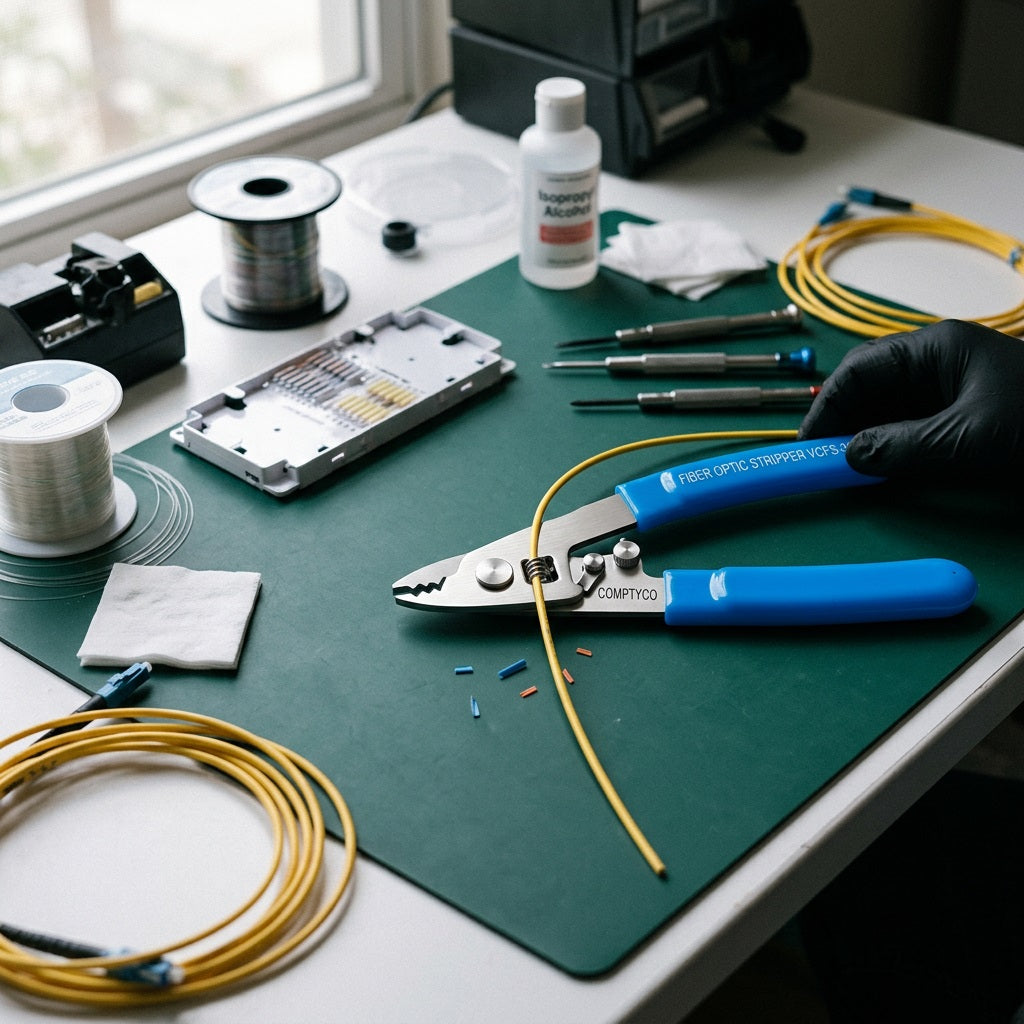

The COMPTYCO VCFS-30 Three-Port Optical Fiber Stripping Pliers are precision fibre preparation tools designed for FTTH installation, fusion splicing, fibre termination, network maintenance and optical cable preparation. By combining three stripping apertures into one compact tool, the VCFS-30 allows technicians to remove multiple layers of fibre protection efficiently without constantly changing stripping tools.

Manufactured from 420 stainless steel, the stripping pliers undergo high-temperature quenching heat treatment and surface polishing to improve hardness, durability and resistance to rust and corrosion. The precision-machined stripping openings are designed to provide controlled removal of protective coatings while helping protect the underlying optical fibre.

3-Port Segmented Fibre Stripping Design

The VCFS-30 uses a three-stage stripping configuration for different layers of optical fibre protection:

1. Large Aperture – Outer Protective Sleeve

The largest stripping opening is designed for removing approximately 2–3mm soft rubber protective sleeves or outer protective material, providing access to the underlying fibre structure.

2. Intermediate Aperture – Outer Protective Layer

The intermediate aperture is suitable for stripping approximately 0.9mm outer protective layers and compatible fibre protection layers.

3. Small Aperture – Primary Fibre Coating

The smallest stripping opening is designed for removing the 125–250`ecm coating layer, exposing the 125`ecm bare optical fibre for subsequent cleaving and fusion splicing preparation.

Adjustable Jaw Mechanism

The VCFS-30 incorporates a jaw aperture adjustment screw that allows technicians to fine-tune the stripping tension according to the fibre coating and working requirements. The included Allen key makes adjustment straightforward.

Turning the adjustment screw clockwise increases the aperture, while turning it counter-clockwise reduces the aperture.

This adjustment capability helps achieve controlled stripping performance while reducing the risk of excessive pressure on the optical fibre.

Durable 420 Stainless Steel Construction

The main stripping body is manufactured from 420 stainless steel and treated through high-temperature quenching and surface polishing. This construction provides a strong and durable tool suitable for regular field use while offering improved resistance to rust and corrosion.

Ergonomic PVC Anti-Slip Handles

The blue PVC-coated handles provide a comfortable and secure grip. The anti-slip surface helps technicians maintain control during repetitive stripping operations and contributes to reduced hand fatigue during extended fibre installation or splicing work.

Safety Lock & Spring-Assisted Operation

An integrated opening and closing lock buckle allows the pliers to be secured in the closed position when not in use. This makes the tool easier and safer to store in a toolbox or carrying case.

The internal return spring assists the jaws in reopening after each stripping operation, providing smooth and efficient repeated use.

Key Applications
FTTH fibre optic installation
Fibre optic cable preparation
Fusion splicing preparation
Fibre termination
Fibre connector preparation
Single-mode fibre preparation
Optical network installation
Fibre network maintenance
Telecom and broadband installations
Field technician applications
Fibre repair and troubleshooting
Technical Specifications
Parameter / Feature Specification
Brand COMPTYCO
Model VCFS-30
Product Type 3-Port Optical Fibre Stripping Pliers
Main Material 420 Stainless Steel
Manufacturing Process High-Temperature Quenching Heat Treatment & Surface Polishing
Handle Material Blue PVC Anti-Slip Coating
Stripping Port 1 Approx. 2–3mm Soft Rubber Protective Sleeve
Stripping Port 2 Approx. 0.9mm Fibre Outer Protective Layer
Stripping Port 3 Approx. 125–250`ecm Primary Coating Layer
Bare Fibre Compatibility 125`ecm Optical Fibre
Adjustment Mechanism Jaw Adjustment Screw
Adjustment Tool Hexagonal Allen Key Included
Safety Feature Opening & Closing Lock Buckle
Operation Spring-Assisted Return Mechanism
Product Dimensions Approx. 16.3 × 6cm
Unfolded Width Approx. 8.8cm
Product Weight Approx. 130g
Hardware & Design Highlights
Precision three-port stripping jaw
Durable 420 stainless steel body
High-temperature quenching treatment
Polished surface finish
Adjustable stripping aperture
Included Allen key for jaw adjustment
Blue PVC anti-slip handles
Internal return spring
Opening/closing safety lock
Compact handheld design
Lightweight 130g construction
What’s in the Box
1 × COMPTYCO VCFS-30 3-Port Fibre Optic Stripping Pliers
1 × Hexagonal Allen Key for Jaw Aperture Adjustment
1 × Product Packaging Box

Packaging Dimensions: Approx. 17.5 × 7.7 × 1.2cm
Weight with Packaging: Approx. 140g
