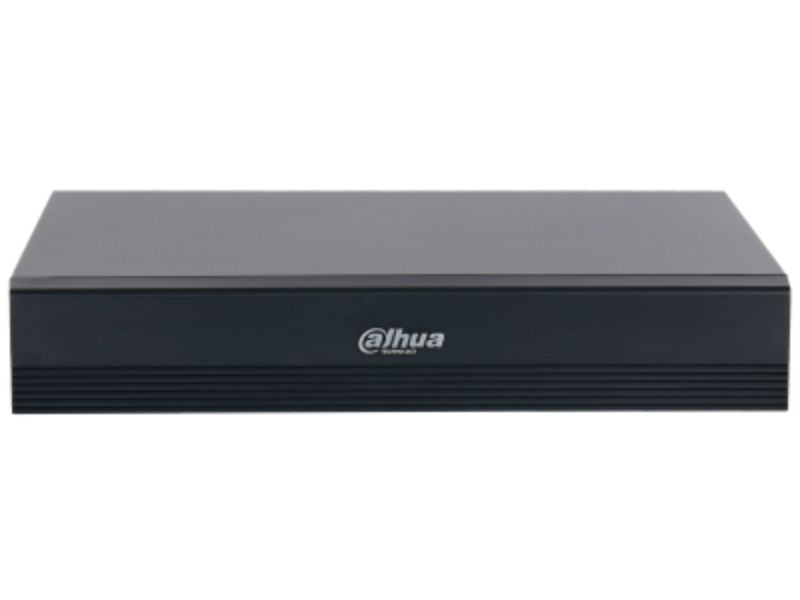

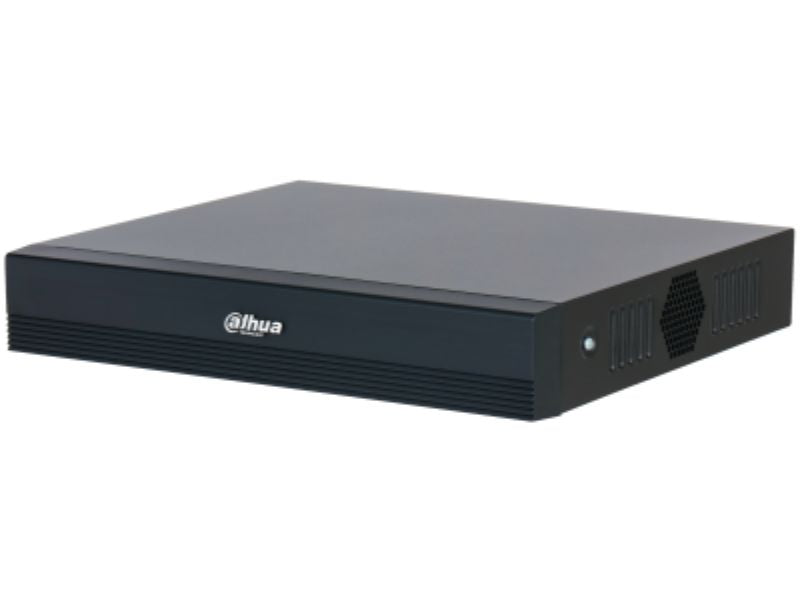

DAHUA 16 Ch Upto 2Mp Dvr
DAHUA 16 Ch Upto 2Mp Dvr
DAHUA 16 Ch Upto 2Mp Dvr

DAHUA 16 Ch Upto 2Mp Dvr

DAHUA
R 1,699R 2,199
Estimated delivery 2–4 working days
In stock
FREE NATIONWIDE DELIVERY
on orders over R 500
Quantity
In stock
  • Interest Free Payments available
  • Hassle Free Returns within 7 days
  • 6-month limited warranty
Price: R 1,699

Description

16CH Penta-brid 1080N/720P Cooper 1U 1HDD WizSense Digital Video Recorder. Dolynk cloud version: DMSS 2.0.30 and above, Dolynk Care 2.50.20 and above.

Key features

  • >16-channel two-way talk over coaxial cable allows for seamless communication between the camera, client and recorder.
  • >16-channel SMD Plus for analog channels or 18-channel SMD by camera which allows the device to trigger accurate alarms for humans and vehicles.
  • >16-channel AI Coding saves on storage and bandwidth while maintaining the details of targets in videos.
  • >Supports HDCVI, AHD, TVI, CVBS and IP video input.
  • >Supports up to 18-channel IP camera input and each channel can be up to 6 MP. The incoming bandwidth reaches 64 Mbps.
  • >Supports accessing Wi-Fi cameras, making it suitable for a wide range of scenes.
  • >Smart H.265+ and H.265 dual-stream video compression.
  • Embedded Linux
  • Web; Local GUI
  • SMD
  • SMD Plus by Recorder
  • 16 channels: Secondary filtering for human and vehicle, reducing false alarms caused by leaves, rain and lighting condition change
  • Irregular Black Block Masking
  • Irregular Black Block Masking by Recorder
  • CVI: 1080p@25/30 fps; 720p@25/30 fps.
  • TVI: 1080p@25/30 fps; 720p@25/30 fps.
  • AHD: 1080p@25/30 fps; 720p@25/30 fps.
  • 2 IP channel by default + 16 channels (analog channels are converted to IP channels)
  • Incoming bandwidth: 64 Mbps, recording bandwidth: 64 Mbps and outgoing bandwidth: 64 Mbps
  • Encoding Capacity
  • Main stream: the 1st channel 1080N/720p@(1 fps–25/30 fps), others 1080N/720p@(1 fps–15 fps); 960H/D1/CIF@(1 fps–25/30 fps)
  • Dual-stream
  • Yes
  • HDMI: 1920 `d7 1080, 1280 `d7 1024, 1280 `d7 720
  • VGA: 1920 `d7 1080, 1280 `d7 1024, 1280 `d7 720
  • Third-party Camera Access
  • Panasonic; Sony; Hanwha; Axis; Arecont; ONVIF
  • Compression Standard
  • AI Coding; Smart H.265+; H.265; Smart H.264+; H.264
  • HTTP; HTTPS; TCP/IP; IPv4; IPv6; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS; SNMP; Alarm Server; P2P; Auto Registration; IP Search (Supports IP camera, DVR, NVS, etc.)
  • Mobile Phone Access
  • iOS; Android
  • Interoperability
  • ONVIF 24.12 (Profile T; Profile S; Profile G); CGI; SDK
  • Browser
  • Chrome; IE; Safari; Edge; Firefox
  • Recording Playback
  • Record Mode
  • General; alarm; motion detection
  • Backup Method
  • Playback Mode
  • Instant playback; general playback; event playback; tag playback; smart playback
  • Alarm
  • Motion detection; HDCVI alarm; camera external alarm; network alarm; PIR alarm
  • Anomaly Alarm
  • Error (no disk, disk error, low space, low quota space; network disconnection; IP conflict; MAC conflict); video loss; video tampering; camera offline
  • Intelligent Alarm
  • SMD Plus
  • Alarm Linkage
  • Record; snapshot (panoramic); IPC external alarm output; audio; buzzer; log; preset; email
  • Two-way Talk
  • Local and network user two-way talk: Shares the same audio input with the first channel
  • 1 SATA port, up to 16 TB. This limit varies depending on the environment temperature.
  • Hdmi
  • VGA
  • 260.0 mm `d7 231.6 mm `d7 47.6 mm (10.24" `d7 9.12" `d7 1.87") (W `d7 D `d7 H)
  • 344.0 mm `d7 89.0 mm `d7 287.0 mm (13.54" `d7 3.50" `d7 11.30") (W `d7 D `d7 H)
  • –10 `b0C to +45 `b0C (+14 `b0F to +113 `b0F)
  • –20 `b0C to +60 `b0C (–4 `b0F to +140 `b0F)
  • Installation
  • Desktop
  • Ce-emc: EN IEC 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 55032:2015+A11:2020, EN 55035:2017+A11:2020, EN 55024:2010+A1:2015, EN 50130-4:2011+A1:2014

Specifications

  • Dh-xvr1b16-i/t
  • Xvr1b16-i/t
  • 18 channels
  • 1 channel

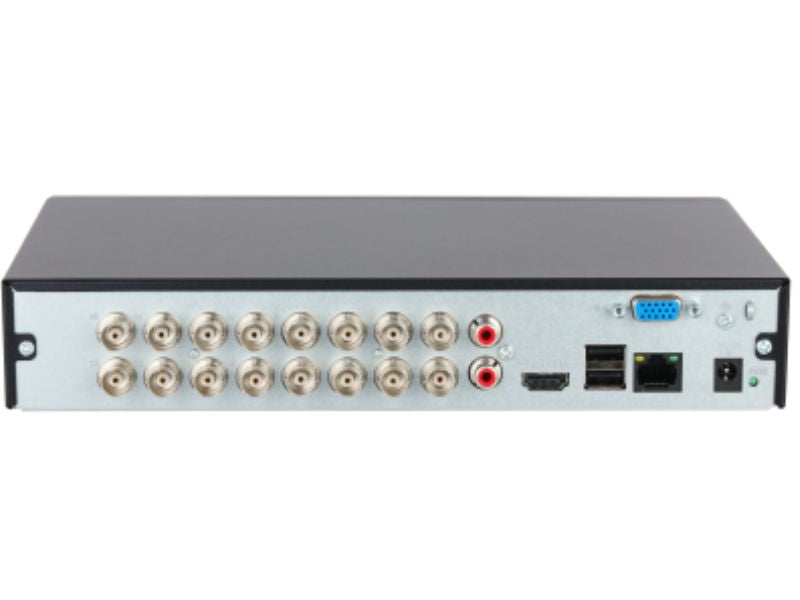

  • 16 BNC ports, supports HDCVI/AHD/TVI/CVBS auto-detect
  • Up to 18 channels of IPC access
  • Sub stream: CIF@(1 fps–7 fps)
  • 32 kbps–4096 kbps
  • 8 kHz, 16 bit
  • 64 kbps
  • 1 hdmi, 1 VGA
  • When IP extension mode not enabled: 1/4/8/9/16
  • When IP extension mode enabled: 1/4/8/9/16/25
  • G.711a; G.711u; PCM
  • 1/4/9/16
  • 1-channel RCA
  • 16-channel BNC (Coaxial Audio)
  • Coaxial two-way talk: 16-channel BNC
  • 2 (2 rear USB 2.0 ports)
  • 1
  • 1 (10/100 Mbps Ethernet port, RJ-45)
  • 12 VDC, 2 A
  • <10 W (without HDD)
  • 0.96 kg (2.12 lb)
  • 1.54 kg (3.40 lb)
  • 10%–90% (RH), non-condensing
  • Ce-lvd: IEC 62368-1:2014

Frequently Bought Together Frequently bought

Product Information

Categories Dahua / Security & Surveillance / Specials
Brand Dahua
Model DH-XVR1B16-I/T
Channels 16 CH Penta-brid
Resolution 1080N/720P
Operating System Embedded Linux
Video Compression Smart H.265+/H.265/H.264+/H.264
IP Camera Input Up to 18 channels (up to 6MP)
Video Output 1 HDMI, 1 VGA (1920 x 1080)
Storage 1 SATA port, up to 16 TB
Ports 2x USB 2.0, RJ-45 10/100 Mbps
Power Input 12 VDC, 2 A
Power Consumption <10 W (without HDD)
Dimensions 260 x 231.6 x 47.6 mm
Weight 0.96 kg
Operating Temperature -10°C to +45°C
