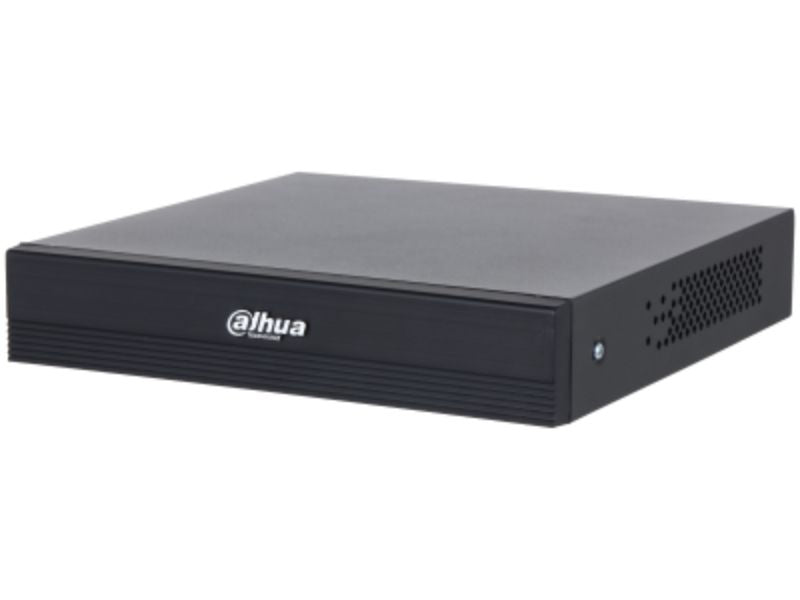

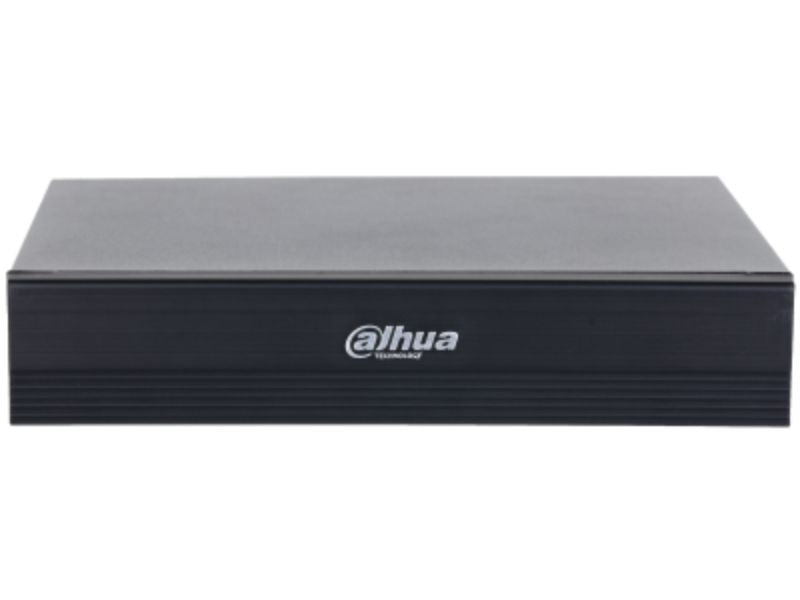

DAHUA 8Ch Dvr Upto 2Mp 1Hdd

8CH Penta-brid 1080N/720P Cooper 1U 1HDD WizSense Digital Video Recorder. > *Dolynk cloud compatible version: DMSS V2.0.1 and above, Dolynk Care V2.5.1 and above.

Key features

• > 8-channel two-way talk over coaxial cable allows for seamless communication between the camera, client and recorder.
• > 8-channel SMD Plus for analog channels which allows the device to trigger accurate alarms for humans and vehicles.
• > 8-channel AI Coding saves on storage and bandwidth while maintaining the details of targets in videos.
• > Supports HDCVI, AHD, TVI, CVBS and IP video input.
• > Supports up to 10-channel IP camera input and each channel can be up to 6 MP. The incoming bandwidth reaches 40 Mbps.
• > Supports accessing Wi-Fi cameras, making it suitable for a wide range of scenes.
• > Smart H.265+ and H.265 dual-stream video compression.
• Embedded Linux
• Web; Local GUI
• SMD
• SMD Plus by Recorder
• 8 channels: Secondary filtering for human and vehicle, reducing false alarms caused by leaves, rain and lighting condition change
• CVI: 1080p@25/30 fps; 720p@25/30 fps.
• TVI: 1080p@25/30 fps; 720p@25/30 fps.
• AHD: 1080p@25/30 fps; 720p@25/30 fps.
• 2 IP channels by default + 8 channels (analog channels are converted to IP channels)
• Incoming bandwidth: 40 Mbps, recording bandwidth: 40 Mbps and outgoing bandwidth: 40 Mbps
• After IP extension is enabled, the AI Function (SMD) will be disabled.
• Encoding Capacity
• Main stream: the 1st channel 1080N/720p@(1 fps–25/30 fps), others 1080N/720p@(1 fps–15 fps); 960H/D1/CIF@(1 fps–25/30 fps)
• Dual-stream
• Yes
• HDMI: 1920 `d7 1080, 1280 `d7 1024, 1280 `d7 720
• VGA: 1920 `d7 1080, 1280 `d7 1024, 1280 `d7 720
• Third-party Camera Access
• Panasonic; Sony; Hanwha; Axis; Arecont; ONVIF
• Compression Standard
• AI Coding; Smart H.265+; H.265; Smart H.264+; H.264
• Http; https; tcp/ip; ipv4; ipv6; rtsp; UDP; NTP; dhcp; DNS; smtp; upnp; IP filter; FTP; ddns;
• SNMP; Alarm Server; P2P; Auto Registration; IP Search (Supports IP camera, DVR, NVS, etc.)
• Mobile Phone Access
• iOS; Android
• Interoperability
• ONVIF 24.06 (Profile T; Profile S; Profile G); CGI; SDK
• Browser
• Chrome; IE; Safari; Edge; Firefox
• Recording Playback
• Record Mode
• General; alarm; motion detection
• Backup Method
• Playback Mode
• Instant playback; general playback; event playback; tag playback; smart playback
• Alarm
• Motion detection; HDCVI alarm; camera external alarm; network alarm; PIR alarm
• Anomaly Alarm
• Error (no disk, disk error, low space, low quota space; network disconnection; IP conflict; MAC conflict); video loss; video tampering; camera offline
• Intelligent Alarm
• SMD Plus
• Alarm Linkage
• Record; snapshot (panoramic); IPC external alarm output; audio; buzzer; log; preset; email
• Two-way Talk
• Local and network user two-way talk: Shares the same audio input with the first channel
• 1 SATA port, up to 6 TB. This limit varies depending on the environment temperature.
• Hdmi
• VGA
• 197.0 mm `d7 204.3 mm `d7 41.5 mm (7.76" `d7 8.04" `d7 1.63") (W `d7 D `d7 H)
• 332.0 mm `d7 64.0 mm `d7 240.0 mm (13.07" `d7 2.52" `d7 9.45") (W `d7 D `d7 H)
• –10 `b0C to +45 `b0C (+14 `b0F to +113 `b0F)
• –20 `b0C to +60 `b0C (–4 `b0F to +140 `b0F)
• Installation
• Desktop
• Ce-emc: EN IEC 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 55032:2015+A11:2020, EN 55035:2017+A11:2020, EN 55024:2010+A1:2015, EN 50130-4:2011+A1:2014

Specifications

• Dh-xvr1b08-i/t
• Xvr1b08-i/t
• 10 channels

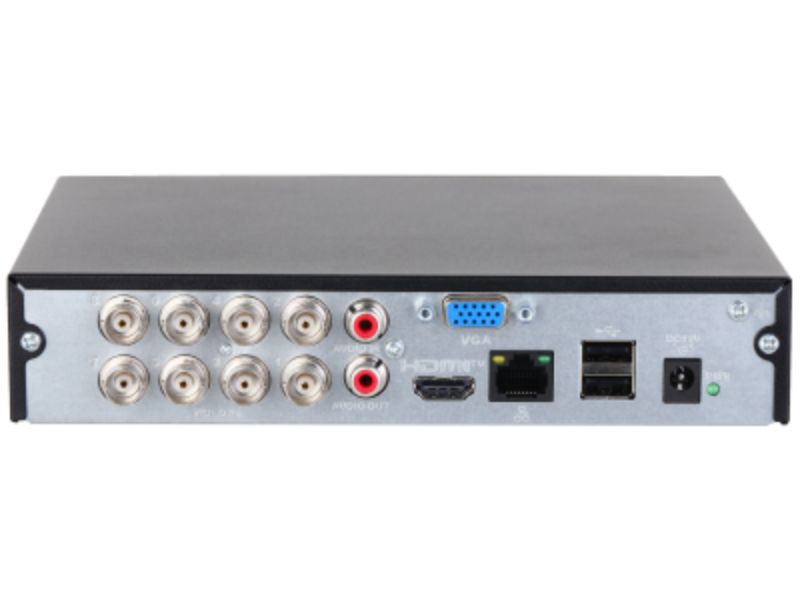

• 8 BNC ports, supports HDCVI/AHD/TVI/CVBS auto-detect
• Up to 10 channels of IPC access
• Sub stream: CIF@(1 fps–7 fps)
• 32 kbps–4096 kbps
• 8 kHz, 16 bit
• 64 kbps
• 1 hdmi, 1 VGA
• When IP extension mode not enabled: 1/4/8/9
• When IP extension mode enabled: 1/4/8/9/16
• G.711a; G.711u; PCM
• 1/4/9
• 1-channel RCA
• 8-channel BNC (Coaxial Audio)
• Coaxial two-way talk: 8-channel BNC
• 2 (2 rear USB 2.0 ports)
• 1
• 1 (10/100 Mbps Ethernet port, RJ-45)
• 12 VDC, 1.5 A
• <7 W (without HDD)
• 0.57 kg (1.26 lb)
• 0.97 kg (2.14 lb)
• 10%–90% (RH), non-condensing
• Ce-lvd: IEC 62368-1:2014
