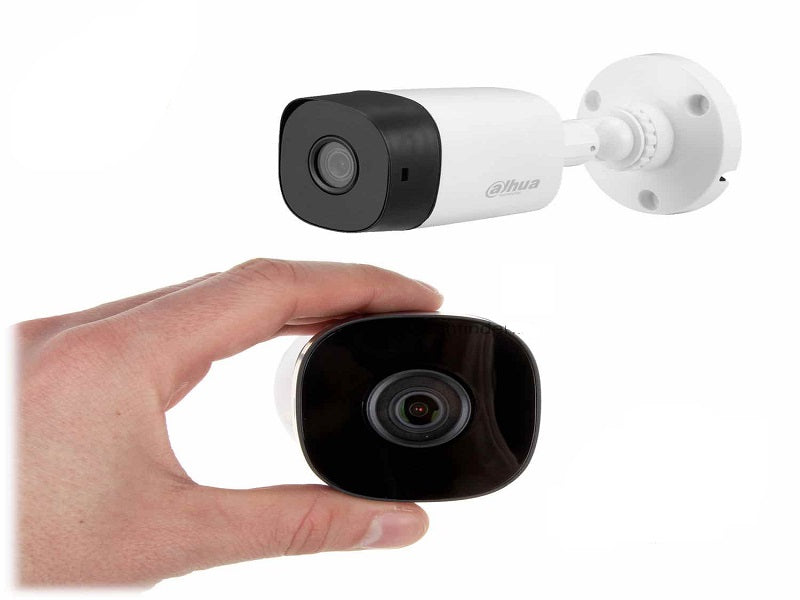

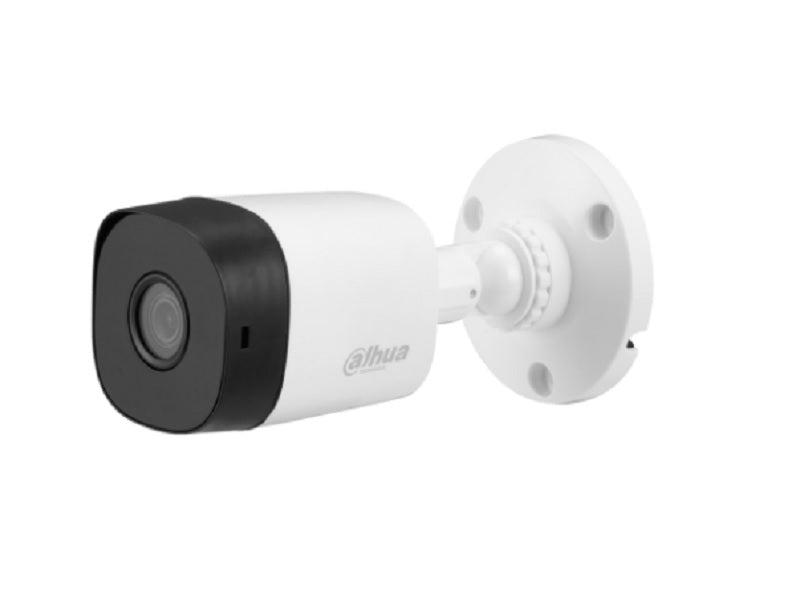

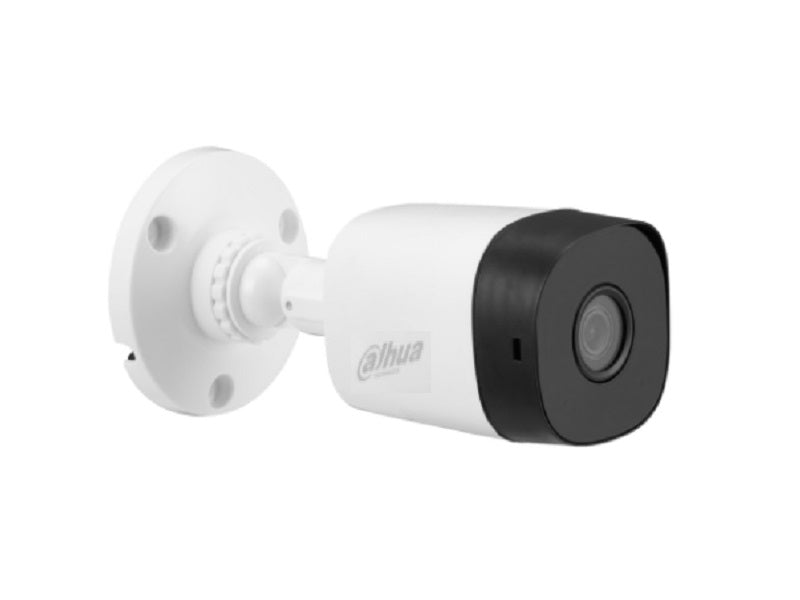

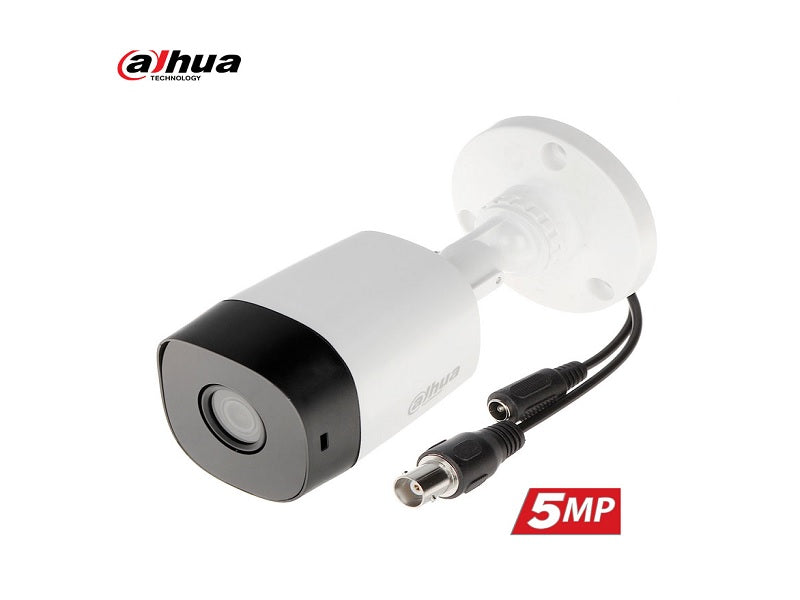

Dahua DH-HAC-B1A51P 5MP HDCVI Bullet Camera - 2.8mm Lens, 20m IR, IP67
Dahua DH-HAC-B1A51P 5MP HDCVI Bullet Camera - 2.8mm Lens, 20m IR, IP67
DH-HAC-B1A51P-2.8
DAHUA
R 436
Estimated delivery
1–3 working days
In stock
FAST NATIONWIDE DELIVERY
Reliable delivery, every order
Reliable delivery, every order
Quantity
In stock
When do I get it?
Estimated delivery times depend on where you are. Your exact date is confirmed at checkout.
| Delivery destination | Delivery time |
|---|---|
| Cape Town, Durban, Johannesburg & Pretoria | 1–3 working days |
| Regional areas | 5–6 working days |
| Remote areas | 3–7 working days |
- Interest Free Payments available
- Hassle Free Returns within 7 days
- 6-month limited warranty
Flexible payments from
only
R 72.66
over 2–6 instalments
Description
5M (2880 `d7 1620); 4M (2560 `d7 1440); 1080P (1920 `d7 1080); 960H (960 `d7 576/960 `d7 480). 40`b0C to +60`b0C (-40`b0F to +140`b0F) /Less than 95% RH.
Key features
- Image Sensor
- Max. Resolution
- Pixel
- Progressive
- Electronic Shutter Speed
- Min. Illumination
- S/N Ratio
- Illumination Distance
- Illuminator On/Off Control
- Auto;manual
- Fixed lens / Fixed iris
- Mount Type
- Focal Length
- Max Aperture
- Angle of View
- Focus Control
- N/A
- Close Focus Distance
- DORI distance
- Detect
- Observe
- Recognize
- Identify
- Pan / Tilt / Rotation
- Pan/Tilt/Rotation
- Frame Rate
- PAL:5M@25 fps; 4M@25 fps; 1080P@25 fps; 5M@25 fps
- Video output choices of CVI/TVI/AHD/CVBS by one BNC port
- Day/Night
- Auto (ICR) / Manual
- OSD Menu
- Multi-language
- BLC Mode
- BLC / HLC / dwdr
- WDR
- Dwdr
- Gain Control
- AGC
- Noise Reduction
- White Balance
- Smart IR
- Yes
- Mirror
- Off/On
- Privacy Masking
- FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)
- Eelectrical
- Max. 3.7W (12V DC, IR on)
- Start up should be done at above -40`b0C (-40`b0F)
- Ingress Protection & Vandal Resistance
- Construction
- Casing
- Plastic
- 69.8 mm `d7 69.8 mm `d7 149.3 mm
Specifications
- Dh-hac-b1a51p-2.8
- 1/2.7" cmos
- 2880 (H) `d7 1620 (V)
- 5MP
- PAL: 1/25-1/100000 s
- NTSC: 1/30-1/100000 s
- 0.02 Lux/F2.0, 30IRE, 0 Lux IR on
- More than 65 dB
- 20 m (66 feet)
- Lens
- Lens Type
- M12
- 3.6 mm (2.8 mm Optional)
- F2.0
- 2.8 mm: 125`b0 `d7 106`b0 `d7 56`b0
- (diagonal `d7 horizontal `d7 vertical)
- 3.6 mm: 104`b0 `d7 88`b0 `d7 46`b0
- 2.8 mm: 0.8 m (2.6 ft)
- 3.6 mm: 1.2 m (3.9 ft)
- 2.8mm
- 56.0 m
- (183.7 ft)
- 22.4 m
- (73.5 ft)
- 11.2 m
- (36.7 ft)
- 5.6 m
- (18.4 ft)
- 3.6mm
- 80 m
- (262.5 ft)
- 32 m
- (105.0 ft)
- 16 m
- (52.5 ft)
- 8 m
- (26.2 ft)
- Pan: 0`b0 - 360`b0
- Tilt: 0`b0 - 90`b0
- Rotation: 0`b0 - 360`b0
- Resolution
- NTSC:5M@25 fps;4M@30 fps; 1080P@30 fps; 5M@25 fps
- PAL:4M@25 fps;
- NTSC:4M@30 fps;
- 960H;
- 2D
- Off / On (8 area, rectangle)
- CE (EN55032, EN55024, en50130-4,en60950-1,
- EN 62368-1:2014+A11:2017)
- 12V DC `b130%
- IP67
- (2.75" `d7 2.75" `d7 5.88")
- 0.15 kg (0.33 lb)
- 0.25 kg (0.55 lb)
Frequently Bought Together Frequently bought
Product Information
| Categories | Dahua / Security & Surveillance / Specials |
| Brand | Dahua |
| Model | DH-HAC-B1A51P-2.8 |
| Image Sensor | 1/2.7" CMOS" |
| Resolution | 5MP (2880x1620) |
| Lens | 3.6 mm (2.8 mm optional) |
| Max Aperture | F2.0 |
| Min Illumination | 0.02 Lux/F2.0 |
| IR Distance | 20 m (66 ft) |
| Power | 12V DC |
| Power Consumption | Max 3.7W |
| Operating Temp | -40C to +60C |
| Weatherproof | IP67 |
| Dimensions | 69.8 x 69.8 x 149.3 mm |
| Weight | 0.15 kg |
| Barcode | 6939554990557 |
