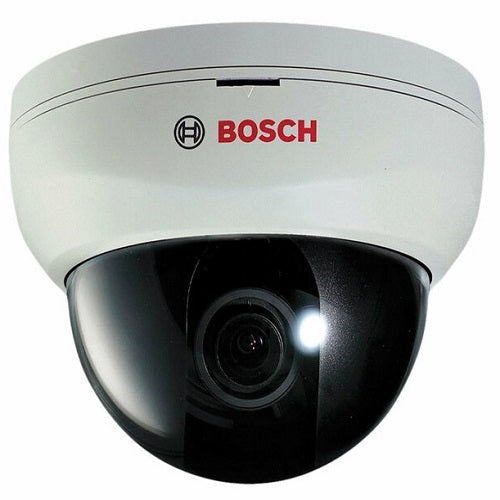

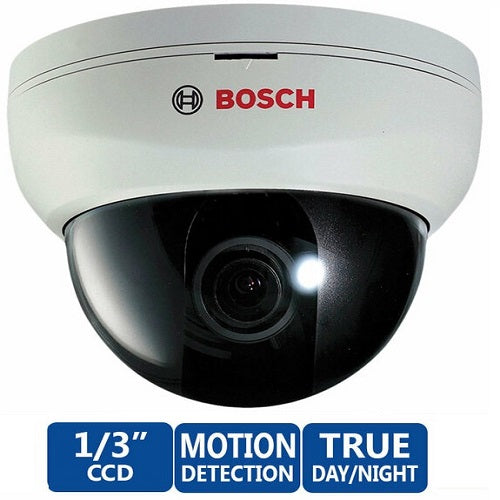

DOME Cam Bosch
DOME Cam Bosch 3.8" Day/Night
DOME Cam Bosch 3.8" Day/Night
DOME Cam Bosch 3.8" Day/Night

DOME Cam Bosch 3.8" Day/Night

BOSCH
R 499
Estimated delivery 2–4 working days
In stock
FREE NATIONWIDE DELIVERY
on orders over R 500
Quantity
In stock
  • Interest Free Payments available
  • Hassle Free Returns within 7 days
  • 6-month limited warranty
Price: R 499

Description

with a 3.8 mm fixed lens or a 3.8 to 9.5 mm varifocal. switches from color to monochrome.

Key features

  • stylish surveillance dome that offers excellent resolution
  • in variable lighting conditions. The high
  • The camera is an ideal solution for demanding
  • scene conditions. The Day/Night feature ensures
  • the highest image quality possible at any time. Depending
  • on the available light, the camera automatically
  • The camera is easy to install and can be adjusted
  • around 3 axes. Privacy zones and motion detection
  • functions can be set up in the handy camera menu
  • system.
  • u Lens choice
  • u Clean images under variable light
  • u Day/Night performance with switchable filter
  • u Easy install
  • Effective pixels (H x V) 752 x 582 (PAL)
  • Sync. System Internal sync., Line-lock
  • S/N Ratio
  • (sharpness, AGC off)
  • Minimum Illumination
  • Varifocal lens
  • max.)
  • Fixed lens
  • DNR Off, Low, Middle, High
  • White Balance ATW, Manual, Push
  • SBLC Off, Low, Middle, High
  • AGC On, Off
  • Day/Night Auto, Color, B/W, Ext.
  • Burst On, Off
  • Mirror On (horizontal), Off
  • OSD language English, Chinese
  • Europe CE

Specifications

  • Vdc-250f04-10
  • The VDC250f04 Day/Night camera is a compact,
  • performance 1/3‑inch CCD camera is available
  • lens.
  • u Excellent resolution (570 TVL sensor resolution)
  • 768 x 494 (NTSC)
  • Image Sensor 1/3-inch High sensitivity CCD
  • Video Output Composite: 1 Vpp, 75 Ohm
  • 50 dB min.
  • Horizontal resolution 570 TVL Sensor Resolution
  • (F1.4, 30IRE, AGC
  • 0.05 lx (color)
  • 0.005 lx (ICR, B/W)
  • (F2.0, 30IRE, AGC
  • 0.15 lx (color)
  • 0.05 lx (ICR, B/W)
  • ESC 1/50 - 1/120,000 (PAL)
  • 1/60 - 1/120,000 (ntsc)
  • Manual Shutter 1/50(60), 1/100(120), 1/250, 1/500, 1/700,
  • 1/1k, 1/1.6K, 1/2.5K, 1/5K, 1/7K, 1/10K,1/30K,
  • 1/60K, 1/120K
  • Motion detection On, Off (4 programmable zones)
  • Privacy On, Off (4 programmable zones)
  • Sharpness 1 ‑ 20
  • Gamma 0.35, 0.45, 0.6, 0.75
  • Lens type DC iris / manual lens
  • Supply Voltage 24 VAC (`b110%)
  • 12 VDC (`b110%)
  • Power Consumption 3.6 W max. / 0.3 A
  • Operating Temperature -10 `b0C to +50 `b0C
  • (14 °F to +122 °F)
  • Operating Humidity 30% to 80% RH
  • Storage Temperature -20 `b0C to +60 `b0C
  • (-4 °F to +140 °F)
  • Storage Humidity 20% to 90% RH

Frequently Bought Together Frequently bought

Product Information

Categories Bosch / Security & Surveillance
Brand Bosch
Model VDC-250F04-10
Type Day/Night Dome Camera
System PAL or NTSC
Image Sensor 1/3-inch High Sensitivity CCD
Resolution 570 TVL
Effective Pixels 752 x 582 (PAL) / 768 x 494 (NTSC)
Lens 3.8 mm fixed (or 3.8-9.5 mm varifocal)
Minimum Illumination 0.05 lx color / 0.005 lx B/W (varifocal)
S/N Ratio 50 dB min
Video Output Composite 1 Vpp, 75 Ohm
Voltage 24 VAC / 12 VDC
Power Consumption 3.6 W max / 0.3 A
Operating Temperature -10°C to +50°C
Certification CE
Barcode 8717332808373
