DTV Universal Ku-Band Single LNB (DCL-01) - 0.3dB Noise, 60dB Gain

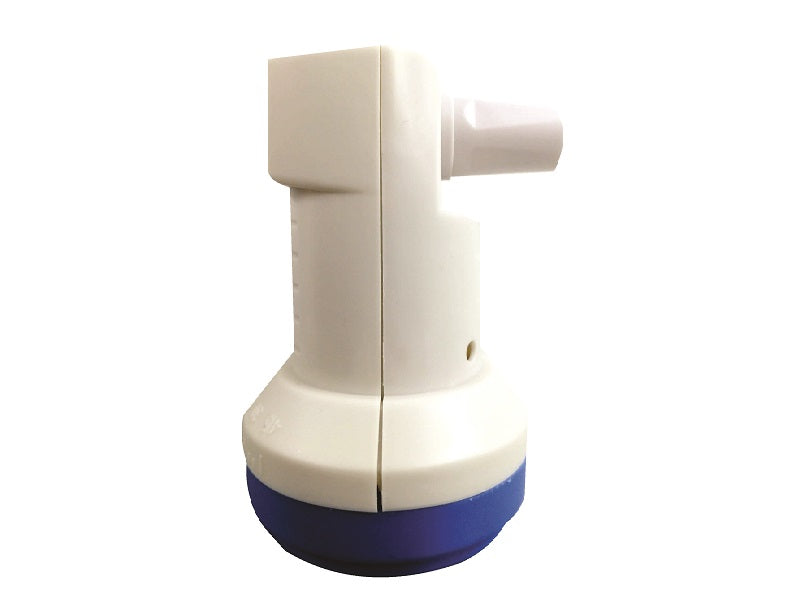

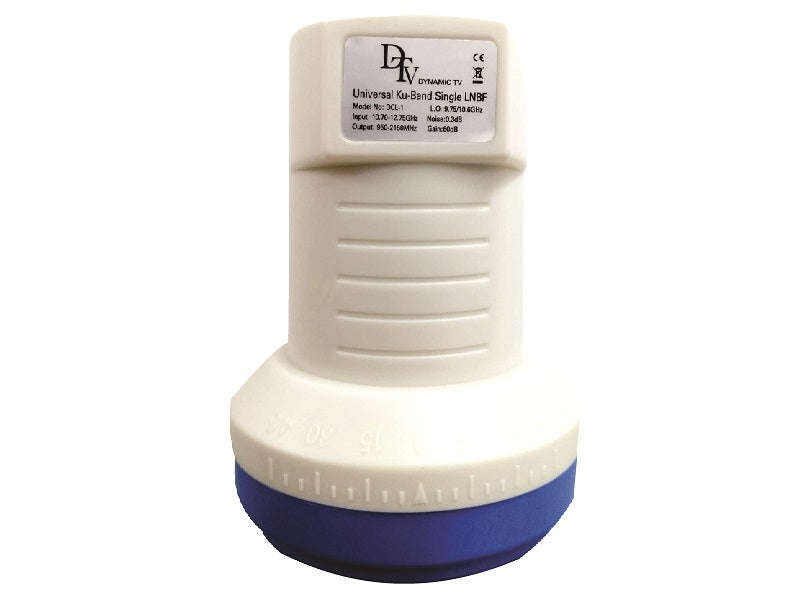

DTV DCL-01 Universal Ku-Band Single LNB

Receive satellite television signals with the DTV DCL-01 Universal Ku-Band Single LNB. Designed for compatible satellite dish installations, this single-output LNBF receives Ku-band satellite signals and converts them into a lower-frequency signal that can be transmitted through coaxial cable to a compatible satellite receiver.

The DCL-01 supports an input frequency range of 10.70–12.75GHz and an output frequency range of 950–2150MHz. Its dual local oscillator settings of 9.75GHz and 10.6GHz support reception across the specified Ku-band frequency range. <Cite refs={["turn803554search0","turn803554search1"]}/>

With a stated noise figure of 0.3dB and gain of 60dB, this LNB is designed for satellite reception applications where the dish and receiver support the required specifications.

The single-output configuration is intended for installations requiring one satellite receiver connection. It can be used for a new compatible satellite dish installation or as a replacement for an existing single-output Ku-band LNB.

Before purchasing, confirm the satellite dish mounting arrangement, connector type and receiver compatibility.

Brand: DTV

Model: DCL-01

Product Type: Universal Ku-Band Single LNB / LNBF

Output Configuration: Single output

Input Frequency: 10.70–12.75GHz

Output Frequency: 950–2150MHz

Local Oscillator: 9.75GHz / 10.6GHz

Noise Figure: 0.3dB

Gain: 60dB

Designed for compatible satellite dish installations

Converts received satellite signals for compatible satellite receivers

<Cite refs={["turn803554search0","turn803554search1"]}/>

Specification

Details

Brand

DTV

Model

DCL-01

Product Type

Universal Ku-Band Single LNB / LNBF

Frequency Band

Ku-Band

Input Frequency Range

10.70–12.75GHz

Output Frequency Range

950–2150MHz

Local Oscillator Frequency

9.75GHz / 10.6GHz

Noise Figure

0.3dB

Gain

60dB

Number of Outputs

1

Output Connector

Confirm exact connector with supplier

Mounting Type

Confirm with supplier

Compatible Equipment

Ku-band satellite dishes and receivers

Operating Voltage

Verify with supplier

Weather Protection / IP Rating

Verify with supplier

Colour

Verify with supplier

Package Contents

Confirm with supplier
