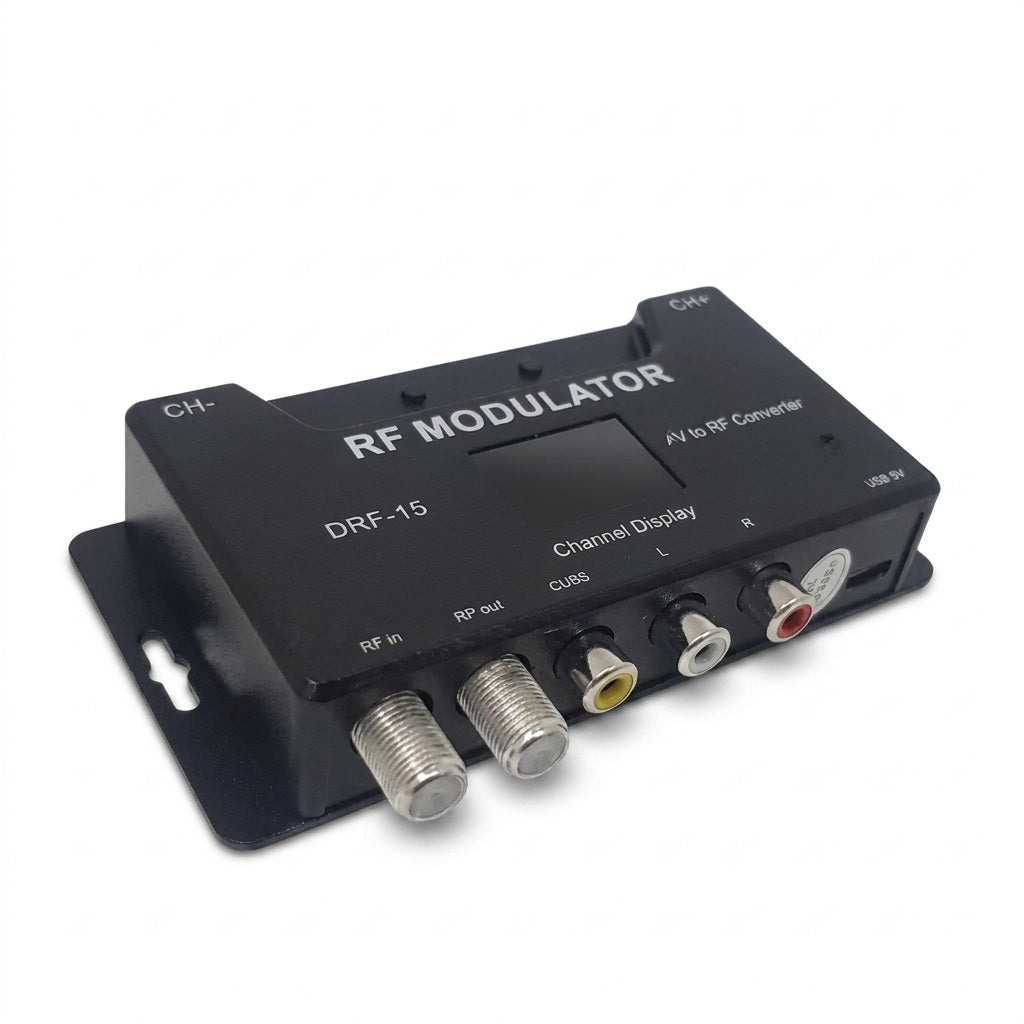

DTV DRF-15 RF Modulator - AV to RF Converter for Multi-Room TV

Product Description

The RF Modulator Audio/Video to RF Converter allows you to distribute an Audio/Video (AV) signal from devices such as Digital Set-Top Boxes (STB), DVRs, DVD players and AV receivers to multiple TVs over an existing coaxial RF cable network.

This RF modulator converts the connected AV source into an RF television signal, which can then be transmitted through the home`s existing RF/coaxial cabling to other rooms. This makes it possible to watch the same source device on multiple televisions without running separate AV cables to every room.

The unit also supports remote control signal transmission, allowing users in another room to control the connected source device, depending on the compatible remote-control setup.

Key Features
AV to RF Conversion: Converts composite Audio/Video signals into an RF TV signal.
Multi-Room TV Distribution: Share a Set-Top Box, DVR, DVD player or AV receiver with TVs in different rooms.
Uses Existing Coaxial Cabling: Designed to work with existing RF/coaxial cable installations in homes and buildings.
Wide RF Frequency Range: Supports 471.25 MHz to 855.25 MHz for flexible channel selection.
Selectable Transmission Frequency: Choose the appropriate RF channel to help reduce interference with existing TV signals.
PAL/NTSC Support: Selectable TV format for compatibility with different television standards.
Multiple Sound Standards: Supports selectable sound carrier frequencies of 4.5 MHz, 5.5 MHz, 6.0 MHz and 6.5 MHz.
Remote Control Frequency Selection: Supports 38 kHz and 56 kHz remote-control frequencies.
Stable Broadcast-Standard Circuit Design: Designed for stable operation and improved picture quality.
Multi-Room Sharing: A single AV source can be distributed to several rooms simultaneously.
Applications

This RF TV modulator is suitable for:

Home multi-room TV distribution
Digital Set-Top Box signal sharing
DVR/CCTV monitor distribution
DVD player distribution
AV receiver signal distribution
Hotels and guest houses
Offices and commercial buildings
Existing coaxial TV distribution systems
Satellite and terrestrial TV installations
Default Settings

The unit comes with the following default configuration:

TV Format: PAL
Channel: 21
Remote Control Frequency: 38 kHz
Configuration

1. Select RF Channel
Press CH+ or CH- to select the required RF channel.

2. Select Sound Carrier Frequency
Press and hold CH- for approximately 3 seconds to select between 4.5 / 5.5 / 6.0 / 6.5 MHz.

3. Select TV Format
Press and hold CH+ for approximately 3 seconds to switch between PAL and NTSC.

4. Select Remote Control Frequency
Press and hold CH+ and CH- simultaneously for approximately 3 seconds to select between 38 kHz and 56 kHz.
