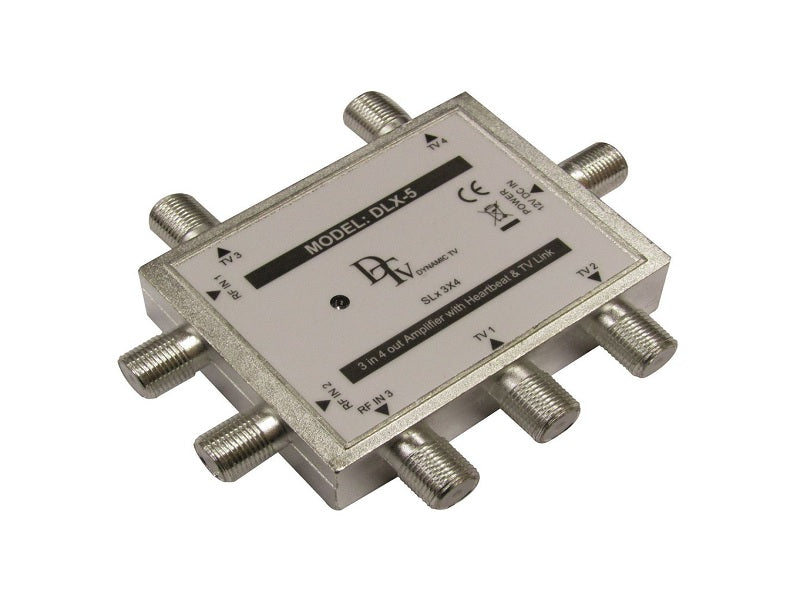

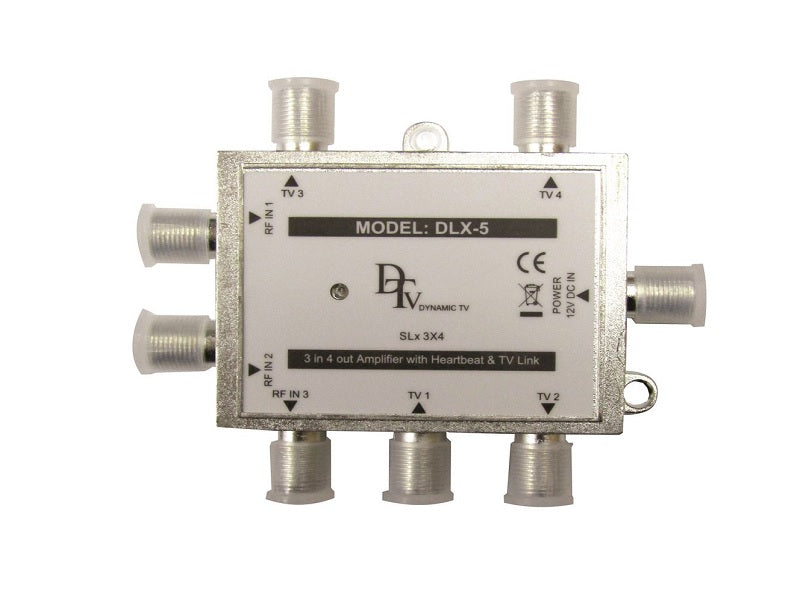

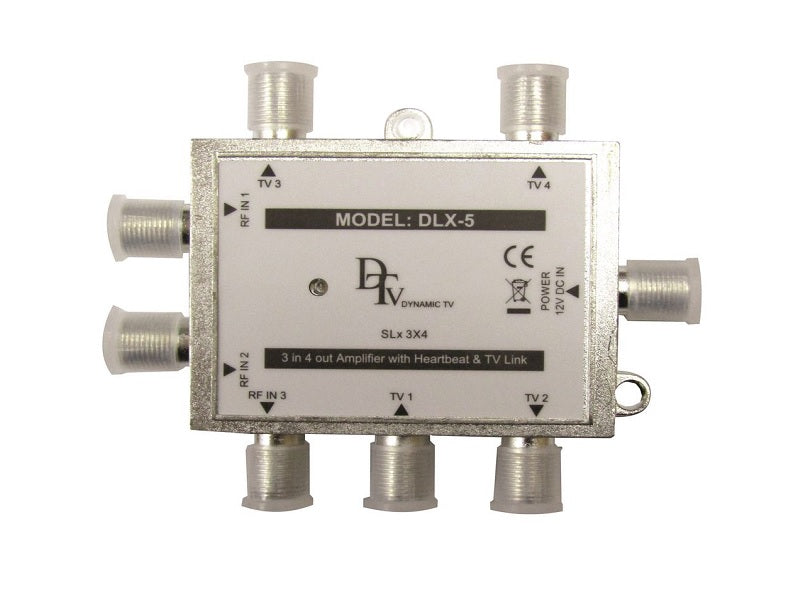

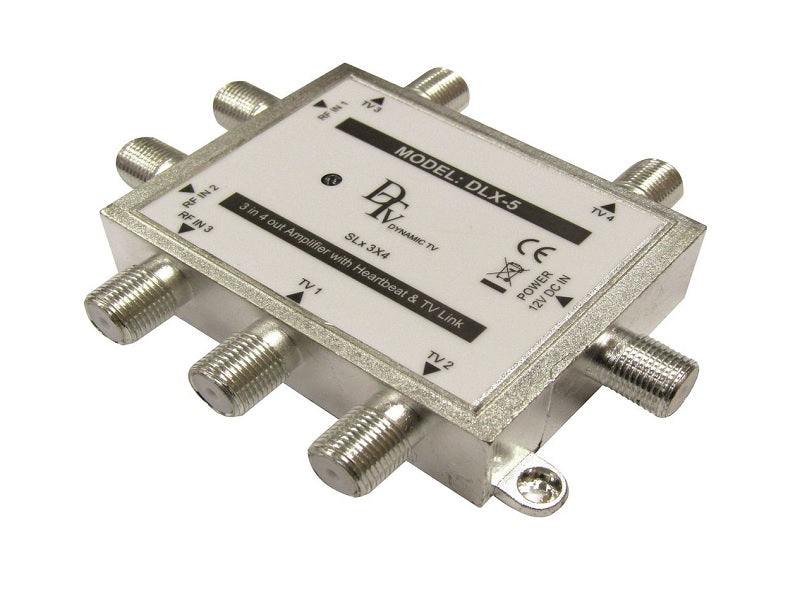

DTV DLX-5 TV Link Amplifier - 3 In 4 Out, Heartbeat, 88-862MHz, 8dB Gain

Distribute a clean satellite and TV signal to four rooms from a single feed with the DTV DLX-5 TV Link Amplifier. Built for multi-room installations, this 3 In 4 Out amplifier boosts and splits your signal so every connected television receives a strong picture, even at the end of a long cable run.

The DLX-5 includes Heartbeat and TV Link functionality, allowing a satellite receiver's remote signal to relay back through the same coaxial cabling to additional rooms, so viewers there can still control the main decoder. It draws power directly from the RF output line, keeping installation simple.

Key features

• 3 In 4 Out configuration for flexible multi-room distribution
• Heartbeat and TV Link remote-control signal pass-through
• Forward frequency range of 88 to 862 MHz
• 8 dB forward gain to compensate for splitting and cable losses
• 5 to 30 MHz reverse path with 7 dB reverse gain
• 9V DC @ 15mA output for connected accessories
• Powered from the RF Out line, no separate mains adapter needed

Ideal for

• Homes distributing a satellite decoder signal to multiple TVs
• Guest houses and offices needing shared viewing points
• Installers upgrading single-room setups to multi-room
• Users wanting remote control functionality on secondary televisions

Good to know

Use good-quality coaxial cable and connectors throughout, as losses in cabling and splitters can reduce signal reaching distant outlets even with amplification. Confirm your satellite decoder supports Heartbeat/TV Link before relying on remote pass-through at secondary points.
