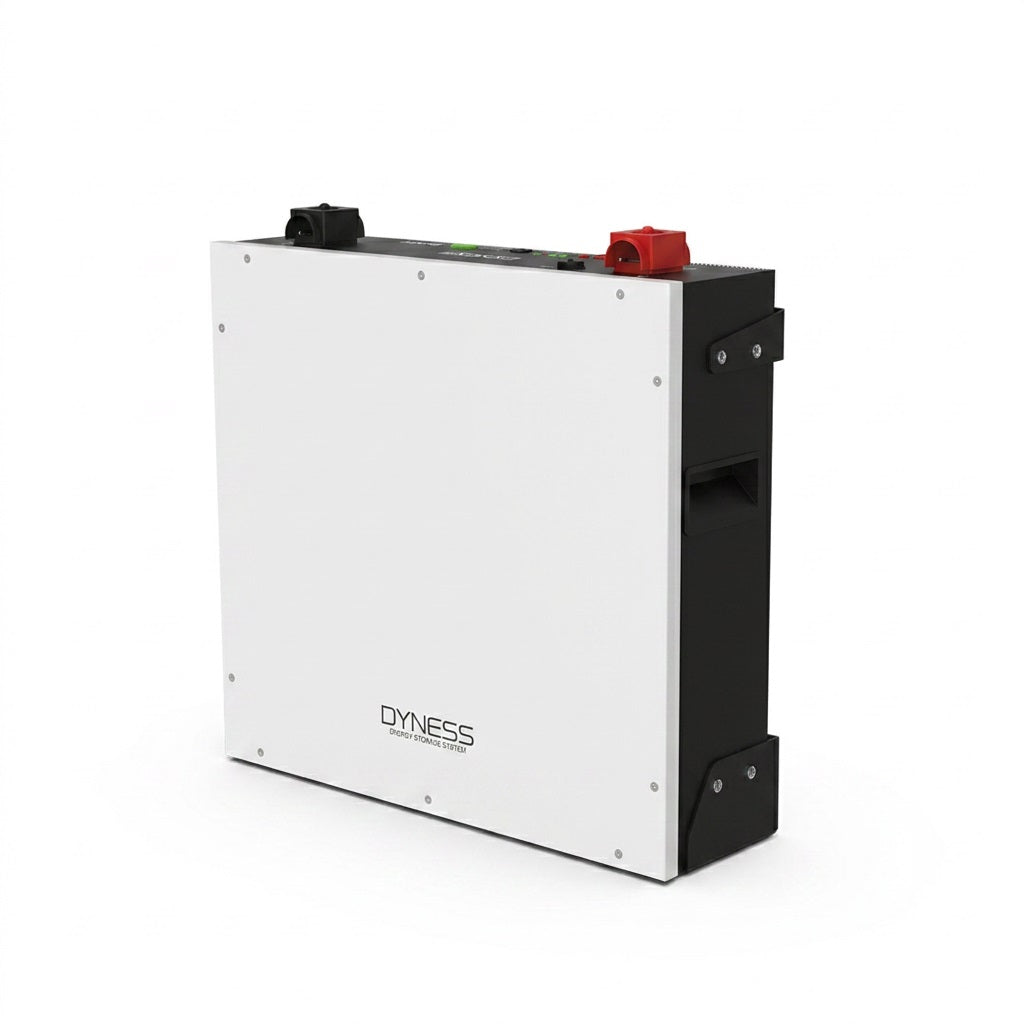

DYNESS Dl5.0C-V2 48V Dc 5.12Kwh Lith Bat

DL5.0C is designed for residential and small commercial applications, with up to 50 units in parallel and an energy range from 5.12 kWh to 256 kWh. It supports 1C discharge rate. With high cycle times and a long lifespan, it ensures worry-free electricity consumption.

Model: DL5.0C
Battery Type: LiFePO4
Nominal Battery Energy: 5.12 kWh
Nominal Capacity: 100Ah
Nominal Voltage: 51.2V
Operating Voltage: 44.8–57.6V
Recommended Charge & Discharge C Rate: 0.5C
Maximum Discharge C Rate: 1C
Recommended Charge/Discharge Current: 50A
Max. Charge/Discharge Current: Charge 75A / Discharge 100A
Peak Discharge Current: 110A (15s)
Depth of Discharge (DOD): 90%
Net Weight: 49.9 kg
Dimensions (W/D/H): 558 × 545 × 150 mm
Charging Temperature Range: 0–55°C / −20–55°C (with heating function)
Discharging Temperature Range: −20–55°C
Communication: CAN / RS485 / RS232
Cycle Life: ≥6000 Cycles
Protection Level: IP20
WiFi Module: Optional
Expansion: Up to 50 units in parallel
Certification & Safety Standard: UN38.3 / CE-EMC / IEC62619 / CEl-021
Compatible Inverters: SMA / Schneider / Victron Energy / Ingeteam / Solis / GoodWe / Growatt / Solplanet / Luxpower / DEYE / APsystem etc.
