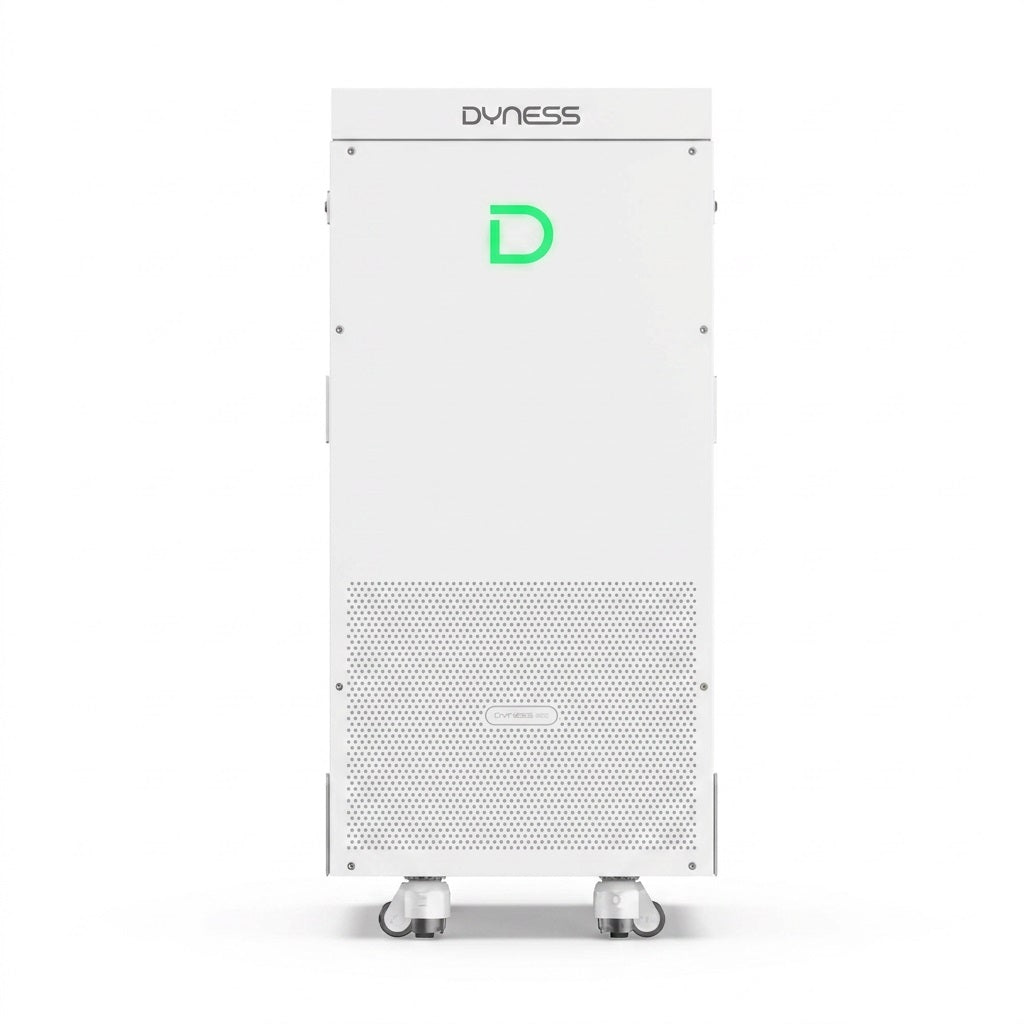

DYNESS POWERBRICK 16.07Kwh LITHIUM BATT.

PowerBrick Max
16.07 kWh
803.5 kWh maximum expansion
PowerBrick Max is a low-voltage product designed for household energy storage scenarios with a stylish and elegant appearance. It uses a high-capacity 314Ah battery to support 50 parallel units with a capacity range from 16.07kWh to 803.5kWh. It provides a highly safe, reliable, intelligent and friendly experience.

PowerBrick Max – Technical Specifications

Model: PowerBrick Max
Battery Type: LiFePO4 (LFP)
Nominal Battery Energy: 16.076 kWh
Usable Battery Energy: 15.272 kWh
Nominal Capacity: 314Ah
Nominal Voltage: 51.2V
Operating Voltage: 44.8–57.6V
Recommended Charge & Discharge C Rate: 0.45C (140A)
Max. Charge C Rate: 0.64C (200A)
Max. Discharge C Rate: 0.64C (200A)
Peak Discharge Current (25°C): 300A, 2 min
Recommended Charge & Discharge Power: 7.168 kW
Max. Charge Power: 10.24 kW
Max. Discharge Power: 10.24 kW
Depth of Discharge (DOD): 95%
Charge Temperature Range: 0–55°C
Discharge Temperature Range: −20–55°C
Net Weight: 116 kg
Dimensions (W/D/H): 435 × 233 × 857 mm
Protection Level: IP20
Communication: CAN / RS485
Cycle Life: ≥8000 Cycles
User Interface: WiFi + APP
Safety Protection: Built-in aerosol fire extinguisher
Installation: Floor-mounted / Wall-mounted
Regulating Wheel (4 pcs): 1 kg, 80/80 (optional)
Top Cover: 2 kg, 422/232/60 (optional)
Expansion: Up to 50 units in parallel
Warranty Period: 10 Years
Certification & Safety Standard: UN38.3 / IEC62619
Compatible Inverters: SMA / Victron Energy / Ingeteam / Solis / GoodWe / Growatt / Solplanet / Luxpower / Deye / APsystem etc.
