DYNESS Powerbrick14.336Kwh Lithium Bat

PowerBrick
14.336 kWh
716.8 kWh maximum expansion

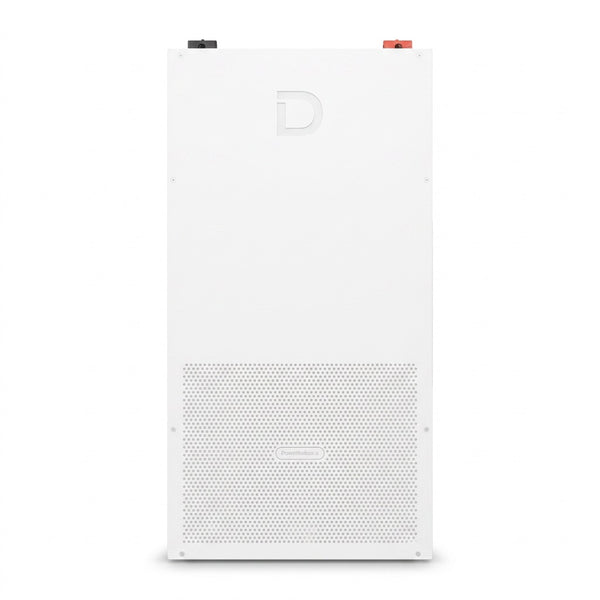

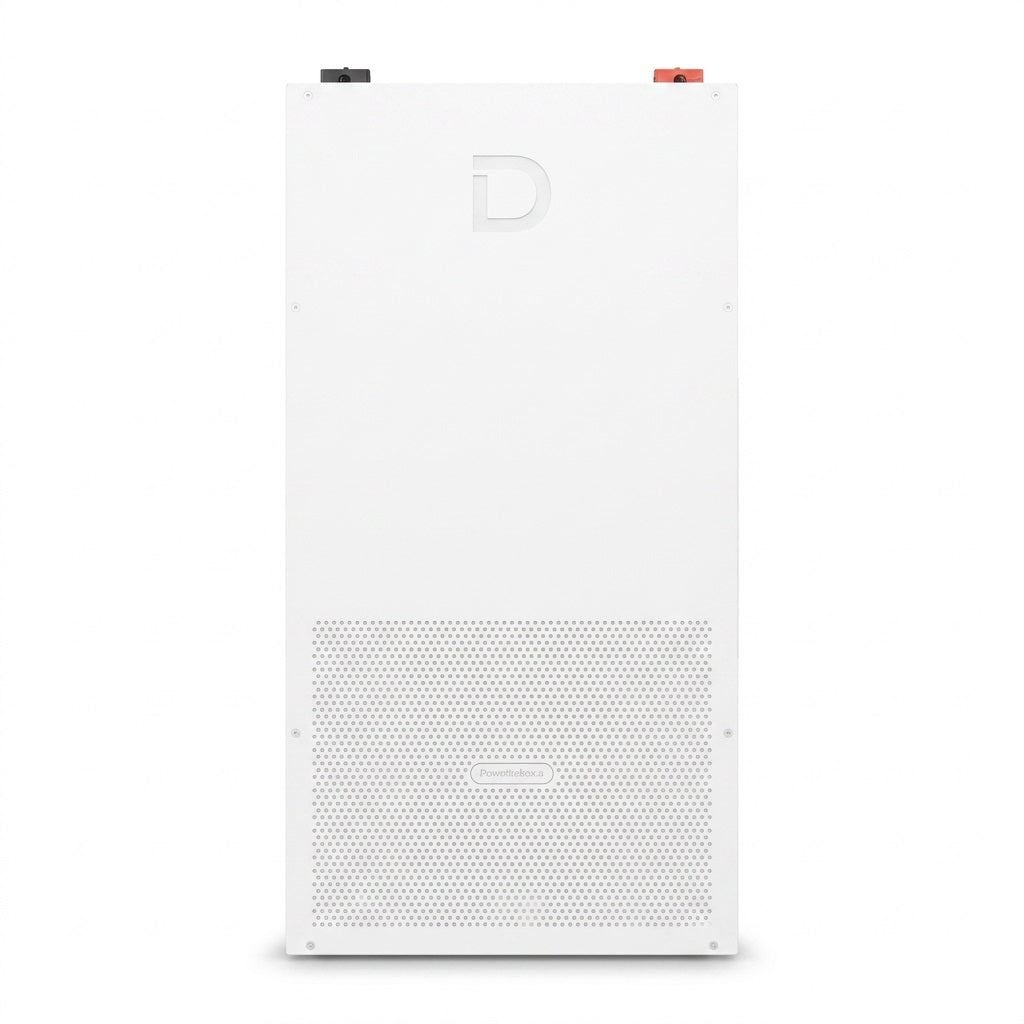

PowerBrick features premium 280Ah cores and an elegant design, supporting an impressive 14.336 kWh to 716.8 kWh maximum expansion via 50 units in parallel. It serves as an ultra-safe low voltage solar battery for seamless home battery storage for solar integration, providing household users with a reliable residential energy storage battery choice and a secure backup power supply for home safety.

PowerBrick Specifications

Model: PowerBrick
Battery Type: LiFePO₄
Nominal Battery Energy: 14.336 kWh
Nominal Voltage/Capacity: 51.2V / 280Ah
Recommended Charge/Discharge Current: 140A (0.5C)
Max. Charge Current: 200A
Max. Discharge Current: 200A
Peak Discharge Current: 300A (2 mins, 25°C)
Depth of Discharge: 95%
Communication: CAN / RS485
Cycle Life: ≥8000 cycles / 10 Years
Protection Level: IP20
Net Weight: 114 kg
Dimension (W/D/H): 435 / 233 / 857 mm (No wall-mounted bracket)
Regulating Wheel (4pcs): 1 kg, 80/80/80 (optional)
Top Cover: 2 kg, 422/232/60 (optional)
Maximum Parallel Modules: 50
Charging Temperature Range: 0°C~55°C / -20°C~55°C (optional)
Discharging Temperature Range: -20°C~55°C
WiFi Module: Built-in WiFi module; APP OTA function
Fire Protection System: Built-in aerosol fire extinguisher
Certification & Safety Standard: UN38.3 / CE-EMC / IEC62619
Compatible Inverters: SMA / Victron Energy / Ingeteam / Solis / GoodWe / Growatt / Solplanet / Luxpower / DEYE / Apsystem etc.
