EZVIZ 4-Channel 3MP Wireless CCTV Kit with 1TB Storage - 30m Night Vision

Specifications
Model
2K: CS-H3c-R100-1K3WKFL

2K+: CS-H3c-R100-1J4WKFL

Camera
Image Sensor 1/2.7”Progressive Scan CMOS
Minimum Illumination 0.01 Lux @ (F2.0, AGC ON), 0 Lux with IR
IR Night Vision Distance Up to 98 ft / 30 m
Shutter Speed Self-adaptive shutter
Lens 4mm @ F2.0, view angle: 82° (Horizontal), 98° (Diagonal)
Lens Mount M12
DNR 3D DNR
WDR Digital WDR
Day / Night Switch IR-Cut filter with auto-switching
Video & Audio
Max. Resolution
2K (2304 × 1296)

2K+ (2560 × 1440)

Frame Rate Self-adaptive during network transmission
Video Compression H.265 / H.264
Video Bit Rate Ultra-HD; HD; Standard. Adaptive bit rate.
Audio Bit Rate Self-Adaptive
Max. Bitrate 2 Mbps
Network
Wi-Fi Standard IEEE802.11b, 802.11g, 802.11n
Frequency Range 2.4 GHz ~ 2.4835 GHz
Channel Bandwidth Supports 20 MHz
Security 64 / 128-bit WEP, WPA / WPA2, WPA-PSK / WPA2-PSK
Transmission Rate 11b: 11Mbps, 11g: 54Mbps, 11n: 144Mbps
Wi-Fi Pairing AP Pairing
Protocol EZVIZ Cloud Proprietary Protocol
Interface Protocol EZVIZ Cloud Proprietary Protocol
Wired Network RJ45 × 1 (10M / 100M Adaptive Ethernet Port)
Function
Detection
Motion detection

AI-powered human shape detection

Customized Alert Area Supports
Integration Works with Alexa, Google Assistant
General Function Anti-Flicker, Dual-Stream, Heart Beat, Mirror Image, Password Protection, Watermark
Storage
Local Storage Supports microSD card (Up to 512 GB)
Cloud Storage Supports EZVIZ CloudPlay storage (Subscription required)
General
Operating Conditions -30 °C to 50°C ( -22 °F to 122 °F ), humidity 95% or less (non-condensing)
IP Grade IP67
Power Supply DC 12V / 1A
Power Consumption MAX. 12W
Dimensions 72 × 72 × 157 mm (2.83 × 2.83 × 5.98 inch)
Packaging Dimensions 227 × 100 × 92 mm (8.94 × 3.94 × 3.62 inch)
Weight(With Package) 539 g (19.01 oz)
Net Weight 330 g (11.64 oz)
Specifications
Model CS-X5S-R100-8W
IPC Access Capability
Wireless/Wired IPC Access Capability 3K × 8
Network Parameter
Antenna Number 2
Max Wireless Range 100m
Radio Frequency 2.4G
Ethernet Port One 10/100M adaptable Ethernet interface
Required Access Bandwidth 100Mbps
Video Output
VGA
1 channel (identical to HDMI output)

resolution up to 1920 × 1080/60Hz

HDMI
1 channel

resolution up to 2592 × 1944/30HZ

Audio/Video Codec
Recording Resolution 3K / 2K+ / 2K / 1080p / UXGA / 720p / VGA / 4CIF / 2CIF / CIF / QCIF
Video Encoding H.265, H.264
Decode Playback Supports 8 × 3K
Video Recording Management
Video Recording Mode Manual video recording; Motion detection recording; Scheduled video recording; Event triggered recording
Backup Mode Hard disk backup, Internet application backup
Playback Mode Instant playback ; Normal playback ; Event playback ; Tag playback; Log event playback
Open Protocol
Open Protocol Support EZVIZ; HIKVISION; ONVIF (2.5)
HDD
Interface Type One Built-in SATA
Capability 1 TB HDD pre-installed, support 1 TB to 8 TB 3.5-inch HDD
External Interface
Audio Input/ Output Not support
Hardware Reset Supports
USB2.0 Interface 1
Dimensions
Product Dimensions 235 × 270 × 44.5 mm (9.25 × 10.6 × 1.75 inch)
Packaging Dimensions 387 × 362 × 75 mm (15.2 × 14.3 × 3 inch)
Power Supply
DC 12V/1.5A
Consumption
Standby status ≤8W
Weight
Net Weight 932 g

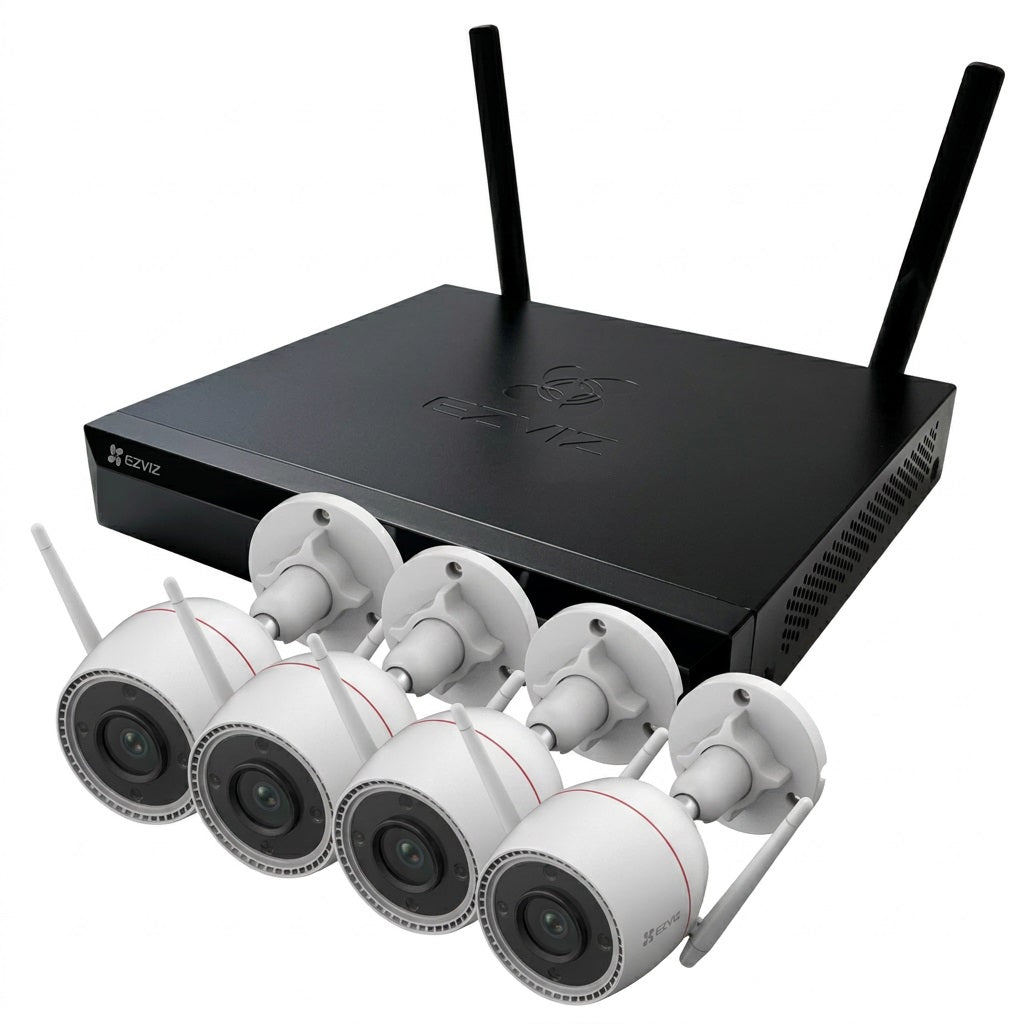

In the box
In the box - H3c 2K/2K+ Camera × 4
- X5S NVR (with HDD installed)
- HDMI Cable
- Power Adapter × 5
- Mouse
- Drilling Template × 4
- Waterproof Kit × 4
- Screw Kit × 4
- Regulatory Information × 4
- Quick Start Guide
