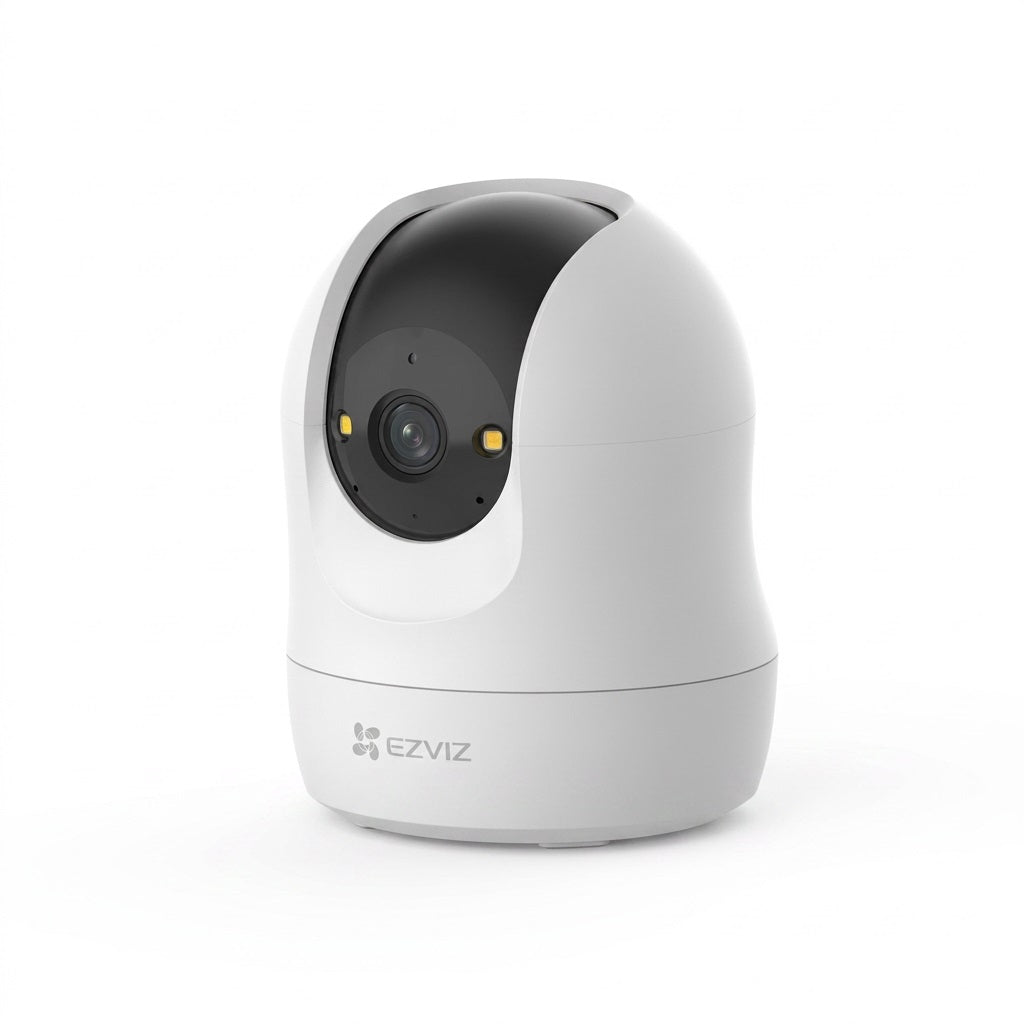

EZVIZ C6N 2K Smart Home Camera

Beyond crystal-clear. See every frame in 2K.
Uncover the unseen with the C6N indoor camera. Its 2K resolution transforms your space into a realm of rich, crystal-clear detail, letting you spot the little things that matter most. Whether you’re checking on a sleeping baby, or just ensuring everything’s exactly where it should be, the C6N ensures you see it all.

Specifications
Model CS-C6N-R200-1L3WFL
Camera
Image Sensor F2.0 @ 1/2.7" Progressive Scan CMOS
Shutter Speed Self-adaptive shutter
Lens
4mm @ F2.0, view angle: 98° (diagonal), 83° (horizontal), 44° (vertical)

Lens Mount M12
Day & Night IR-cut filter with auto-switching
DNR 3D DNR
WDR Digital WDR
Compression
Video Compression H.264 / H.265
Video Bit Rate Adaptive bit rate
Max. Resolution 2K (2304 × 1296)
Frame Rate Self-adaptive during network transmission
Network
Smart Alarm
Smart human motion detection, AI-powered human shape detection, Loud noise detection

Wi-Fi Pairing AP pairing / Bluetooth pairing
Protocol EZVIZ Cloud Proprietary Protocol
Interface Protocol EZVIZ Cloud Proprietary Protocol
Interface
Storage Supports microSD card (max. 512 GB)
Power Type-C
Wired Network RJ45 × 1 (10 M / 100 M self-adaptive Ethernet port)
Wi-Fi
Standard IEEE802.11b, 802.11g, 802.11n
Frequency Range
2.4 GHz: 2.4 GHz ~ 2.4835 GHz

Channel Bandwidth
Supports 20MHz

Security WPA/WPA2, WPA-PSK/WPA2-PSK
Transmission Rate
11b: 11 Mbps, 11g: 54 Mbps, 11n: 72 Mbps

Output Power (EIRP) 19 dBm
Antenna Gain 0.51 dBi
General
Operating Conditions
-10°C to 45°C (14°F to 113 °F )

Humidity 95% or less (non-condensing)

Power Supply DC 5V / 1A
Power Consumption Max. 5 W
IR Range Max. 10 meters (32.81ft)
Dimensions 88 × 88 × 113 mm (3.46 × 3.46 × 4.45 inch)
Packaging Dimensions 103 × 103 × 168 mm (4.06 × 4.06 × 6.61 inch)
Net Weight 222 g (0.49 lb)
In the box
In the box - C6N G1 Camera
- Power Adapter
- Power Cable
- Drill Template
- Mounting Plate
- Screw Kit
- Regulatory Information × 2
- Quick Start Guide
Certifications
Certifications CE / UL / WEEE / REACH / RoHS
