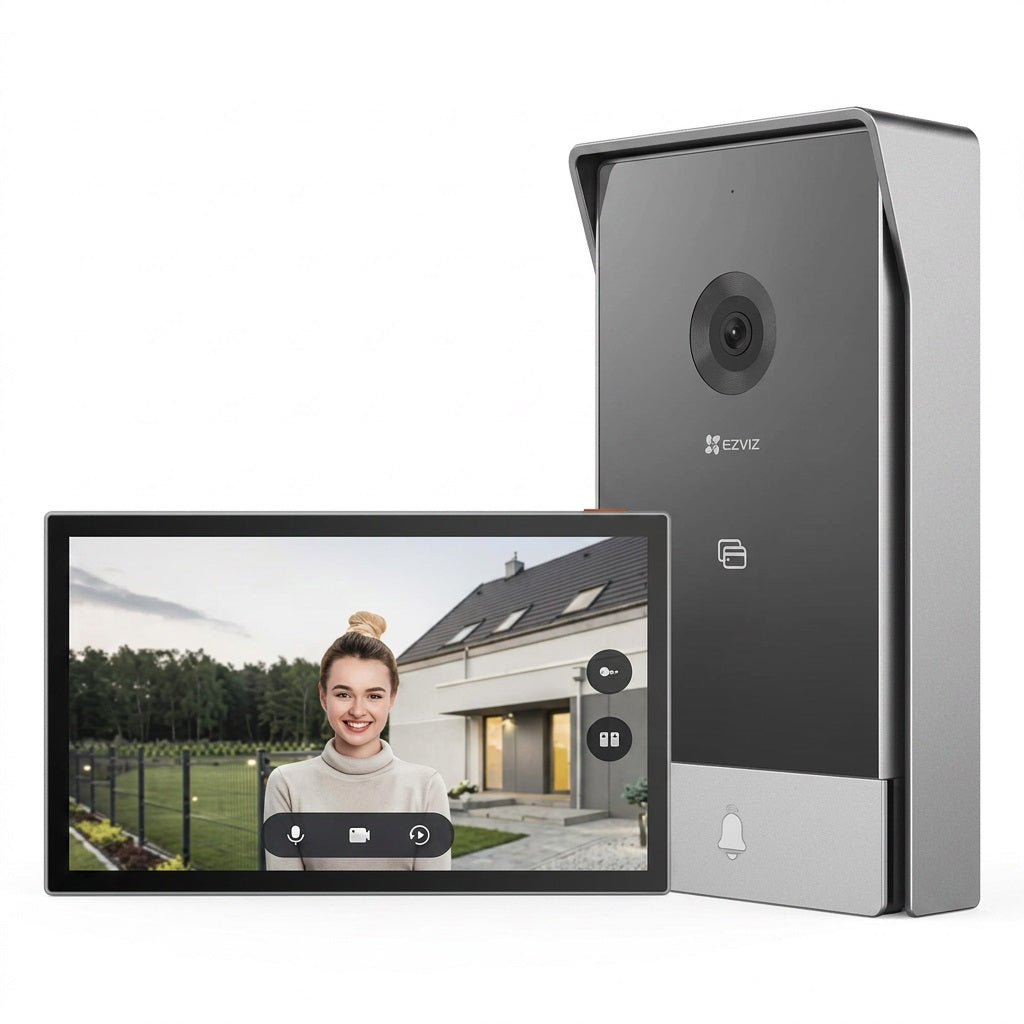

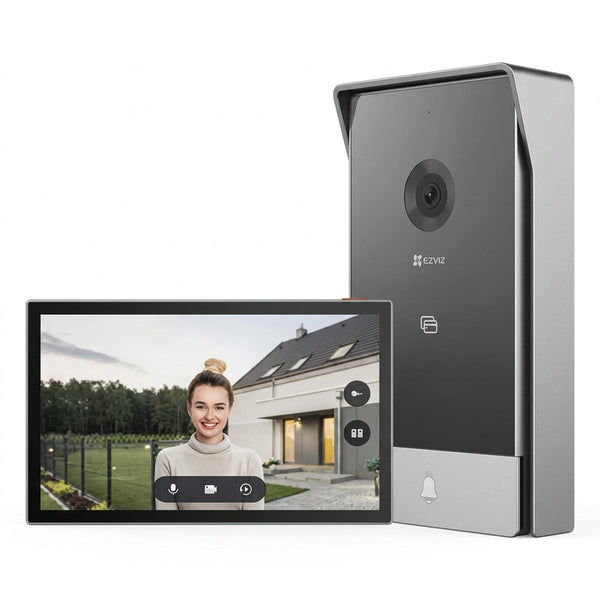

EZVIZ -CP7- 3MP Smart Home Video l

Home access made smart, safe & straightforward

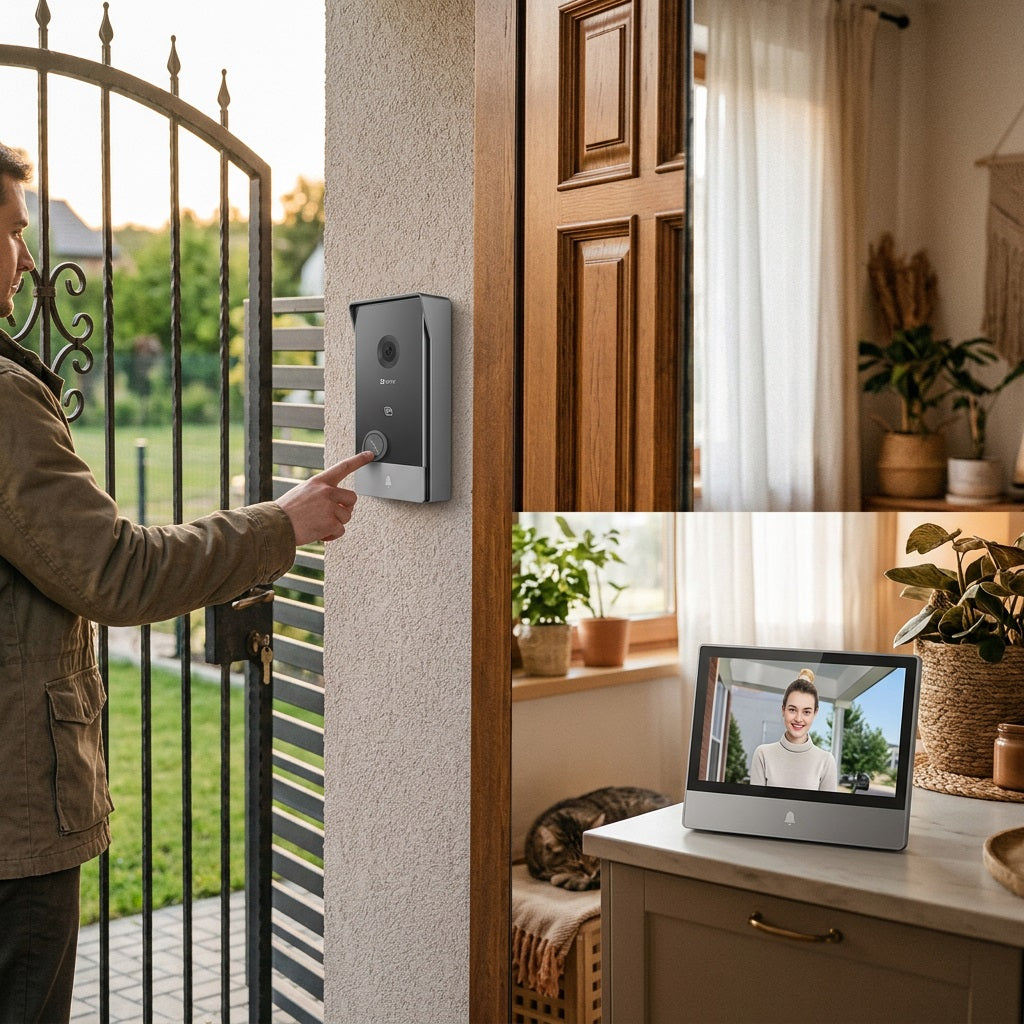

A game-changer for home intercom, the CP7 maximizes front door convenience and home safety like never before. For the first time, a video doorphone introduces unparalleled 2K vision, internet-connected app control, human motion detection, and even elegant design to greatly optimize the user experience. Front door interaction becomes a breeze. Homeowners can view, talk, and grant access to visitors even if they are not home.

Specifications
Model CS-CP7-R105-1W2TFC
Outdoor Doorbell
Image Sensor 1/2.7" Progressive Scan CMOS (Supports low light sensitivity)
Lens 2.0 mm @ F2.2,viewing angle: 162° (Diagonal)
Day & Night IR-cut filter with auto-switching, 850 nm infrared light × 2 (max. 6m)
Max. Resolution 2K, 2048 × 1296
DNR 2D / 3D DNR
Video Compression H.265 / H.264
Frame Rate Max: 15fps; Self-Adaptive during network transmission
Connection and Function
Connection Method Wired connection (2-Wired, capable with 4-Wired), digital signal transmission
Transmission Distance `d6 2 x 0.75mm`b2 , max. 50m `d6 2 x 1.5mm`b2 , max. 100m Twisted pair, max. 120m
Open the door (Gate) Support 2 wiring ports. 1-10m distance. The intercom panel provides a “dry”-contact connection, without an electric current, to connect to the button for automated gate, gate breaking capacity: 12V / 2A
Unlock (Electric strike plate) Support 2 wiring ports. 1-10m distance. The electric strike plate or lock that you order must have a mechanical memory; the power supply to the electric strike plate or lock must not exceed 12V / 1.1A, otherwise should do as user manual.

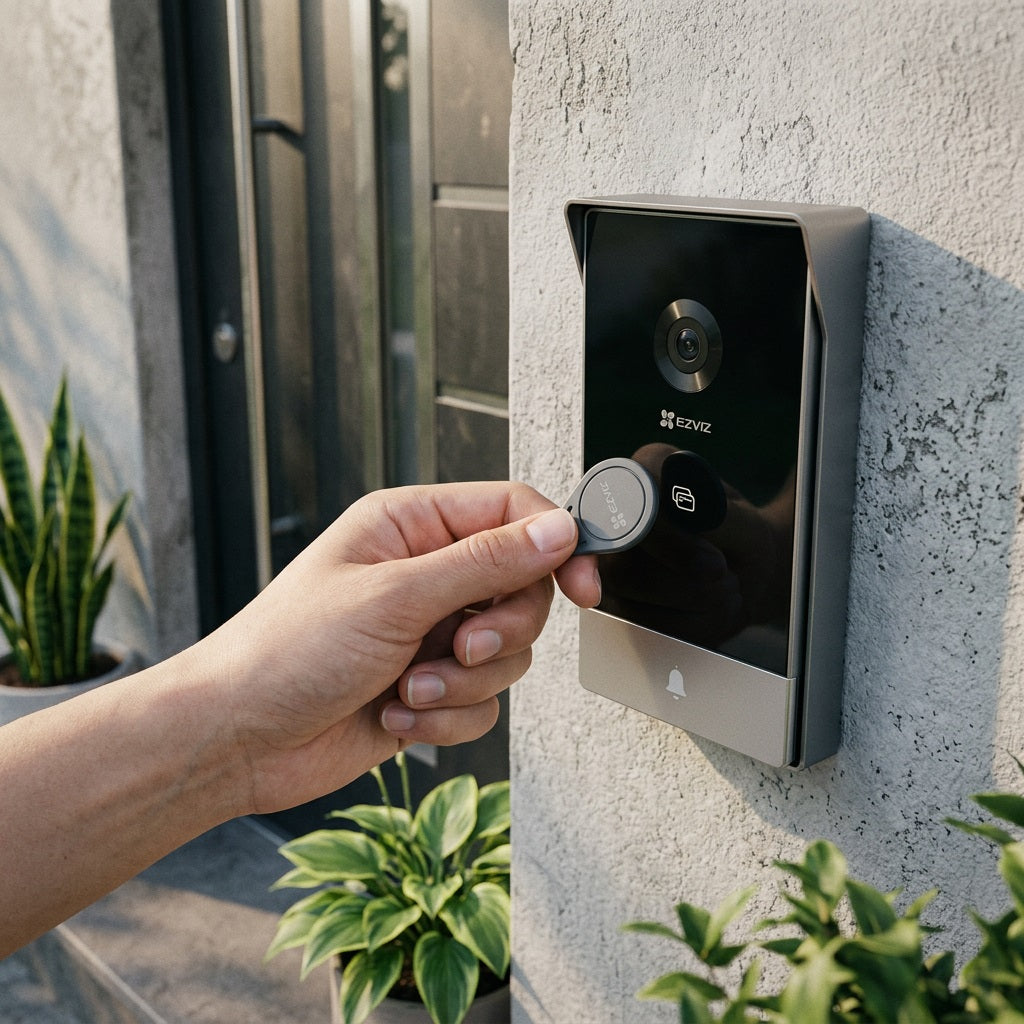

Door Open Methods 1.RFID badge unlock (CPU card x 3 pcs) 2.App remote unlock 3.Indoor display unlock
Outdoor Doorbell Interface
Audio Input Built-in high-sensitivity microphone
Audio Output Built-in high-power speaker
Doorbell Button Support, 1 button. The light can be set on or off.
Terminal Two wiring ports to connect screen. Two wiring ports to connect gate. Two wiring ports to connect electric strike plate.
Functions
Intelligent Alarm Smart human motion detection, Lingering Detection
Tamper Alarm Supports
Video Intercom Long-distance video two-way talk
General
Operation Conditions -30°C to 60°C , Humidity 95% or less (non-condensing)
IP Grade Waterproof, with shield cover
Size 161 × 87 × 20 mm (6.34 × 3.42 × 0.79 inch)
Power Supply 24V DC from screen
Interior Display
Display size 7” touch screen
Resolution 1024 × 600
Interface
Audio Input Built-in high-sensitivity microphone
Audio Output Built-in high-power speaker
Button Screen On / Off Button
Terminal Two wiring ports to connect outdoor doorbell
Storage Supports microSD card up to 512 GB Supports EZVIZ Cloud storage
Network Parameters
Protocol EZVIZ Cloud Proprietary Protocol
Interface Protocol EZVIZ Cloud Proprietary Protocol
Protocol EZVIZ Connect Protocol
Wi-Fi Parameters
Wi-Fi Standard IEEE802.11b, 802.11g, 802.11n, 802.11ac
Frequency Range 2.4G: 2.4 GHz ~ 2.4835 GHz 5G: 5.15 GHz ~ 5.25 GHz
Channel Bandwidth Supports 20MHz
Security 64 / 128-bit WEP,WPA / WPA2, WPA-PSK / WPA2-PSK
Transmission Rate 11b: 11Mbps, 11g: 54Mbps, 11n: 150Mbps, 11ac: 433.3Mbps
Function
Multiple ringtones Up to 20 ringtones
Functions Live view, playback, two-way talk, video call
General
Operation Conditions -10°C to 45°C, humidity 95% or less (non-condensing)
Size 180 × 111 × 15 mm (7.09 × 4.37 × 0.59 inch)
Power Supply DC 24V / 1A power supply, adaptor (100- 240Vac)
Power Consumption 8W, Max. 24W
Weight Net weight: 845 g (29.80 oz) With package: 1668 g (58.84 oz)
In the box
In the box - Monitor
- Wall Bracket for Monitor
- Power Adapter for Monitor
- Drill Template for Monitor
- Intercom Panel
- Drill Template for Intercom Panel
- Screwdriver
- Badges (×3)
- Screw Kit (×2)
- Wires and Wire Connectors
- DC 24V Power Supply Jack Connector Cable
- Regulatory Information
- Quick Start Guide
Certifications
Certifications CE / REACH / WEEE / RoHS
