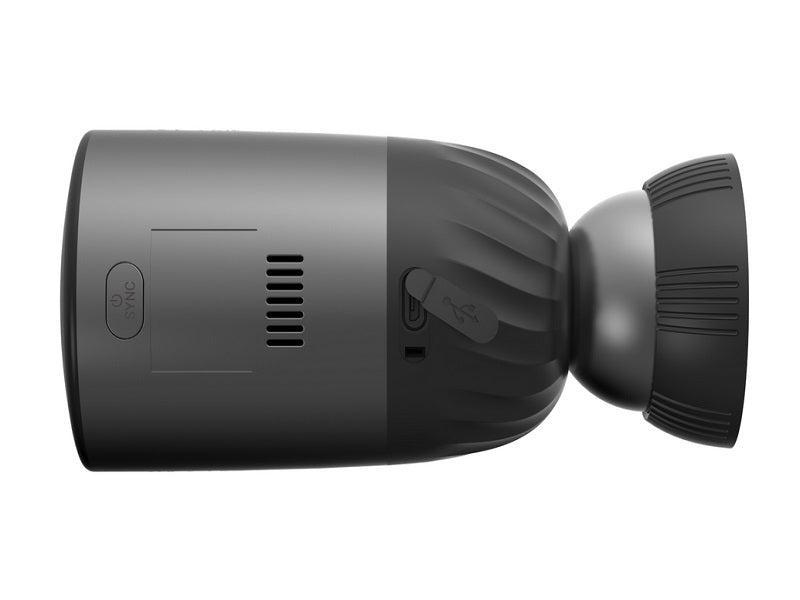

EZVIZ Cs-Bc1C-4K Smart Home Battery

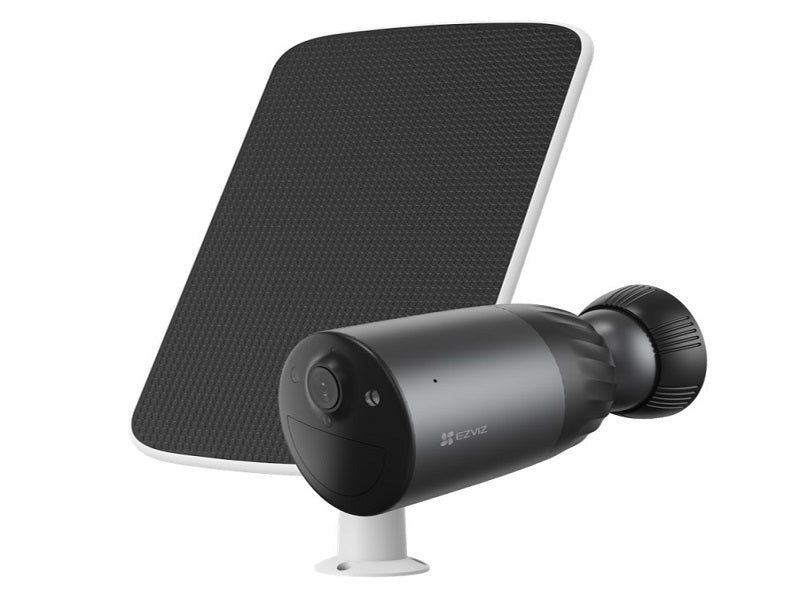

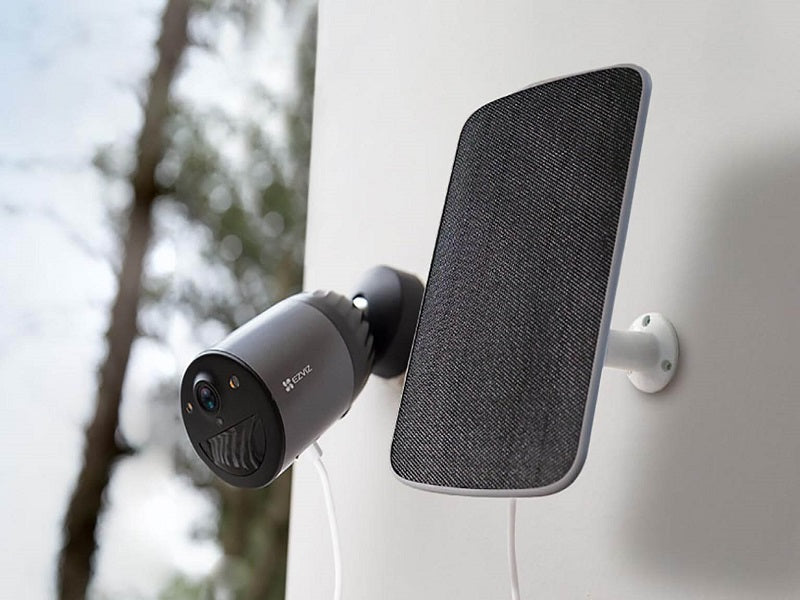

Smartly sharp in 4K. Reliably guards with more. Designed to provide long-lasting outdoor security with minimal efforts, the BC1c solar camera kit frees you from complex power cabling and reduces the location constraints on camera installation, by adding a high-efficiency solar panel to the high-performance battery camera. In addition to unparalleled 4K clarity, robust functionality, tested durability and green awareness, the camera also comes equipped with EZVIZ’s unique “Always-On-Video” Mode for automatic 24/7 protection.

Key features

• Image Sensor 1/2.7” 8-Megapixel Progressive Scan CMOS Sensor
• Minimum Illumination 0.01 Lux @(F1.6, AGC ON), 0 Lux with IR
• Shutter Speed Self-adaptive shutter
• Day & Night IR-Cut filter with auto-switching
• Max. Resolution 3840*2160/4K/8MP
• Frame Rate 15fps. Self-Adaptive during network transmission
• Video Bit Rate Ultra HD; Quad HD; Full HD; Hi-Def Adaptive bit rate.
• Max. Bitrate 4 Mbps
• Bluetooth Supports
• Transmission Rate 11b: 11Mbps, 11g: 54Mbps, 11n: 72Mbps, 11ax: 114Mbps
• Function
• Smart Alarm AI-Powered Human Shape Detection, AI-Powered Vehicle Detection
• Two-way Talk Supports
• General Function Anti-Flicker, Heart Beat, Password Protection, Watermark
• Operating Conditions -20 `b0C to 50 `b0C (-4 `b0F to 122 `b0F ), humidity 95% or less (Non-condensing)
• Power Supply DC 5V/2A (Compatible power adapter needs to be purchased separately)
• Product Dimensions 149.33 x 62.95 x 62.95 mm
• Packaging Dimensions 103 x 103 x 186 mm
• Performance Parameter*
• Data from EZVIZ Lab’s test results under standard testing conditions (STC): 1000W/m2, AM1.5,25℃, (38000-40000 LUX)
• Max. Power Current 660mA'b15%
• Max. Power 4.2W
• Operation Temperature
• (The working environment temperature range for battery camera charging should be maintained at 0-45`b0C )
• Solar Cell Type Monocrystalline solar cells
• Product Dimensions 216.25 `d7 149.58 `d7 2.4 mm (8.51 `d7 5.89 `d7 0.09 inch)
• Packaging Dimensions 230 `d7 161 `d7 78 mm (9.06 `d7 6.34 `d7 3.07 inch)
• Weight With package: 611 g (21.5 oz) Panel body without bracket: 334 g (11.78 oz)
• In the box - EZVIZ Solar Panel-F
• Magnetic Base
• Adjustable Mounting Bracket
• Screw Base
• Regulatory Information
• Quick Start Guide
• Pin
• Certifications CE / WEEE / ROHS / REACH

Specifications

• Camera with solar panel r100-2f8wfl
• Model CS-BC1c-R100-2F8WFL
• Lens 2.8mm@ F1.6; 135`b0 (Diagonal), 113`b0 (Horizontal), 60`b0 (Vertical)
• DNR 3D DNR
• Night Vision IR Distance:15m, Color Night Vision Distance:15m
• Video Compression H.265 / H.264
• Wi-Fi Standard IEEE802.11b, 802.11g, 802.11n, 802.11ax
• Frequency Range 2.4 GHz ~ 2.4835 GHz
• Channel Bandwidth Supports 20 MHz
• Security WPA-PSK/WPA2-PSK, WPA3-Personal
• Protocol EZVIZ cloud proprietary protocol
• Interface Protocol EZVIZ cloud proprietary protocol
• Minimum Network Requirement 8Mbps
• IP Grade IP65

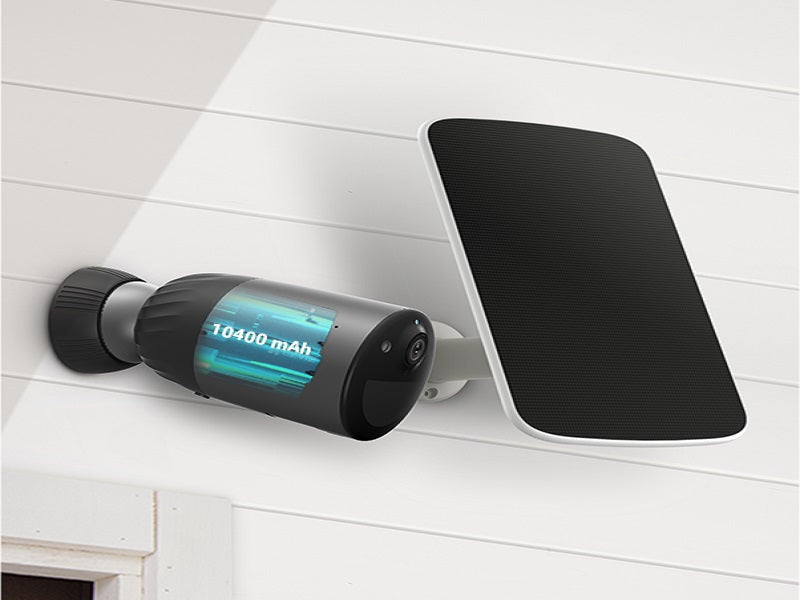

• Battery Capacity 10400 mAh
• Power Consumption Max. 10W
• Net Weight: 348g
• With Package: 671g
• Model CS-CMT-Solar Panel-F
• Power Voltage 6.36V'b15%
• Solar Cell Efficiency 21.6%
• 20~60 (-4~140),Humidity 90% or less (non-condensing)
• EZVIZ BC1c Camera
• Screw Kit*2
• Drill Template*2
