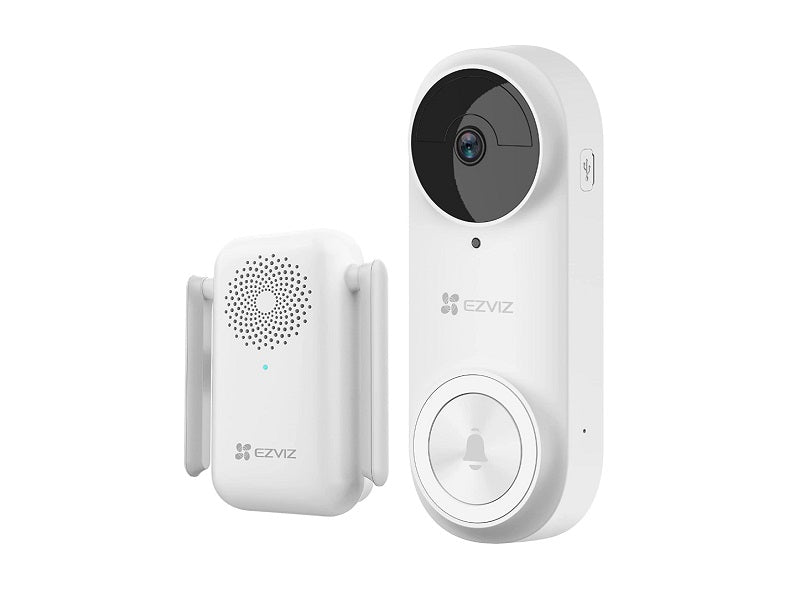

EZVIZ Cs-Db2 Wire-Free Video Doorbell

It's the new go-to video doorbell for any house owner. The EZVIZ DB2 Pro features ultra-sharp 2K+ resolution, wide field-of-view, large battery capacity, and extremely easy installation. Users can enjoy an extra-layer of privacy protection using the voice changer feature, and set up no-filming privacy zones. Clear, vivid view with EZVIZ’s first 2K+ video doorbell.

Key features

• Wire-free and worry-free front door protection
• Featuring the top resolution of its kind, the DB2 Pro renders crisp, clear video to capture every vivid detail of the visitors, and provides 5-meter infrared night vision for 24/7 protection.
• A well-thought-out solution in one kit.
• To make sure you hear the ring even from afar, EZVIZ pairs it with an indoor chime. What’s better, the chime can help extend your Wi-Fi signal, and boost the network for the doorbell to ensure it get connected stably – which many wireless doorbells may struggle with.
• Set up in minutes, and use for about 4 months.
• If you are less than a stellar electrician, this wireless, wire-free and weatherproof DB2 Pro could be your best option – stick it anywhere and enjoy long-lasting performance.
• See ultra-wide to get the whole picture.
• With a 176-degree viewing angle, you can easily see the postman from head to toe and know where he places your package. The doorbell also comes with several different mounting plates in the package, which can help adjust the angle of installation to optimize the doorbell’s vision.
• A smart doorkeeper to keep you in the know.
• With both human-shape and PIR detection capabilities, the device is smart enough to distinguish people from pets or objects. You can customize the alert trigger conditions to adjust its sensibility.
• Talk, before you get the door.
• Answer before you get the door for friends or deliveries! Using the EZVIZ App, you can talk and react with only a simple tap.
• Easy to use but hard to tamper with.
• In case the doorbell is forcibly removed, a sharp alarm will sound and a mobile alert will be instantly sent to you. What’s more, the DB2 Pro prohibits unauthorized use after theft, thanks to the account binding restriction.
• Reduce video storage space and ease network loads.
• The doorbell features the advanced H.265 video compression technology, achieving same or better video quality while reducing required bandwidth and storage space.
• We protect your data and privacy.
• Your data security and privacy is the cornerstone of every product we design. Data activities between the device and the EZVIZ Cloud is encrypted from end to end. Only you have the keys to decrypt your data.
• Safe, flexible storage options.
• You can insert a microSD card onto the indoor chime to save your recordings locally, without worrying about any data loss even if the doorbell is damaged or lost. You can also subscribe to EZVIZ CloudPlay for unlimited storage space and an additional layer of data protection.
• [Specifications]
• Image Sensor 1/2.7" Progressive Scan CMOS (Supports low light sensitivity)
• Day & Night IR-cut filter with auto-switching
• Max. Resolution 2544 `d7 1888
• PIR Sensor
• Sending Distance Max. 5 m (16.4 ft)
• Audio Input Built-in high-sensitivity microphone
• Audio Output Built-in high-power speaker
• Reset button Yes
• Intelligent Alarm PIR + human shape smart motion detection
• Tamper Alarm Sound and light anti-dismantling alarm (supports sending alerts to the smartphone)
• Video Intercom Long-distance video two way talk
• Operating Conditions -20`b0C to 50`b0C (-4`b0F to 122`b0F), Humidity 95% or less (non-condensing)
• Size 150 `d7 58 `d7 32 mm (5.91 `d7 2.28 `d7 1.24 inch)
• Chime
• Size 100 `d7 55 `d7 35 mm (3.94 `d7 2.17 `d7 1.38 inch)
• Storage Supports microSD card up to 256 GB

Specifications

• A0-2c5wpbr-b
• Model CS-DB2-A0-2C5WPFBR
• Lens 2.0 mm @ F2.0, view angle: 176`b0 (Diagonal)
• DNR 2D/3D DNR
• Video Compression H.265 / H.264
• Frame Rate Max: 15fps; Self-Adaptive during network transmission
• Sensing Angle 100`b0
• Sensitivity User adjustable (High, Medium and Low Sensitivity)
• Protocol EZVIZ Cloud Proprietary Protocol
• Interface Protocol EZVIZ Cloud Proprietary Protocol
• Wi-Fi Standard IEEE802.11b, 802.11g, 802.11n
• Frequency Range 2.4 GHz ~ 2.4835 GHz
• Channel Bandwidth Supports 20 MHz
• Security 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK
• Transmission Rate 11b: 11Mbps, 11g :54Mbps, 11n :150Mbps
• Ingress Protection Grade IP65
• Weight 241.35 g (8.5 oz)
• Battery Capacity 5200mAh rechargeable lithium battery
• Power Supply DC5V'b110% 2A
• Power Consumption Max. 2W
• Power Supply AC 110 ~ 240V
• Audio Output 72 dB within 1 meter
• Weight 120 g (4.2 oz)
• 1 x DB2 Pro Video Doorbell
• 1 x Chime
• 1 x Mounting Plates
• 2 x Inclined Mounting Plates
• 2 x Screwdriver and Screw Kits
• 1 x Foam Sticker
• 1 x Plate Foam
• 1 x Drill Template
• 1 x Pin
• 3 x U-shaped Wire and Wire Connectors
• 1 x Power Cable
• 1 x Quick Start Guide
• 1 x Installation Guide
• 1 x Regulatory Information
