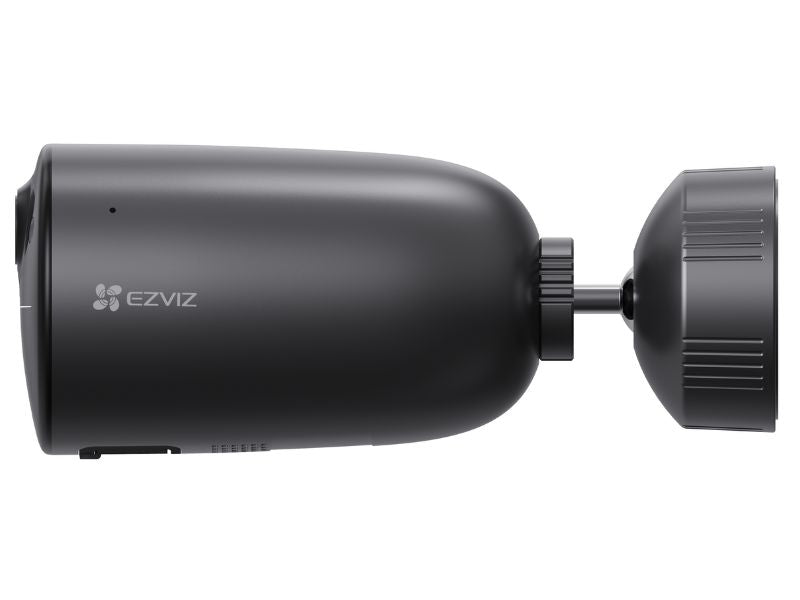

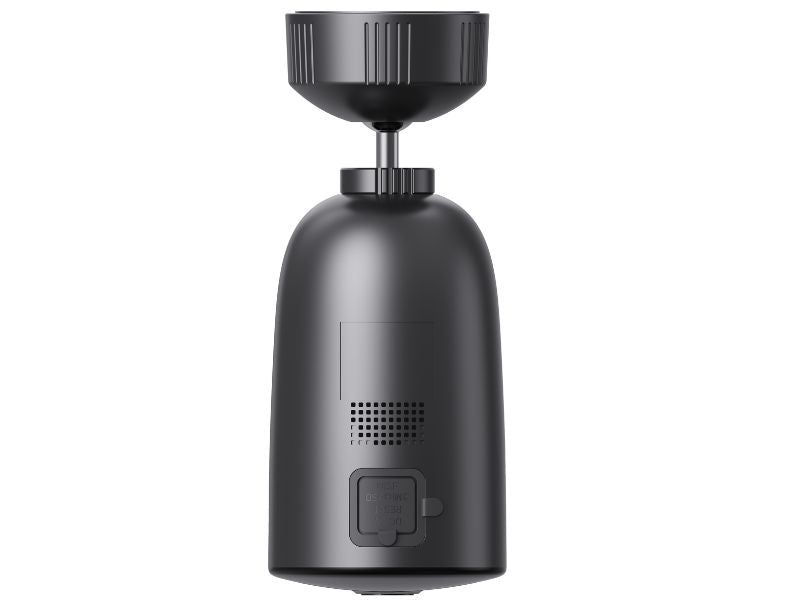

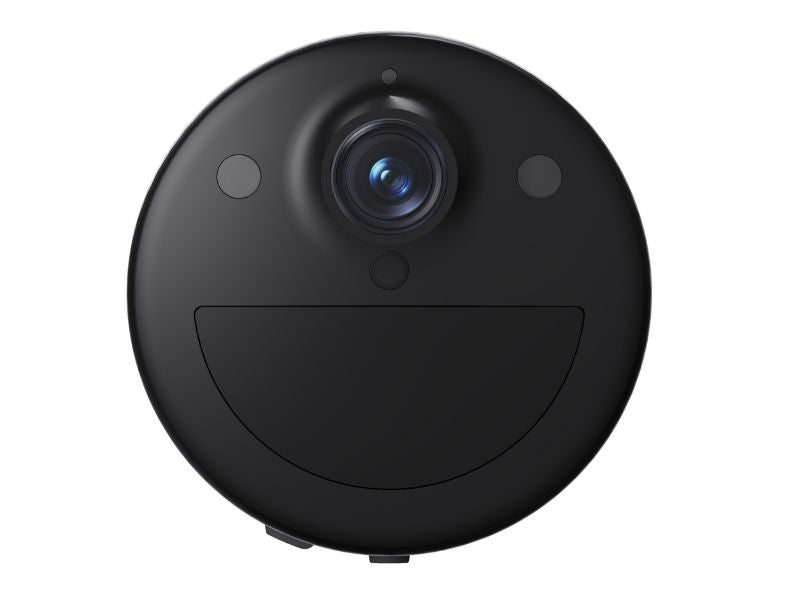

EZVIZ Cs-Eb3-2K 4G Smart Home Battery

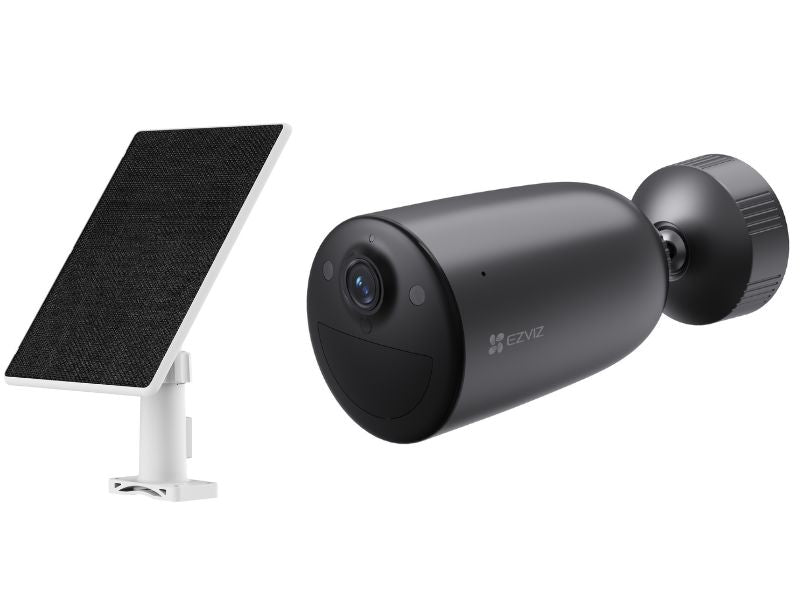

The EB3 4G Kit is a ready-to-use and reliable security solution, regardless of where it is installed or where there is access to Wi-Fi and electricity. The kit eliminates battery anxiety and operates in a more sustainable way by combining a sleek, bullet-shaped EB3 4G camera with a high-efficiency 5W solar panel. Trust this perfect duo to monitor your property around the clock using EZVIZ AOV technology, while the smart detection features keep an eye out for any activity. Minimum Illumination 0.01 Lux @(F1.6, AGC ON), 0 Lux with IR.

Key features

• A perfect duo for uninterrupted protection
• Image Sensor 1/2.8” 3-Megapixel Progressive Scan CMOS Sensor
• Shutter Speed Self-adaptive shutter
• Day & Night IR-Cut filter with auto switch
• Max. Resolution 2K (2304 `d7 1296)
• Video Bit Rate Quad-HD; Full HD; Hi-Def; Adaptive bit rate
• Max. Bitrate 1.5 Mbps
• Bluetooth Supports
• Frequency Bands IN LTE-FDD'a3°B1/B3/B5/B8 IN LTE-TDD'a3°B34/B38/B39/B40/B41 EU LTE-FDD'a3°B1/B3/B5/B7/B8/B20/B28 LA LTE-FDD'a3°B2/B3/B4/B5/B7/B8/B28/B66
• Function
• Smart Alarm AI-Powered Human Shape Detection, AI-Powered Vehicle Shape Detection
• Two-way Talk Supports
• General Function Anti-Flicker, Heart Beat, Password Protection, Watermark
• Local Storage Supports microSD card (Up to 512 GB)
• Cloud Storage Supports EZVIZ CloudPlay storage (Subscription required)
• Operating Conditions -20 `b0C to 50 `b0C (-4 `b0F to 122 `b0F ), humidity 95% or less (Non-condensing)
• Power Supply DC 5V/2A (Compatible power adapter needs to be purchased separately)
• Product Dimensions 153.3 mm `d7 62.95 mm `d7 62.95 mm
• Packaging Dimensions 103 `d7 103 `d7 186 mm
• Weight Net Weight: 222.7 g (7.85 oz) With Package: 569 g (20.07 oz)
• Performance Parameter
• Max. Power 5 W
• Operating Conditions -20 `b0C to 60 `b0C (-4 `b0F to 140 `b0F), Humidity 90% or less (non-condensing)
• Solar Cell Type Monocrystalline solar cells
• Product Dimensions 202.7 `d7 148 `d7 2.5 mm (7.98 `d7 5.83 `d7 0.10 inch)
• Packaging Dimensions 225 `d7 170 `d7 70 mm (8.86 `d7 6.69 `d7 2.76 inch)
• Adjustable Mounting Bracket
• Screw Base
• Drill Template
• Certifications CE / REACH / WEEE / RoHS

Specifications

• Camera with solar panel KIT cs-eb3/sp-4g
• Model CS-EB3-R200-1K3FL4GA
• Lens 2.8mm@ F1.6; 130`b0 (Diagonal), 108`b0 (Horizontal), 56`b0 (Vertical)
• DNR 3D DNR
• Night Vision IR Distance:15m, Color Night Vision Distance:15m
• Frame Rate Max:15fps; Self-Adaptive during network transmission
• Video Compression H.265 / H.264
• IP Grade IP65
• Battery Capacity 5200 mAh
• Power Consumption Max. 10W
• Model CS-PSP5-R100-3M
• Power Voltage 5.7 V
• Power Current 877 mA
• Open Circuit Voltage 6.9 V
• Short Circuit Current 0.92 A
• Solar Cell Efficiency 23.50%
• Power Cable Length 3 meter
• Weight 656 g (23.14 oz)
• In the box - EB3 4G Camera
• Solar Panel 5W
• Screw Kit `d7 2
• Regulatory Information `d7 4
• Quick Start Guide `d7 2
