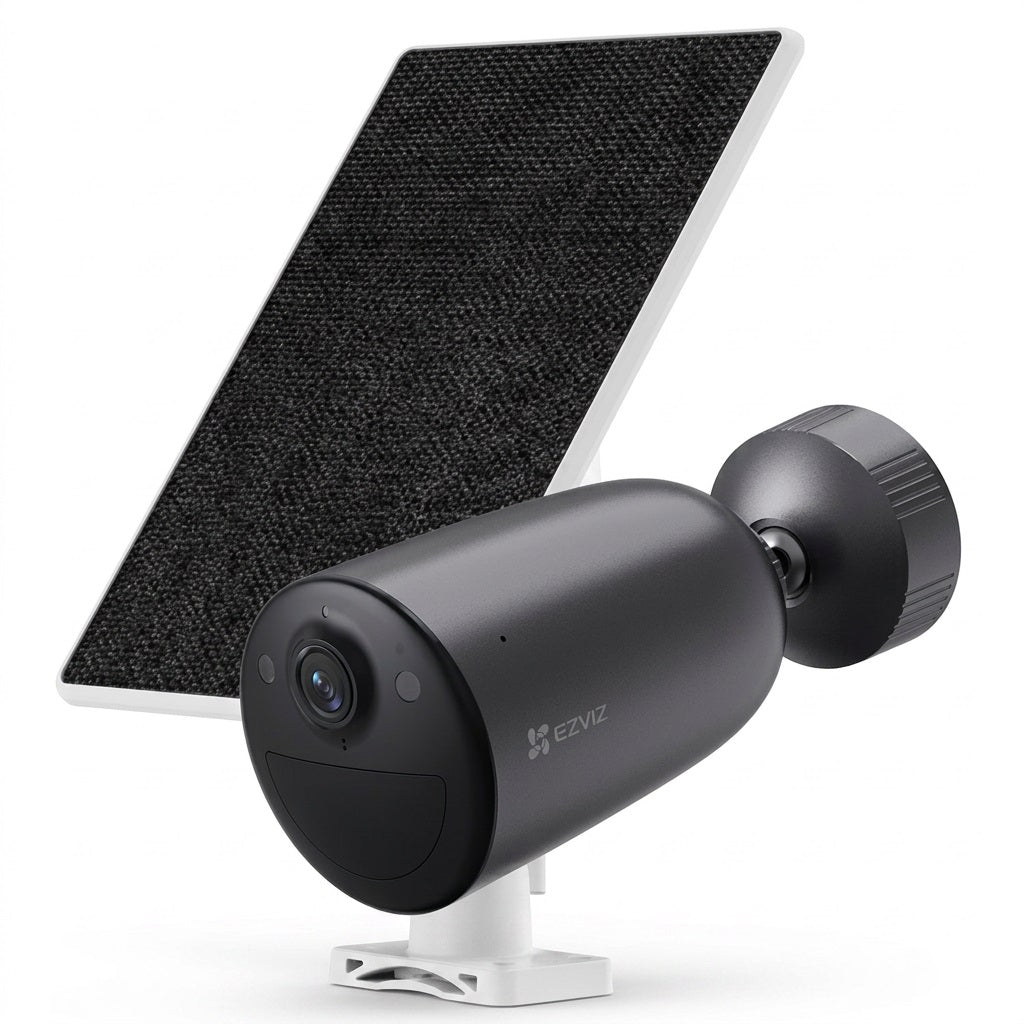

EZVIZ EB3 2K Solar Battery Camera Kit - 5W Panel, AOV All-Day Recording

Reliably on guard, smartly in action

Meet the EB3 Solar Panel Kit, where cutting-edge AOV technology meets endless power. With its smart 5W solar panel, this battery-powered camerastays charged and ready, freeing you from cables and constant recharging.Enjoy crystal-clear coverage and all-day recording, backed by Wi-Fi and smart detection. Perfect for securing your backyard, farm, or garage with minimal effort and maximum peace of mind.

Specifications
Model CS-EB3-R200-1K3WFL
Camera
Image Sensor 1/2.8” 3-Megapixel Progressive Scan CMOS Sensor
Minimum Illumination 0.01 Lux @(F1.6, AGC ON), 0 Lux with IR
Shutter Speed Self-adaptive shutter
Lens 2.8mm@ F1.6; 130° (Diagonal), 108° (Horizontal), 56° (Vertical)
Day & Night IR-Cut filter with auto-switching
DNR 3D DNR
Night Vision IR Distance:15m, Color Night Vision Distance:15m
Video & Audio
Max. Resolution 2K (2304 × 1296)
Frame Rate 15fps. Self-Adaptive during network transmission
Video Compression H.265 / H.264
Video Bit Rate Qusd-HD; Full HD; Hi-Def; Standard adaptive bit rate.
Audio Bit Rate Self-Adaptive
Max. Bitrate 1.5 Mbps
Network
Bluetooth Supports
Wi-Fi Standard IEEE802.11b, 802.11g, 802.11n, 802.11ax
Frequency Range 2.4 GHz ~ 2.4835 GHz
Channel Bandwidth Supports 20 MHz
Security WPA-PSK/WPA2-PSK, WPA3-Personal
Transmission Rate 11b: 11Mbps, 11g: 54Mbps, 11n: 72Mbps, 11ax: 114Mbps
Wi-Fi Pairing AP pairing
Protocol EZVIZ cloud proprietary protocol
Interface Protocol EZVIZ cloud proprietary protocol
Minimum Network Requirement 4Mbps
Function
Smart Alarm AI-Powered Human Shape Detection, AI-Powered Vehicle Shape Detection
Two-way Talk Supports
General Function Anti-Flicker, Heart Beat, Password Protection, Watermark
Storage
Local Storage Supports microSD card (max. 512 GB)
Cloud Storage EZVIZ CloudPlay storage (Subscription required)
General
Operating Conditions -20 °C to 50 °C (-4 °F to 122 °F ), humidity 95% or less (Non-condensing)
IP Grade IP65
Power Supply DC 5 V / 2 A (Adapter needs to be purchased separately)
Battery Capacity 5200 mAh
Power Consumption Max. 10W
Product Dimensions 153.3 × 62.95 × 62.95 mm (6.04 × 2.48 × 2.48 inch)
Packaging Dimensions 103 × 103 × 186 mm (4.06 × 4.06 × 7.32 inch)
Weight Net weight: 222.7 g (7.86 oz) With Package: 569 g (20.07 oz)
Specifications
Model CS-PSP5-R100-3M
Performance Parameter
Power Voltage 5.7 V
Power Current 877 mA
Open Circuit Voltage 6.9 V
Short Circuit Current 0.92 A
Max. Power 5 W
Interface Type-C
Solar Cell Efficiency 23.50%
Operating Conditions -20 °C to 60 °C (-4 °F to 140 °F), Humidity 90% or less (non-condensing)
IP Grade IP65
Mechanical Data
Solar Cell Type Monocrystalline solar cells
Power Cable Length 3 meter
Product Dimensions 202.7 × 148 × 2.5 mm (7.98 × 5.83 × 0.10 inch)
Packaging Dimensions 225 × 170 × 70 mm (8.86 × 6.69 × 2.76 inch)
Weight 656 g (23.14 oz)
In the box
In the box - EB3 Camera
- Solar Panel 5W
- Screw Base
- Power Cable
- Drill Template
- Screw Kit × 2
- Regulatory Information
- Quick Start Guide
Certifications
Certifications CE / REACH / WEEE / RoHS
