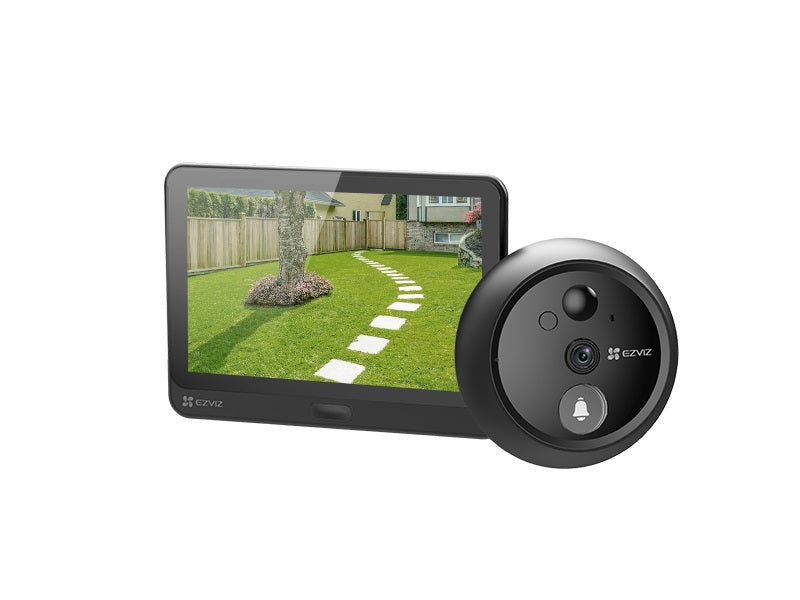

EZVIZ Cs-Hp4 Wire-Free Peephole Doorbell

Seamlessly view live videos from both the EZVIZ App and the convenient 4.3-inch color screen. The screen provides vivid 1080p clarity, making it effortless for the elderly and children to know what’s happening outside. Once the doorbell button is activated by the visitor, the built-in chime rings out to remind people inside. In the meanwhile, you will receive a prompt video call via EZVIZ App.

Key features

• View your front door anytime and anywhere
• Never miss a visitor

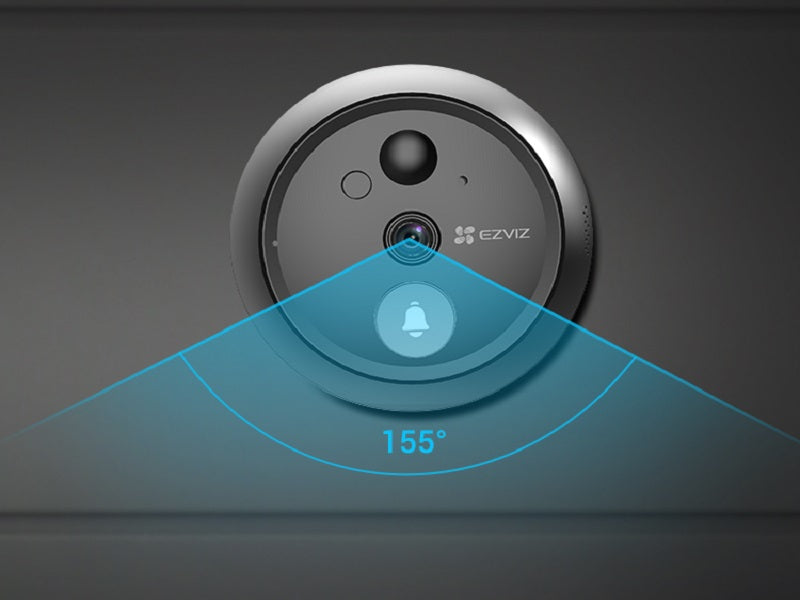

• Equipped with a 155-degree lens, the HP4 delivers wide field-of-view for apartment dwellers. It is also smart enough to automatically shift between day and night modes.
• The HP4 features a 4,600 mAh rechargeable lithium battery. The standby time can reach up to 150 days'b9 with the smart power-saving functionality.
• Installation Parameters
• Supportive Door Diameter 35 to 105 mm (1.38 to 4.13 inch)
• Day/Night Switch ICR infrared filter
• IR Distance Max. 3 m
• Max. Resolution 1080p / 2MP
• Storage Interface MicroSD card slot (max. 512 GB)
• Audio Input Built-in high sensitivity microphone
• Audio Output Built-in high-power speaker
• Buttons Doorbell button, power button, Screen wake up button
• Video Intercom Local and remote video intercom
• General Function Cloud video encryption and image encryption
• Wireless
• Operating Conditions -10`b0C to 45`b0C (14`b0F to 113 `b0F ), Humidity 95% or less

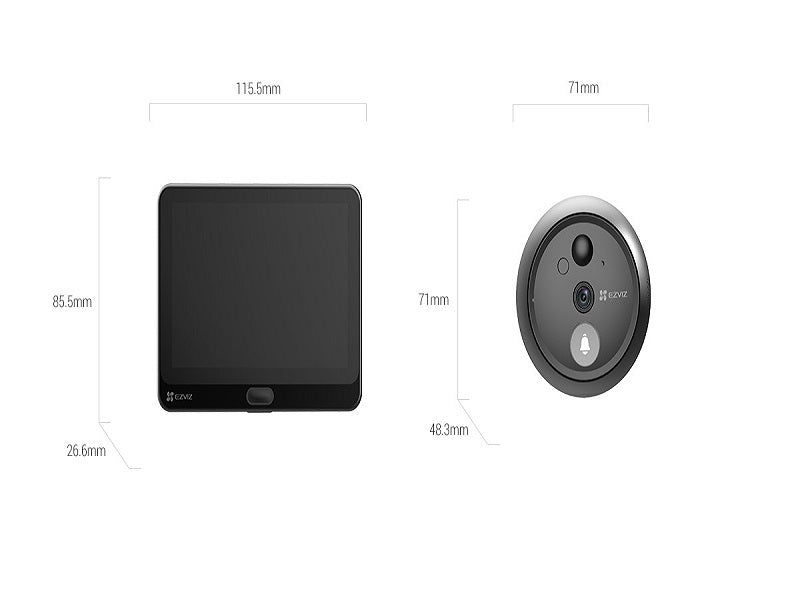

• Dimension Screen and Base: 115.5 `d7 85.5 `d7 24.5 mm (4.55 `d7 3.37 `d7 0.96 inch)
• Peephole Doorbell: 71 `d7 71 `d7 48.3 mm (2.80 `d7 2.80 `d7 1.90 inch)
• Panel
• Mounting Base
• Quick Start Guide

Specifications

• Cs-hp4(2wpfbs)
• Provides peace of mind 24/7
• Wire-free protection with 5-month battery life
• Model CS-HP4
• Supportive Hole Diameter 15.5 to 50 mm
• Sensor 1/3" Progressive Scan CMOS
• Lens 2.0 mm @ F2.2, visual angle (diagonal):155`b0
• Video Frame Rate 15fps
• Protocol EZVIZ Cloud Proprietary Protocol
• Wi-Fi Standard IEEE802.11b, 802.11g, 802.11n
• Frequency Range 2.4 GHz ~ 2.4835 GHz
• Channel Bandwidth Supports 20 MHz
• Security 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK, WPS
• Transmission Rate 11b: 11Mbps, 11g :54Mbps, 11n :150Mbps
• Screen 4.3-inch color screen
• Color Black
• Power Supply DC5V'b110%
• Power Consumption Max. 2.2W
• Weight 302 g (10.65 oz)
• In the box - HP4 Peephole Doorbell
• Power Cable (1 m / 3.3 ft)
• Screws `d7 6
