EZVIZ Eb8-4K-4G Smart Home Battery

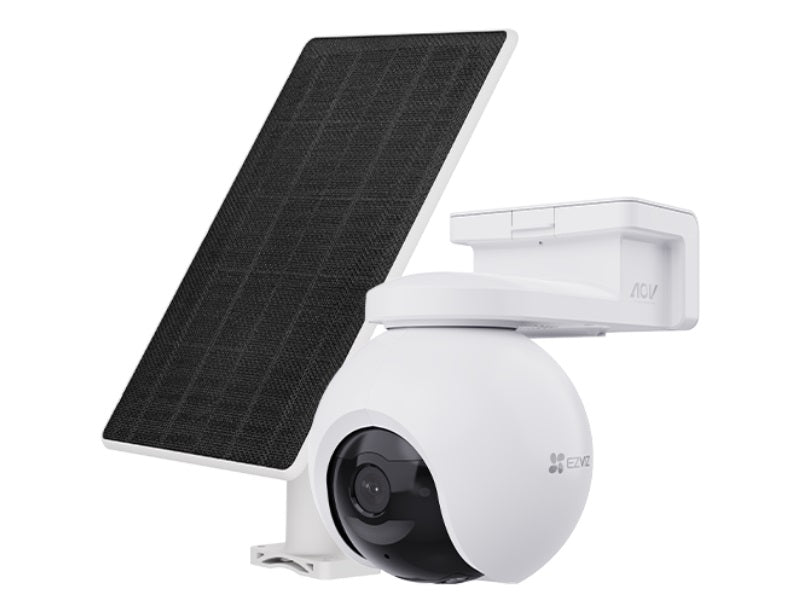

The EB8 Pro 4G Kit is a complete security bundle that includes everything you need for reliable, off-grid protection in one package. Its large-capacity solar panel powers the camera continuously, while the AOV mode 2.0 ensures that you never miss a moment. The camera automatically switches between 4G and Wi-Fi to stay connected, and advanced detection alerts you to people, vehicles, and even wild animals. This hassle-free kit delivers dependable, high-definition security — ideal for homes, cabins, farms, or any remote location. Minimum Illumination 0.01 Lux @(F1.2, AGC ON), 0 Lux with IR.

Key features

• Image Sensor 1/2.8`` 8-Megapixel Progressive Scan CMOS Sensor
• Shutter Speed Self-adaptive shutter
• Day & Night IR-cut filter with auto switch
• Frame Rate 15fps. Self-adaptive during network transmission
• Video Bit Rate Ultra-HD; Full HD; Hi-Def; Adaptive bit rate.
• Max. Bitrate 4 Mbps
• Function
• Smart Alarm
• AI-powered human shape detection
• AI-powered vehicle shape detection
• AI-powered wild animal detection
• Two-Way Talk Supports
• General Function Anti-Flicker, Heart Beat, Password Protection, Watermark
• Transmission Rate 11b: 11Mbps, 11g: 54Mbps, 11n: 72Mbps, 11ax: 114Mbps
• Local Storage Supports microSD card (max. 512 GB)
• Cloud Storage Supports EZVIZ CloudPlay storage (Subscription required)
• 20 `b0C to 50 `b0C (-4 `b0F to 122 `b0F)
• (Adapter needs to be purchased separately)
• Product Dimensions 184 `d7 102 `d7 168 mm (7.24 `d7 4.02 `d7 6.61 inch)
• Packaging Dimensions 205 `d7 145 `d7 194 mm (8.07 `d7 5.70 `d7 7.64 inch)
• Performance Parameter
• Max. Power 8W `b1 5%
• Operation Temperature
• Solar Cell Type Monocrystalline solar cells
• Product Dimensions 267.3 `d7 186.5 `d7 17.5 mm (10.51 `d7 5.83 `d7 0.69 inch)
• Packaging Dimensions 282 `d7 194 `d7 70 mm (11.10 `d7 7.64 `d7 2.76 inch)
• In the box - EB8 Pro 4G Camera
• Drilling Template
• Adjustable Mounting Bracket
• Certifications CE / REACH / WEEE / RoHS

Specifications

• Camera with solar panel KIT r200-1m8w4ga
• Model
• Cs-eb8-r200-1m8w4ga, cs-eb8/sp (4k,w4ga)
• Lens
• 4mm@ F1.2 Diagonal angle: 104`b0
• Horizontal angle: 83`b0 Vertical angle:44`b0
• PT Angle Pan: 340`b0, Tilt: 75`b0
• DNR 3D DNR
• Night Vision 15 m
• Max Resolution 4K (3840 `d7 2160)
• Video Compression H.265 / H.264
• Wi-Fi Standard IEEE802.11b, 802.11g, 802.11n, 802.11ax
• Frequency Range 2.4 GHz~2.4835 GHz
• Channel Bandwidth Supports 20 MHz
• Security 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK
• Protocol EZVIZ Cloud Proprietary Protocol
• Interface Protocol EZVIZ Cloud Proprietary Protocol
• Minimum Network Requirement 8 Mbps
• 4G LTE Frequency Bands
• LTE FDD: b1/b3/b5/b7/b8/b20/b28, LTE TDD: B38/B40/B41
• LA'a3°
• LTE TDD: b1/b2/b3/b4/b5/b7/b8/b12/b17/b28/b66
• LTE TDD: B38/B40
• Humidity 95% or less (non-condensing)
• IP Grade IP65
• DC 5V/2A
• Battery Capacity 10,400 mAh
• Power Consumption Max.10 W
• Product Weight 810 g (28.57 oz)
• Weight with Package 1332 g (46.99 oz)
• Model CS-PSP8-R100-3M
• Power Voltage 5.4V `b1 5%
• Power Current 1.48A `b1 5%
• Open Circuit Voltage 6.8V `b1 5%
• Short Circuit Current 1.64A `b1 5%
• Solar Cell Efficiency ≥ 22%
• 20`b0C ~ 60`b0C (-4`b0F ~ 140`b0F)
• Humidity 90% or less (non-condensing)
• Power Cable Length 3 meters
• Weight 907 g (32 oz)
• Solar Panel 8W
• Screw Kit x 2
• Regulatory Information x 3
• Quick Start Guide `d7 2
