Fiber Optic Cleaning Cassette Fibre

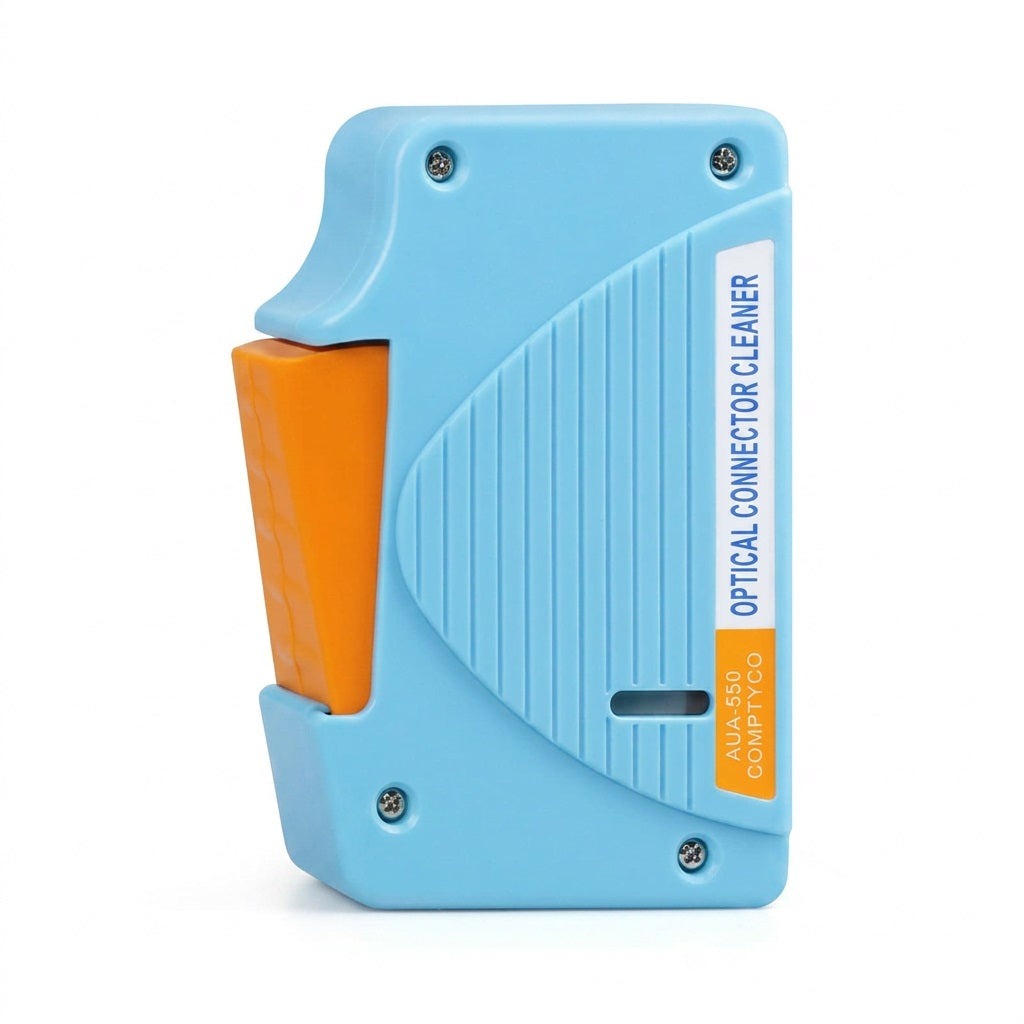

Comptyco AUA-550 Fiber Optic Cleaning Cassette – Fibre Connector Cleaner for FTTH & Network Maintenance

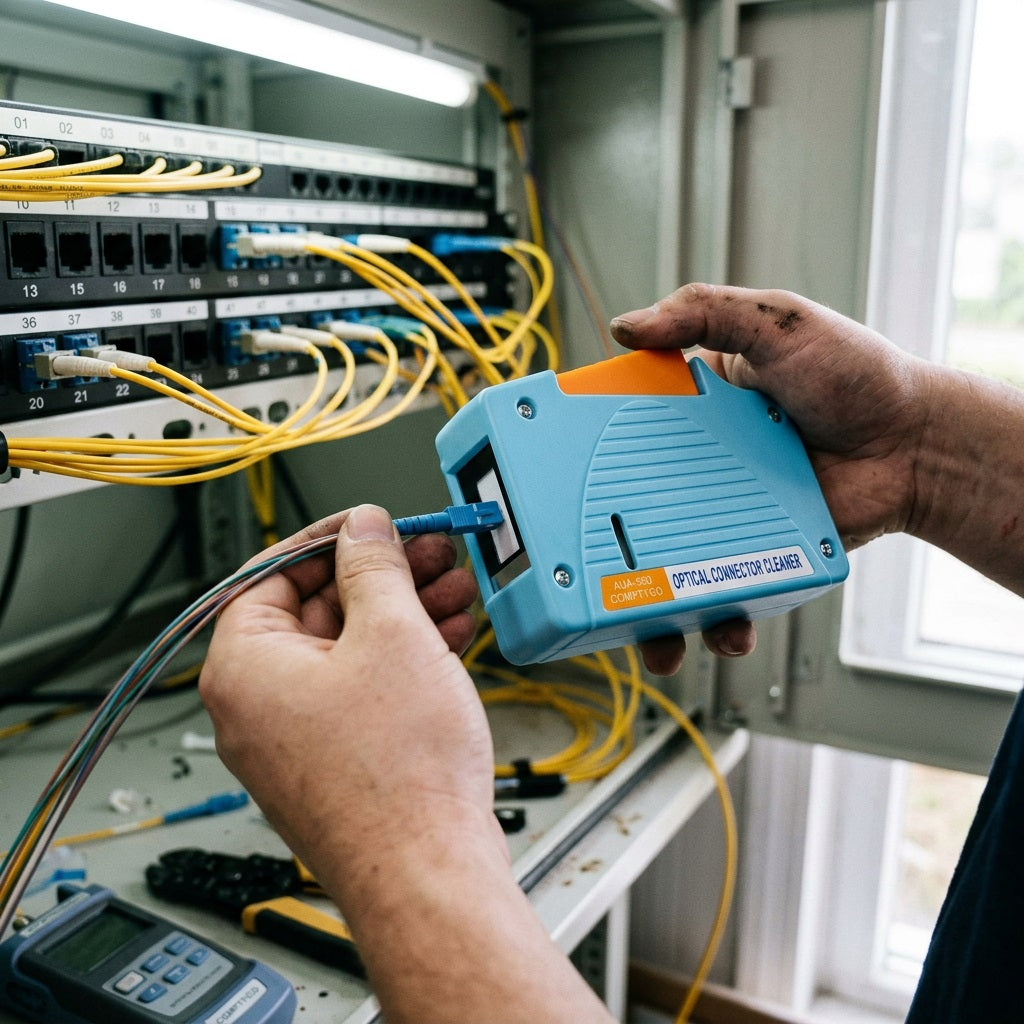

Maintain clean fiber optic connector end faces and help ensure reliable optical performance with the Comptyco AUA-550 Fiber Optic Cleaning Cassette. Designed for FTTH installations, telecommunications, data centers, fiber splicing, and network maintenance, this compact cassette provides fast and convenient dry cleaning without requiring alcohol or other liquid cleaning agents.

The AUA-550 uses a high-density textile cleaning ribbon to remove dust, oil, fingerprints, and microscopic contaminants from fiber connector end faces. Its manual lever mechanism advances a fresh section of cleaning tape while opening the protective shutter, making it quick and easy to use in both workshop and field environments.

Key Features & Benefits
Dry Fiber Connector Cleaning – Cleans optical connector end faces without alcohol or liquid cleaning solutions.
High-Density Cleaning Ribbon – Uses a specialized textile fiber cleaning tape to effectively remove dust, oil, and micro-particles.
Up to 550+ Cleaning Cycles – The pre-installed 10.5m cleaning ribbon provides more than 550 cleaning operations.
Wide Connector Compatibility – Suitable for SC, FC, ST, and LC fiber optic connectors.
PC & APC Compatible – Designed to support standard PC and APC connector configurations.
Manual Lever Operation – Convenient spring-loaded orange lever advances fresh cleaning ribbon with each operation.
Protective Shutter – Helps keep the cleaning surface protected from dust and contamination when not in use.
Replaceable Cleaning Ribbon – Cassette design allows the cleaning tape core to be replaced when depleted.
Compact & Lightweight – Easy to carry and operate during FTTH installations and fiber maintenance work.
Field-Ready Construction – Durable housing provides convenient handheld operation for technicians and installers.
Technical Specifications
Parameter Specification
Model Comptyco AUA-550
Product Type Fiber Optic Connector Cleaning Cassette
Cleaner Type Manual Cassette Reel Tape Cleaner
Cleaning Method Dry Cleaning
Cleaning Media High-Density Textile Fiber Cleaning Tape
Cleaning Ribbon Length 10.5m
Cleaning Capacity 550+ Cleaning Cycles
Connector Compatibility SC, FC, ST, LC
Connector Types PC / APC
Dimensions 125 × 80 × 35mm
Operating Temperature -10°C to +50°C
Storage Temperature -30°C to +70°C
Package Dimensions Approx. 12.8 × 8.4 × 3.6cm
Package Weight Approx. 150g
Colour Light Blue
Easy Dry Cleaning

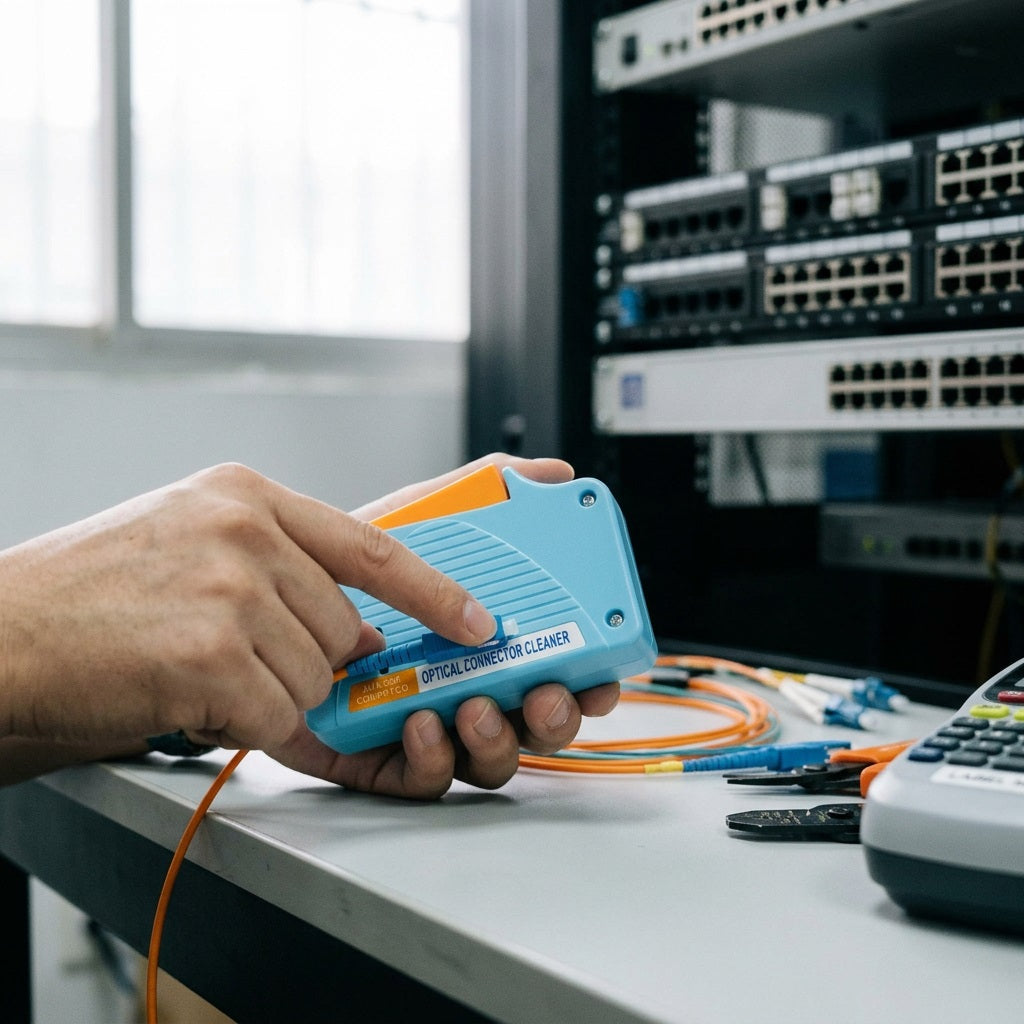

The AUA-550 provides a simple solution for cleaning fiber connector end faces before connection, testing, or splicing. Pressing the spring-loaded lever advances a clean section of the textile ribbon while the protective shutter opens, allowing the connector end face to be cleaned quickly and efficiently.

Because the cleaning process is dry, there is no need to carry or apply alcohol during routine connector maintenance.

Replaceable Cleaning Ribbon

Once the cleaning ribbon has been depleted, the cassette can be opened and the cleaning tape core replaced. This helps reduce ongoing operating costs and extends the useful life of the cleaning cassette.

Ideal Applications

The Comptyco AUA-550 Fiber Optic Cleaning Cassette is ideal for:

FTTH installation
Fiber optic connector cleaning
Fiber network maintenance
Data center installations
Telecommunications networks
Fusion splicing preparation
OTDR testing preparation
Fiber link troubleshooting
Fiber optic repair and servicing
Professional fiber technician toolkits
Package Includes
1 × Comptyco AUA-550 Optical Connector Cleaning Cassette – Light Blue
1 × Pre-Installed 10.5m Cleaning Ribbon Core
1 × Product Packaging Box
