HDMI Switch 5

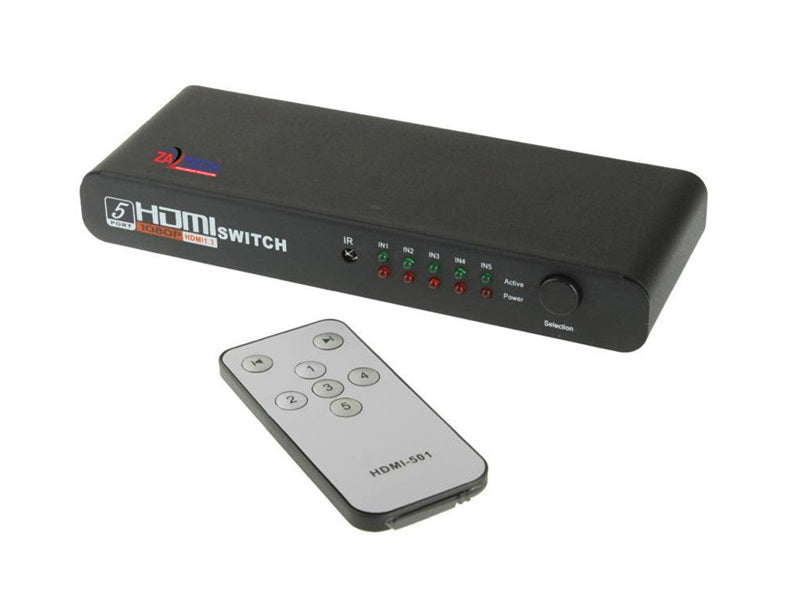

HDMI-501 5 port switch with IR remote showing input LED indicators

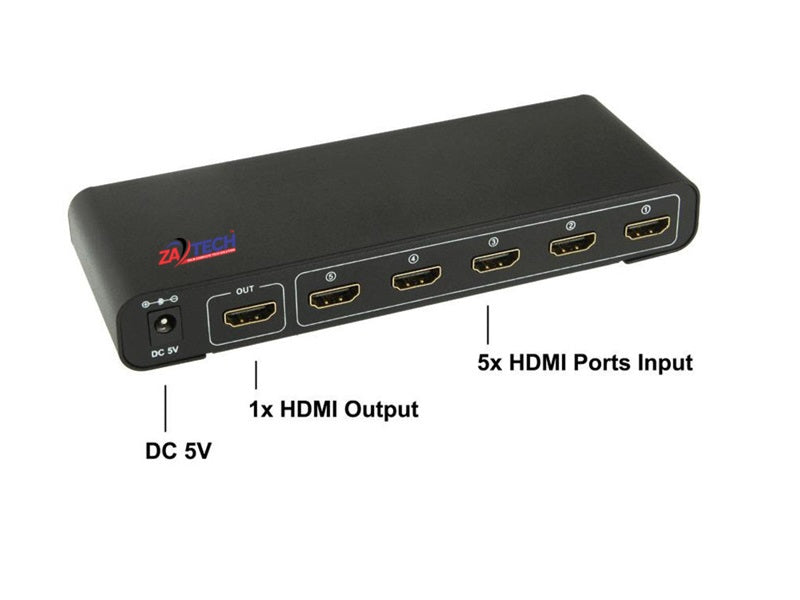

HDMI-501 switch rear panel labelled with 5x HDMI inputs and 1x output

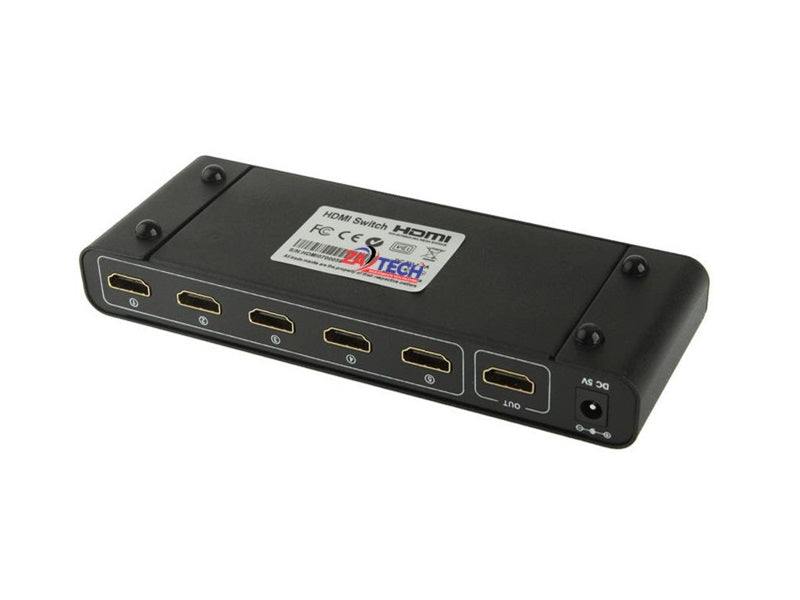

HDMI-501 switch three-quarter rear view showing five gold-plated HDMI ports

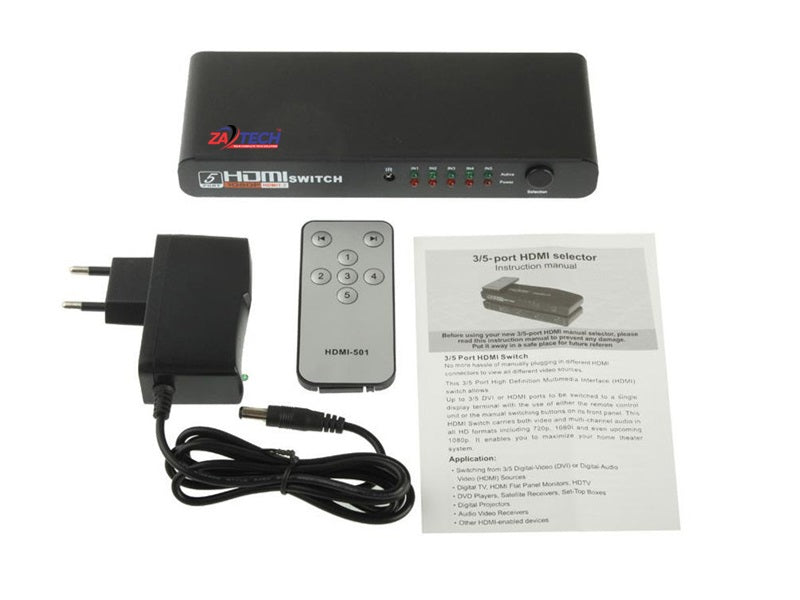

HDMI-501 switch box contents laid out with remote, power adapter and manual

HDMI Switch 5 Port 1080p 3D - HDMI 1.4, IR Remote, 7.1 Audio, HDCP (HDMI-501)

FY1408BM

Alcell
R 349
Estimated delivery 1–3 working days
In stock
FAST NATIONWIDE DELIVERY
Reliable delivery, every order
Quantity
In stock
  • Interest Free Payments available
  • Hassle Free Returns within 7 days
  • 12-month limited warranty
Flexible payments from only R 58.16 over 2–6 instalments
Price: R 349

Description

Display devices selection : Push button or IR Remote card. Rack mounting kit and wall mounting kit version.

Key features

  • Approved by HDMI attached lab
  • HDCP compliant
  • Support DTS , dobby , 7.1 channel audio
  • Gold plated connector
  • Cable fixing bolt for long cable
  • Plug and play
  • Amplifier and Equalizer function for extending the HDMI cable
  • Application ***
  • Switch from 5 Digital video (DVI) or digital - audio video (HDMI) sources
  • Digital TV , HDMI flat panel monitors , HDTV
  • DVD players , satellite receivers , set-top boxes
  • Digital projectors
  • Other HDMI - enabled devices.

Specifications

  • Fy1408bm
  • Product : 5 port HDMI Switch
  • HDMI source input port : 5
  • Display device output port : 1
  • Source port Conncetor : 19 pin HDMI
  • Display device port connector : 19 pin HDMI
  • HDCP compliant : Yes
  • Device port LED : 5
  • Single link range : 1920x1200
  • Video bandwidth : up to 4.95 Ghz
  • Vertical frequency range : 60/85 Hz
  • Power consumtion (max) : 5Watts
  • Operation Temperature : 0 C to 70 C
  • HDMI Version : 1.4
  • Dimension : 2225 x 175 x 50mm
  • 5 input 1 output
  • Fully support 1080P HDTV

Frequently Bought Together Frequently bought

Product Information

Warranty 12-month limited warranty
Categories Networking / New Arrivals / Specials
Model FY1408BM / HDMI-501
Input Ports 5 x HDMI (19-pin)
Output Ports 1 x HDMI (19-pin)
HDMI Version 1.4
Resolution 1920 x 1200 (1080p)
Video Bandwidth Up to 4.95 GHz
Vertical Frequency 60/85 Hz
Power Consumption 5W max
Operating Temperature 0 to 70 C
Dimensions 225 x 175 x 50 mm
HDCP Compliant
Audio Support DTS, Dolby, 7.1 channel
SKU FY1408BM
