HD-AE1 4K HDMI Audio Extractor - HDMI to HDMI + SPDIF & 3.5mm Audio

HD-AE1 4K HDTV Audio Extractor – HDMI to HDMI + SPDIF & 3.5mm Audio Converter
Full Product Description

The HD-AE1 HDTV Audio Extractor is a multifunctional digital audio converter designed to extract audio from an HDMI signal while simultaneously passing the HDMI video signal through to a compatible television, monitor or projector.

It is particularly useful when an HDMI source needs to send video to a display while the audio is routed separately to an amplifier, sound system, speakers or other compatible audio equipment.

The HD-AE1 features an HDMI input and HDMI output, allowing the original video signal to continue to the display. Separate SPDIF optical and 3.5mm analogue audio outputs provide flexible options for connecting external audio equipment.

According to the supplied packaging, the extractor supports 4K Ultra HD video passthrough as well as 3D video, making it suitable for compatible high-resolution entertainment equipment.

A selectable 3.5CH / 2CH / PASS audio mode switch provides additional flexibility for different audio configurations and connected equipment.

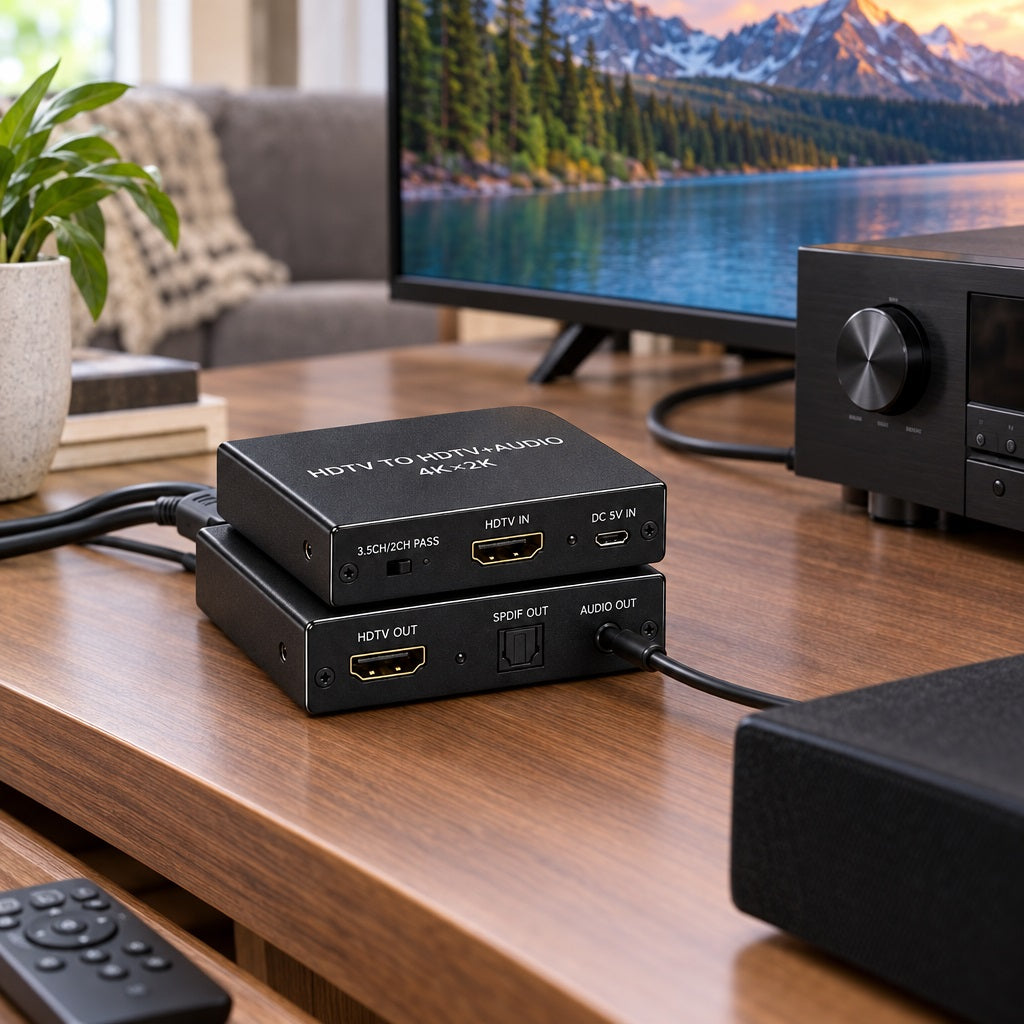

The unit is powered through a DC 5V input and features a compact desktop design that can be installed discreetly alongside a TV, media player, game console or home entertainment system.

The HD-AE1 is a practical solution when a television or display has limited audio outputs or when users want to route HDMI audio directly to dedicated external speakers or an amplifier.

Key Features
Model: HD-AE1
HDTV / HDMI Audio Extractor
HDMI to HDMI + Audio
4K Ultra HD Support
3D Video Support
HDMI Video Passthrough
HDMI Input
HDMI Output
SPDIF Optical Audio Output
3.5mm Analogue Audio Output
3.5CH / 2CH / PASS Audio Selection
Digital Audio Extraction
External Audio System Support
DC 5V Power Input
Plug & Play Design
Compact Desktop Housing
Wide Compatibility
Suitable for TVs & Monitors
Suitable for Projectors
Suitable for Media Players
Suitable for Compatible Game Consoles
Ideal for Home Entertainment Systems
Full Specifications
Specification Details
Model HD-AE1
Product Type HDMI / HDTV Audio Extractor
Video Input HDMI
Video Output HDMI
Maximum Video Support 4K Ultra HD
3D Support Yes
Optical Audio Output SPDIF
Analogue Audio Output 3.5mm
Audio Mode Selector 3.5CH / 2CH / PASS
HDMI Passthrough Yes
Audio Extraction Yes
Power Input DC 5V
Plug & Play Yes
Colour Black
Application HDMI Video Passthrough & Audio Extraction
HDMI Video + Separate Audio

The HD-AE1 allows one HDMI source to provide video to a display while extracting the audio separately.

Typical setup:

HDMI Source → HD-AE1 → HDMI TV / Monitor

At the same time:

HD-AE1 → SPDIF or 3.5mm → Amplifier / Speakers / Audio System

This is useful when the display itself does not provide the required audio connection.

4K Ultra HD & 3D Support

The supplied packaging specifies support for:

4K Ultra HD
3D Video

The device itself is marked 4K × 2K.

Actual supported resolution and refresh rate depend on the HDMI source, cables, display and connected equipment.

SPDIF Optical Audio Output

The integrated SPDIF optical output allows compatible digital audio equipment to receive the extracted HDMI audio signal.

Suitable for compatible:

AV receivers
Amplifiers
Sound systems
Soundbars
Digital audio equipment
3.5mm Analogue Audio Output

A standard 3.5mm audio output provides an additional option for connecting compatible analogue audio equipment such as:

Powered speakers
Amplifiers
Audio systems
Headphones or other supported equipment
Audio Mode Selection

The front panel includes a selectable audio mode switch marked:

3.5CH / 2CH / PASS

This allows the extractor to be configured according to the supported audio setup and connected equipment.

DC 5V Powered

The HD-AE1 features a dedicated DC 5V input for stable power during operation.

Ideal For

Smart TVs • Monitors • Projectors • Media Players • Game Consoles • Set-Top Boxes • Home Theatre Systems • Amplifiers • Soundbars • External Speakers

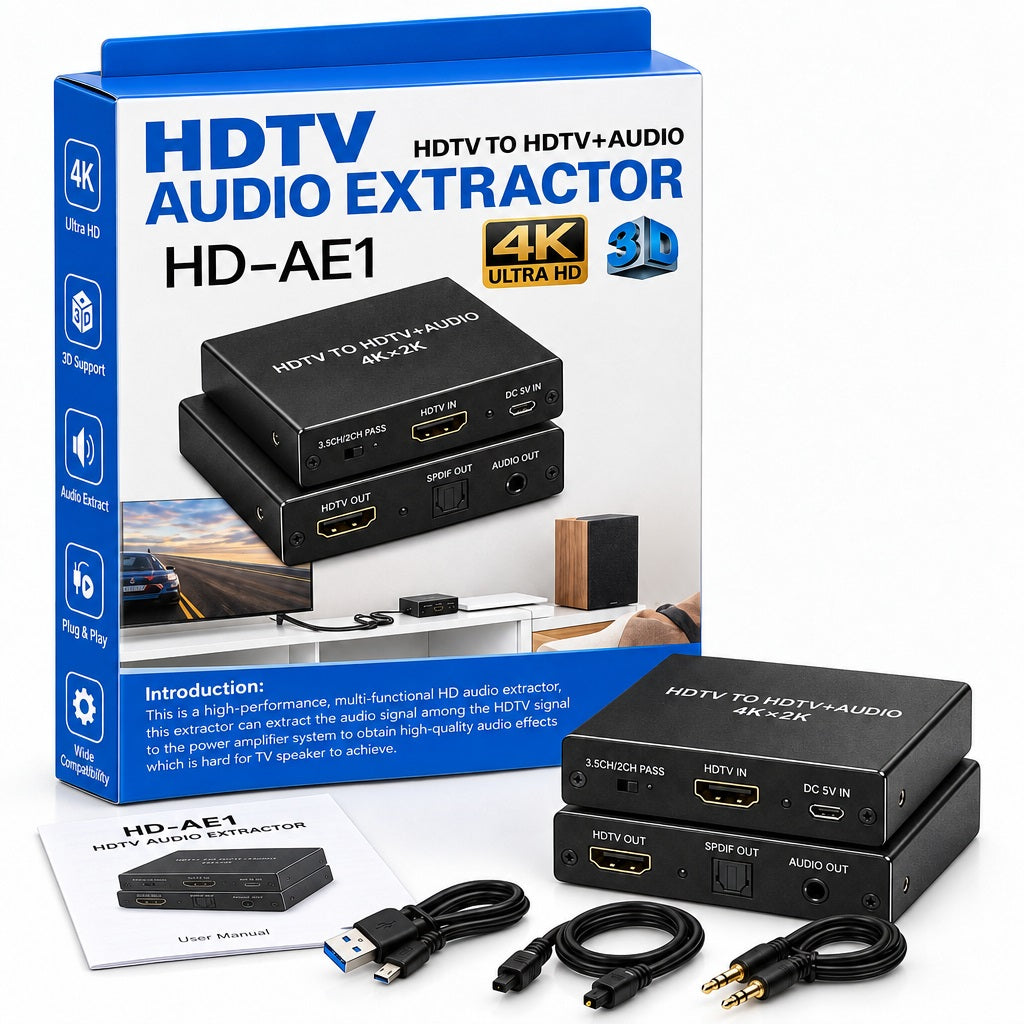

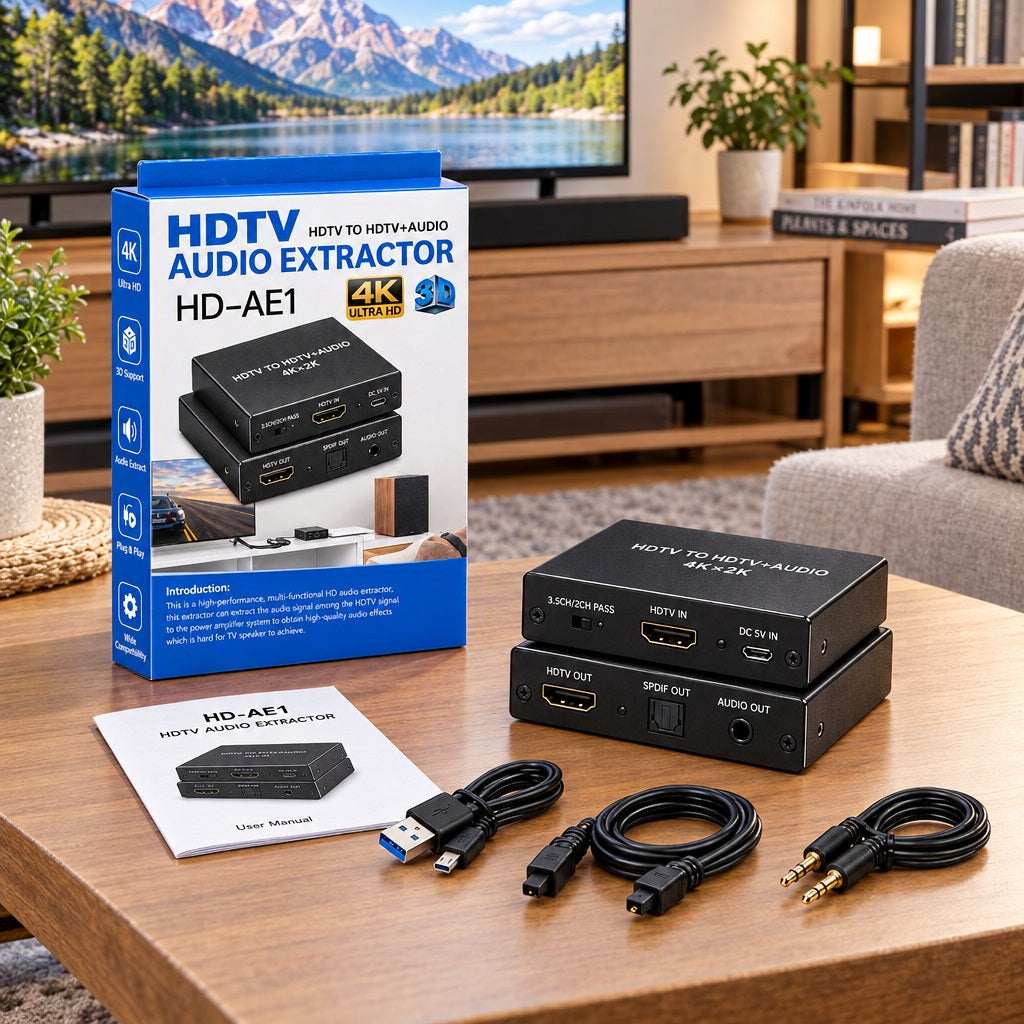

What`s in the Box

Based on your supplied product image:

1 × HD-AE1 HDTV / HDMI Audio Extractor
1 × USB Power Cable
1 × Optical Audio Cable
1 × 3.5mm Audio Cable
1 × User Manual
