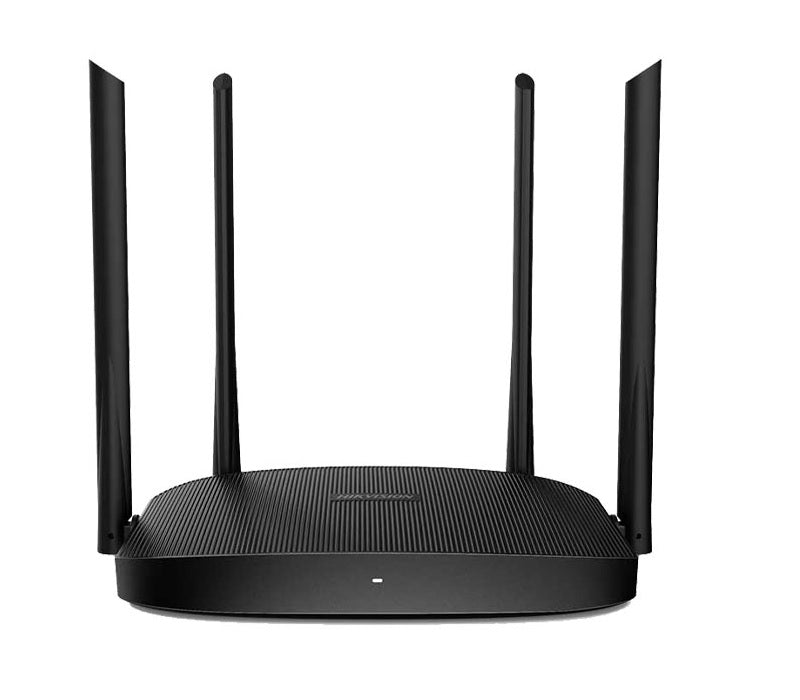

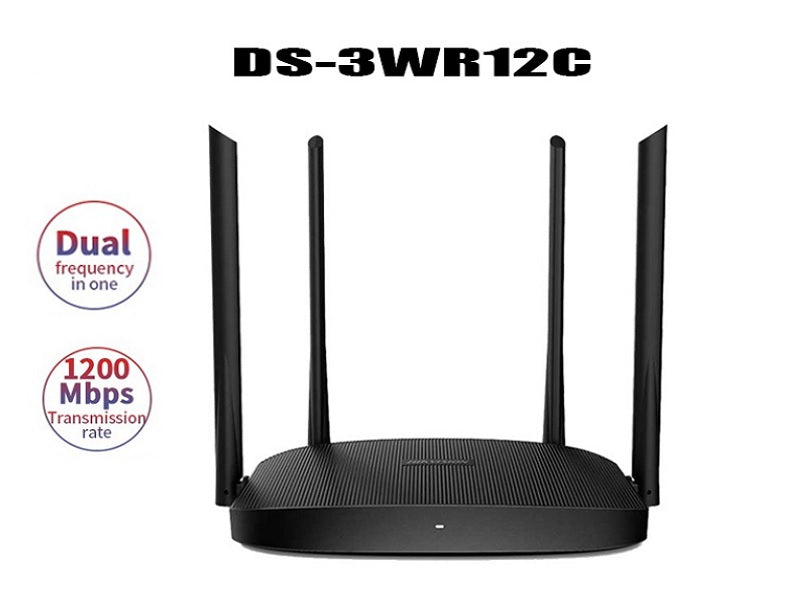

Hikvision 1200 Mbps Dual Band Wireless

Wireless Router Mode, Wireless Repeater Mode, Client + AP, WISP, and AP Mode supported. 248.40 mm `d7 154.80 mm `d7 213.34 mm (9.78"`d7 6.09"`d7 8.40").

Key features

• Beamforming optimizes signal
• Dual band – Smart signal switching
• Broadband account synchronization
• Wireless Parameter
• Data Rate
• Wireless Standard
• IEEE 802.11/a/n/ac wave 2 @5GHz, IEEE 802.11b/g/n @2.4GHz
• Wireless Performance
• Beamforming supported
• Receiving Sensitivity
• Antenna
• Hardware Parameter
• LED Indicator
• Reset
• Reset button
• 9 VDC, 1 A power adapter power supply
• Software Function
• Application Function
• DHCP Server supported
• Guest Network Configuration supported
• Signal Adjustment supported
• Security Mode
• Security Mechanism
• Hide SSID
• Management Method
• Web, APP
• Upgrade
• Web, App Update and Upgrade
• 306 mm `d7 290 mm `d7 59 mm (12.05"`d7 11.42"`d7 2.32")
• Packing List
• Wireless Router x 1, Ethernet cable `d7 1, Quick installation guide `d7 1
• Packing Method
• Single pack
• Working Temperature
• 0 ℃ to 40 ℃ (32 ℉ to 104 ℉)
• Working Humidity
• 40 ℃ to 70 ℃ (-40 ℉ to 158 ℉)
• Installation Mode
• Desktop installation
• Max. Power Consumption

Specifications

• Router ds-3wr12c
• AC1200 Wireless Router
• Four 5-dBi amplified antennas
• ≤ 1167 Mbps
• 2.4 GHz: 300 Mbps
• 5 GHz: 867 Mbps
• 18 dBm
• 4 `d7 4 MU-MIMO supported
• 58 `b1 2 dB@AC80 -MCS9
• 84 `b1 2 dB@AC80 -MCS0
• 4 high gain antennas
• 4 `d7 RJ45, 10/100 Mbps auto-negotiation
• 9 VDC, 1 A
• WPA-PSK, WPA2-PSK, WPA and WPA2 supported
• Product Dimension (W `d7 H `d7 D)
• Package Dimension (W `d7 H `d7 D)
• 0.222 kg (0.489 lb)
• 10% to 90% RH non-condensing
• 5% to 90% RH non-condensing
• ≤ 9 W
• 0.722 kg (1.592 lb)
