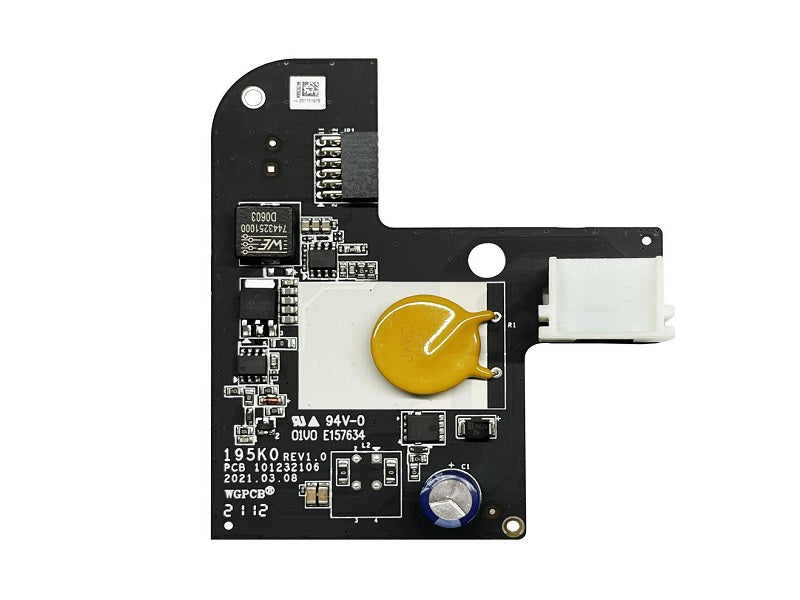

Hikvision DS-PM1-D AX PRO 12V Power Supply Unit Module - 8-24V DC, 2A

A wide-range power module for AX PRO security panels. The Hikvision DS-PM1-D is a 12V power supply unit module designed to work with compatible AX PRO control panels, providing the power backbone that keeps connected security devices running reliably. Its wide input range of 8 to 24V DC gives installers flexibility when integrating it into varied power setups.

Rated for up to 2A, the module is built to handle the electrical demands of an AX PRO-based security installation without becoming a bottleneck. Compact dimensions of approximately 80 x 90 x 15mm and a light weight of around 35g mean it can be fitted into control panel enclosures without taking up excessive space.

Key features

• 12V power supply module for AX PRO panels
• Wide input range of 8-24V DC
• Rated for up to 2A
• Compact dimensions of approximately 80 x 90 x 15mm
• Lightweight at approximately 35g
• Convenient installation alongside AX PRO control panels

Ideal for

• AX PRO-based security system installations
• Installers needing a compact, wide-range power module
• Expanding power capacity within an existing panel enclosure

Good to know

Rated operating conditions extend down to -10°C and up to 55°C with 10% to 90% non-condensing humidity, making this module suitable for a range of typical indoor installation environments.
