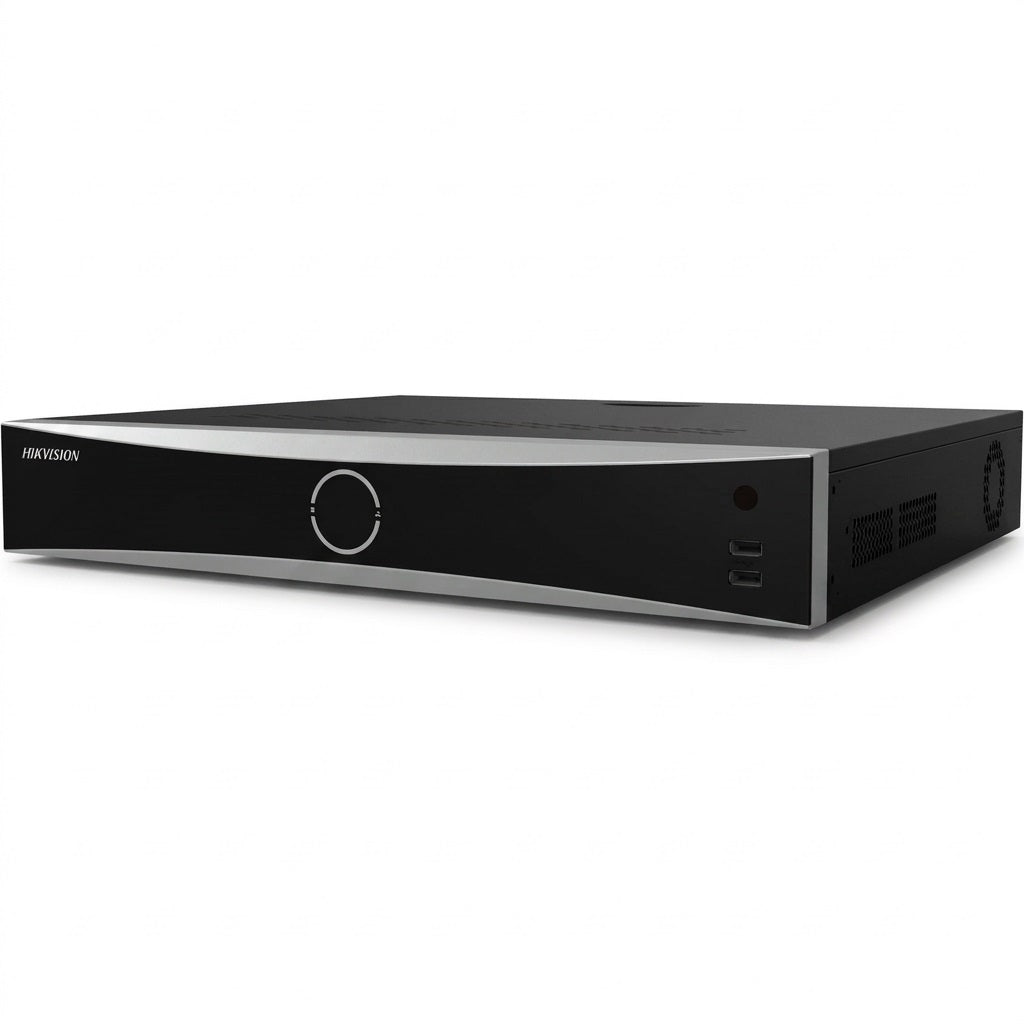

Hikvision 16-ch 1.5U 8K DeepinMind NVR

The Hikvision 16-Channel 1.5U 8K DeepinMind NVR is an advanced AI-powered network video recorder designed for professional CCTV surveillance systems that require high-resolution recording, intelligent analytics and efficient video investigation.

Supporting up to 16 IP cameras and video input resolutions of up to 32 MP, this NVR delivers powerful decoding performance and supports H.265+, H.265, H.264+ and H.264 video compression formats. Its HDMI 1 output supports resolutions up to 8K, providing exceptional display clarity for compatible monitors.

Powered by deep learning algorithms, the DeepinMind NVR supports intelligent features including facial recognition, perimeter protection, video structuralization, AcuSearch, and advanced target identification. It can perform analytics directly through the NVR or utilise supported AI functions from compatible cameras.

With four SATA hard drive interfaces, dual Gigabit network ports, multiple display outputs and extensive alarm connectivity, this recorder is suitable for demanding commercial, industrial and enterprise surveillance installations.

Key Features

16-Channel IP Camera Support: Connect and manage up to 16 IP cameras.

Ultra-High-Resolution Recording: Supports recording resolutions up to 32 MP.

8K HDMI Output: HDMI 1 supports up to 7680 × 4320 at 30Hz.

Advanced AI Analytics: Deep learning-based facial recognition, perimeter protection, video structuralization and AcuSearch.

Facial Recognition: Supports up to 16-channel facial recognition for video streams or face pictures, subject to operating mode and configuration.

Perimeter Protection: Intelligent detection and analysis designed to help identify security events and reduce unnecessary alerts.

AcuSearch: Enables efficient target searching across recorded footage using supported camera or NVR analytics.

ANPR Support: Compatible camera-based recognition can identify number plates and vehicle attributes.

High Decoding Performance: Supports decoding up to 2-channel 32 MP, 8-channel 8 MP or 16-channel 4 MP video at 30 fps, depending on the selected configuration.

H.265+ Compression: Helps reduce storage and bandwidth requirements.

Four SATA Interfaces: Supports up to four 3.5-inch hard drives, with a maximum capacity of 20TB per drive.

Dual Gigabit Network Ports: Two 10/100/1000 Mbps Ethernet interfaces.

Extensive Alarm Connectivity: 16 alarm inputs and 4 alarm outputs.

Multiple Display Outputs: HDMI 1, HDMI 2, VGA and CVBS.

Flexible Integration: Supports ONVIF, RTSP, SDK and ISAPI for compatible devices and systems.

1.5U Rack-Mount Design: Suitable for professional surveillance equipment racks.

Technical Specifications
General Information

Specification

Details

Brand

Hikvision

Product Type

DeepinMind AI Network Video Recorder

Channels

16 IP channels

Form Factor

1.5U

Maximum IP Camera Input Resolution

Up to 32 MP

Incoming Bandwidth

256 Mbps

Outgoing Bandwidth

256 Mbps

Remote Connections

Up to 128

Video Compression

H.265+, H.265, H.264+, H.264

Power Supply

100–240V AC, 50–60Hz

Power Consumption

≤ 50W, without HDD

Operating Temperature

-10°C to 55°C

Operating Humidity

10%–90%

Dimensions (W × D × H)

445 × 400 × 71mm

Weight

≤ 5kg, without HDD

AI and Intelligent Analytics

Feature

Specifications

AI by NVR

Facial recognition, perimeter protection, video structuralization, AcuSearch

AI by Camera

Facial recognition, perimeter protection, video structuralization, AcuSearch, Motion Detection 2.0, ANPR, people counting, VCA

AI Engines

2; each engine can run one intelligent algorithm

AcuSearch by Camera

All channels, up to 691,200 targets/day

AcuSearch by NVR

Up to 8 channels, up to 691,200 targets/day

Perimeter Protection by NVR

Up to 16-channel 4 MP or 8-channel 8 MP without Large Model

Video Structuralization

Up to 12-channel 2 MP, 8-channel 4 MP or 4-channel 8 MP

Face Picture Libraries

Up to 16 libraries

Face Pictures in List Library

Up to 100,000

Stranger Library

Up to 10,000 face pictures

Face Capture Storage

Up to 5,000,000 face pictures, subject to capacity limits

Face Picture Comparison

Up to 16 channels

ANPR Attributes

Plate number, plate colour and plate type

Vehicle Attributes

Vehicle brand, colour and type

AI channel capacity and available functions depend on the selected algorithm, engine allocation, camera capabilities and configuration.

Video and Audio

Specification

Details

IP Video Input

16 channels

Maximum Input Resolution

32 MP

HDMI 1 Output

Up to 8K (7680 × 4320) at 30Hz

HDMI 2 Output

Up to 4K (3840 × 2160) at 60Hz

VGA Output

Up to 1920 × 1080 at 60Hz

CVBS Output

1 channel, BNC

Audio Output

1 channel, RCA

Two-Way Audio

1 channel, RCA

Synchronous Playback

16 channels

Recording Resolutions

Up to 32 MP, plus 24 MP, 12 MP, 8 MP, 6 MP, 5 MP, 4 MP, 3 MP, 1080p and lower resolutions

When HDMI 1 is configured for 8K output, HDMI 2 is limited to a maximum resolution of 1080p.

Decoding Capability

Resolution

Maximum Channels at 30 fps

32 MP

2

24 MP

2

16 MP

4

8 MP

8

4 MP

16

Network and Connectivity

Specification

Details

Network Interfaces

2 × RJ-45 Gigabit Ethernet

Network Speed

10/100/1000 Mbps

Network Protocols

TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP, HTTP, HTTPS and more

Camera Access

ONVIF, RTSP

API Support

ONVIF Profile S/G, SDK, ISAPI

Serial Interfaces

1 × RS-232, 1 × RS-485 full-duplex

USB Ports

Front: 2 × USB 2.0; Rear: 1 × USB 3.0

Alarm Inputs

16

Alarm Outputs

4

Storage

Specification

Details

SATA Interfaces

4

Supported HDD Size

3.5-inch

Maximum Capacity per HDD

20TB

Maximum Theoretical Raw Capacity

80TB with 4 × 20TB HDDs

eSATA

1 interface

Hard drives are not included unless explicitly stated in the product package. Actual usable storage depends on drive configuration and system settings.

Ideal Applications

Large-scale IP CCTV surveillance systems

Commercial buildings and office complexes

Warehouses and industrial facilities

Retail and shopping environments

Sites requiring AI-powered facial recognition

Perimeter security and vehicle number plate recognition

Security control rooms requiring high-resolution video monitoring

What`s in the Box?

1 × Hikvision 16-Channel 8K DeepinMind NVR

Power cable and accessories, subject to the supplied package contents
