HIKVISION 16Ch 4K Nvr 16Ch Poe 160Mbps

Up to 16-ch IP camera inputs, plug & play with 16 Power-over-Ethernet (PoE) interfaces. Up to 2-ch@12 MP or 3-ch@8 MP or 6-ch@4 MP or 12-ch@1080p decoding capacity.

Key features

• 16-ch PoE 1U K Series AcuSense 4K NVR
• Adopt Hikvision Acusense technology to minimize manual effort and security costs
• Smart Function
• l 2-ch video analysis for human and vehicle recognition to reduce false alarm
• l 1-ch facial recognition for video stream, or 4-ch facial recognition for face picture
• l Smart search for the selected area in the video, and smart playback to improve the playback efficiency
• Professional and Reliability
• l H.265+ compression effectively reduces the storage space by up to 75%
• l Adopt stream over TLS encryption technology which provides more secure stream transmission service
• l Provide independent HDMI and VGA outputs
• l HDMI video output at up to 4K resolution
• l Up to 2 SATA interfaces for HDD connection (up to 10 TB capacity per HDD)
• l Hik-Connect for easy network management
• Intelligent Analytics
• AI by Device Facial recognition, perimeter protection, motion detection 2.0
• Facial recognition, perimeter protection, throwing objects from building, motion
• Facial Recognition
• Facial Detection and Analytics Face picture comparison, human face capture, face picture search
• Face Picture Library
• Up to 16 face picture libraries, with up to 20,000 face pictures in total (each picture ≤ 4
• Facial Detection and Analytics
• Performance
• By Device
• All channels, 4 MP (when enhanced SVC mode is enabled, up to 8 MP) video analysis for
• human and vehicle recognition to reduce false alarm
• By Camera All channels
• Perimeter Protection
• 2-ch, 4 MP (HD network camera, H.264/H.265) video analysis for human and vehicle
• recognition to reduce false alarm
• 1-ch, 4K (3840 `d7 2160)/30 Hz, 2K (2560 `d7 1440)/60 Hz, 1920 `d7 1080/60 Hz, 1600 `d7
• 1200/60 Hz, 1280 `d7 1024/60 Hz, 1280 `d7 720/60 Hz, 1024 `d7 768/60 Hz
• VGA Output 1-ch, 1920 `d7 1080/60 Hz, 1280 `d7 1024/60 Hz, 1280 `d7 720/60 Hz
• Video Output Mode HDMI/VGA independent output
• CVBS Output N/A
• Audio Output 1-ch, RCA (2.0 Vp-p, 1 K'd9, using the audio input)
• Decoding
• Recording Resolution 12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
• Decoding Capability
• AI on: 1-ch@12 MP (30 fps)/2-ch@8 MP (30 fps)/4-ch@4 MP (30 fps)/8-ch@1080p (30
• fps)
• AI off: 2-ch@12 MP (30 fps)/3-ch@8 MP (30 fps)/6-ch@4 MP (30 fps)/12-ch@1080p (30
• Stream Type Video, Video & Audio
• API ONVIF (profile S/G); SDK; ISAPI
• Compatible Browser IE11, Chrome V57, Firefox V52, Safari V12, Edge V89, or above version
• Tcp/ip, dhcp, ipv4, ipv6, DNS, ddns, NTP, rtsp, sadp, smtp, snmp, NFS, iscsi, isup,
• Upnp™, http, https
• Network Interface 1 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
• PoE
• USB Interface Front panel: 1 `d7 USB 2.0; Rear panel: 1 `d7 USB 2.0
• GUI Language
• English, Russian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French,
• Polish, Dutch, Portuguese, Spanish, Romanian, Turkish, Japanese, Danish, Swedish
• Language, Norwegian, Finnish, Korean, Traditional Chinese, Thai, Estonian, Vietnamese,
• Croatian, Slovenian, Serbian, Latvian, Lithuanian, Uzbek, Kazakh, Arabic, Ukrainian,
• Kyrgyz , Brazilian Portuguese, Indonesian
• Power Supply 100 to 240 VAC, 50 to 60 Hz
• Consumption ≤ 15 W (without HDD and PoE off)
• Working Temperature -10 `b0C to 55 `b0C (14 `b0F to 131 `b0F)

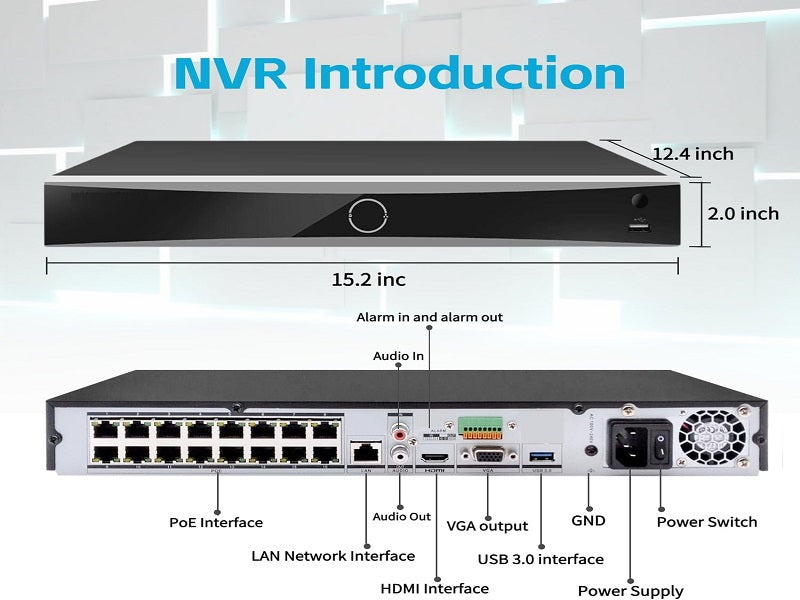

• Dimension (W `d7 D `d7 H) 385 mm `d7 315 mm `d7 52 mm (15.2"`d7 12.4" `d7 2.0")

Specifications

• 2 HDD CAN take 2 MP ds-7616nxi-k2/16p
• H.265+/H.265/H.264+/H.264 video formats
• Up to 160 Mbps incoming bandwidth
• l All channels support Motion Detection 2.0
• l 16-ch synchronous playback
• l 16 independent PoE network interfaces
• l 1 self-adaptive 10/100/1000 Mbps Ethernet interface
• detection2.0, ANPR, VCA
• MB, total capacity ≤ 1 GB)
• 1-ch, 8 MP
• Face Picture Comparison 4-ch
• Motion Detection 2.0
• IP Video Input 16-ch
• Incoming Bandwidth 160 Mbps
• Outgoing Bandwidth 160 Mbps
• Two-Way Audio 1-ch, RCA (Linear, 1 K'd9)
• Decoding Format H.265/H.265+/H.264+/H.264
• Synchronous playback 16-ch
• Audio Compression G.711ulaw/G.711alaw/G.722/G.726/AAC
• Remote Connection 128
• Interface 16, RJ-45 10/100 Mbps self-adaptive Ethernet interface
• Power ≤ 200 W
• Standard IEEE 802.3af/at
• SATA 2 SATA interfaces
• Capacity Up to 10 TB capacity for each HDD
• Alarm In/Out 4/1
• Working Humidity 10% to 90%
• Weight ≤ 3 kg (without HDD, 6.6 lb.)
• FCC Part 15 Subpart B, ANSI C63.4-2014
