Hikvision 16CH ColorVu CCTV Kit with Zatech Junction Boxes & Cable Rolls

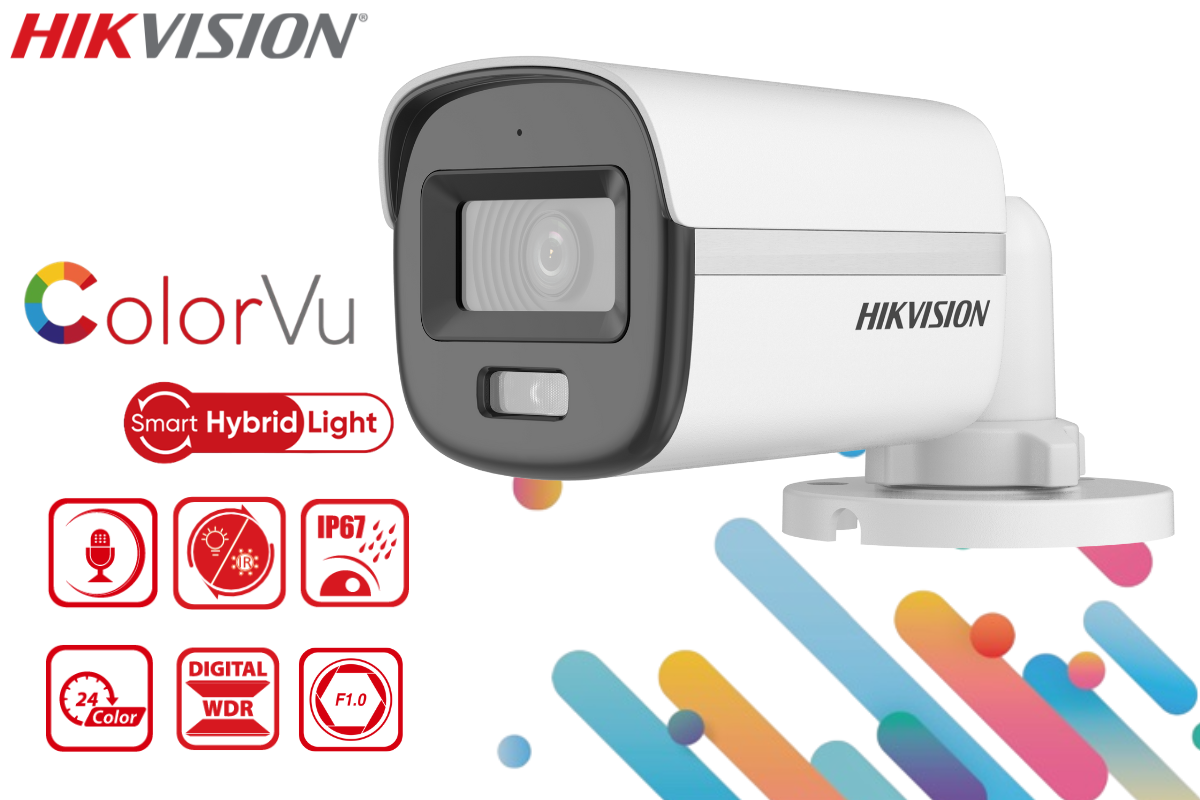

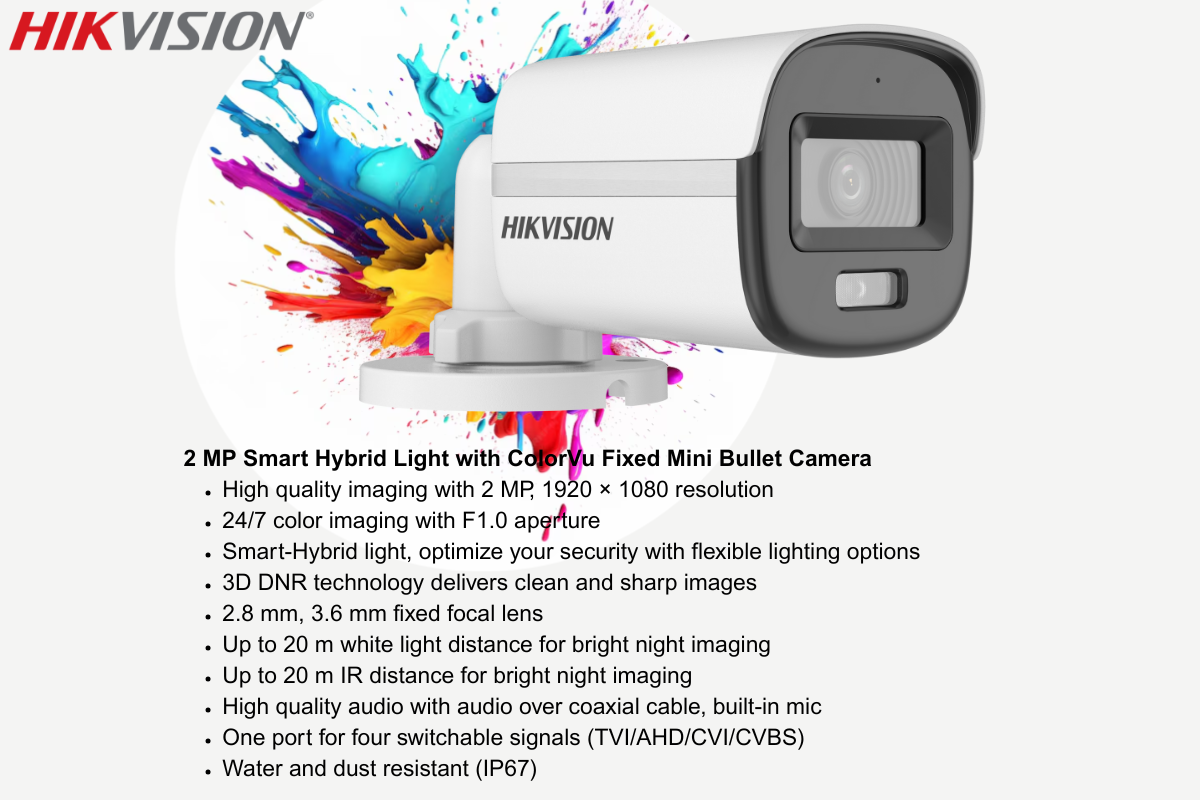

Hikvision 16-Channel ColorVu CCTV Kit is a complete, professional-grade security solution for homes, offices, or large properties. This all-in-one package includes 16 x 2MP Smart Hybrid ColorVu cameras providing crisp 1080p full-color video day and night with an F1.0 super aperture and Smart Hybrid Light technology for flexible white light and IR night vision up to 20 meters. Cameras feature built-in audio via coaxial cable, 3D DNR for sharp, noise-free images, 2.8mm or 3.6mm lenses, and a weatherproof IP67 design.

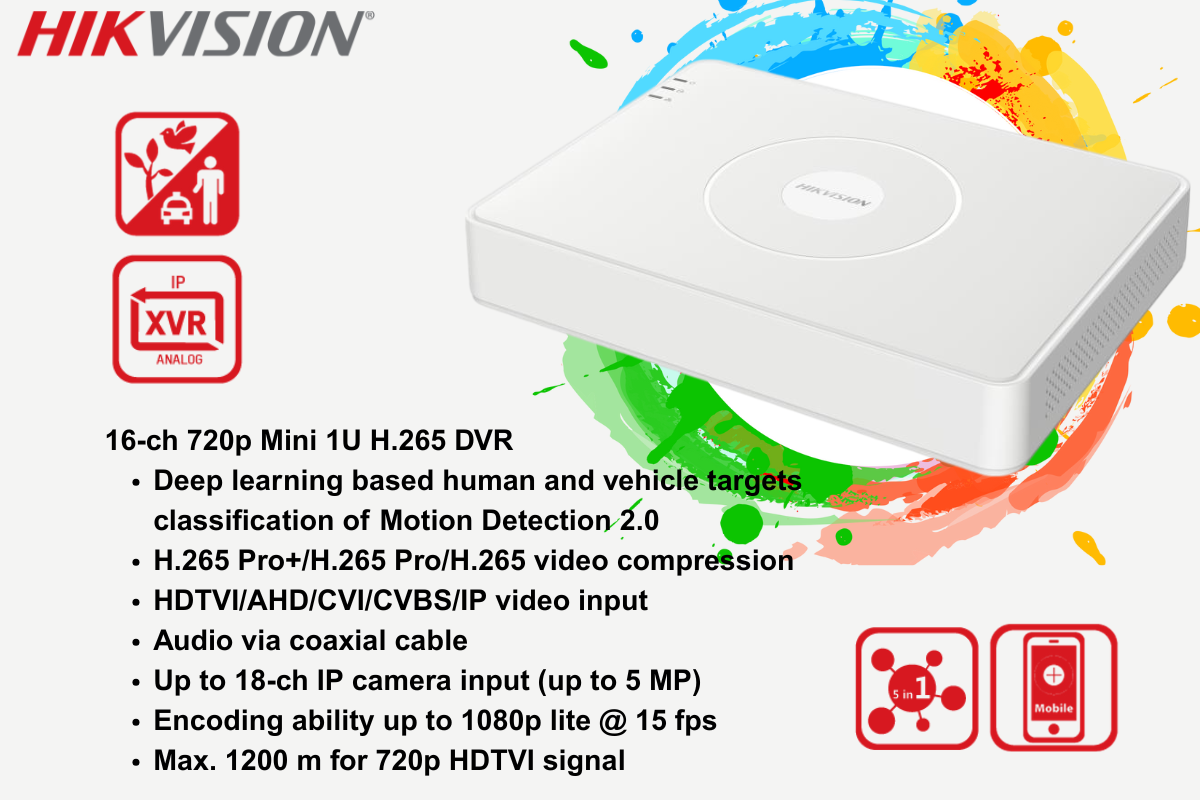

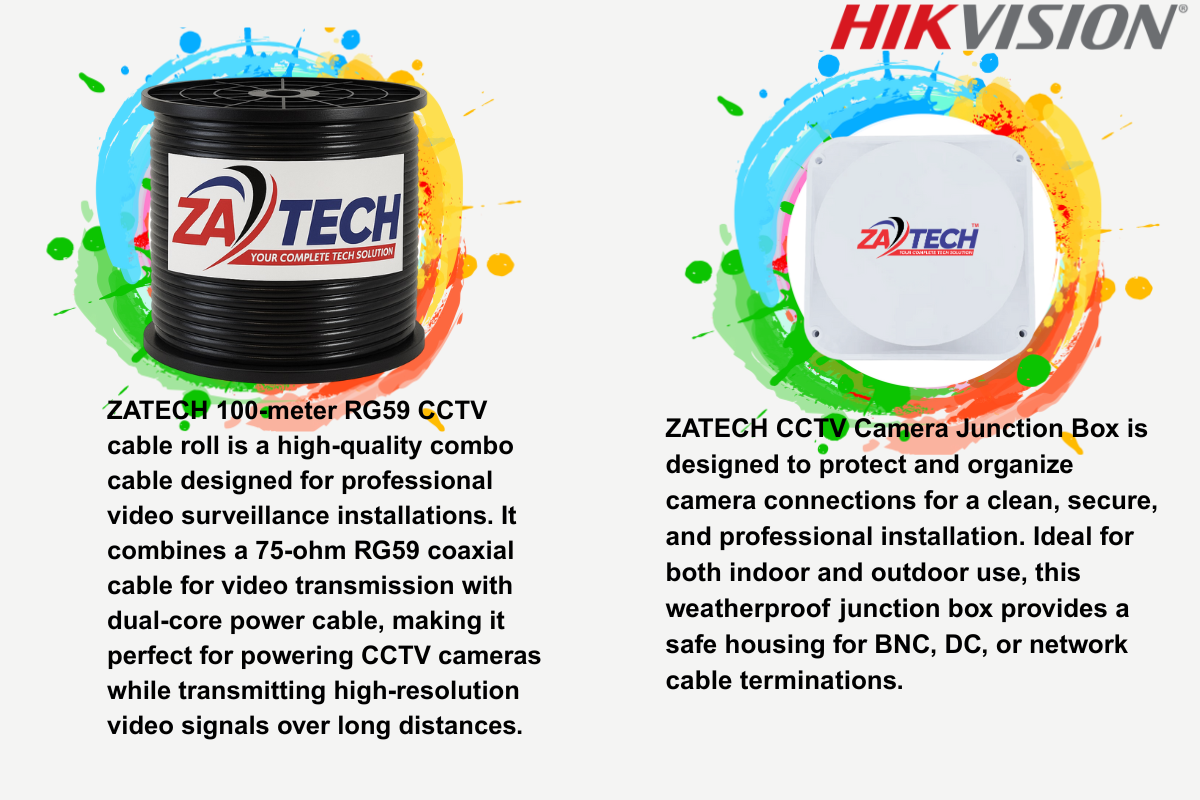

The included 16-channel H.265 Mini DVR supports TVI/AHD/CVI/CVBS/IP video inputs, and H.265 Pro+ compression. For easy installation, the kit comes with 2x Zatech RG59 cable roll 100m , ZATECH junction boxes, 2 ZATECH power supplies, and 2 DC 8P power splitters, ensuring a reliable, high-performance surveillance system ready for 24/7 monitoring.

Camera

• Image Sensor2 MP CMOS
• Max. Resolution1920 (H) × 1080 (V)
• Min. Illumination0.001 Lux @ (F1.0, AGC ON), 0 Lux with white light
• Shutter TimePAL: 1/25 s to 1/50,000 s; NTSC: 1/30 s to 1/50,000 s
• Day & NightICR
• Angle AdjustmentPan: 0 to 360 ,Tilt: 0 to 90 ,Rotate: 0 to 360
• Signal SystemPAL/NTSC
• Lens
• Lens Type2.8 mm and 3.6 mm fixed focal lens
• Focal Length & FOV2.8 mm, horizontal FOV: 105 , vertical FOV: 56 , diagonal FOV: 126 3.6 mm, horizontal FOV: 84 , vertical FOV: 46 , diagonal FOV: 98
• Lens MountM12
• Microphone
• Pickup DistanceIn a radius of up to 5 m
• Amount1
• Illuminator
• Supplement Light TypeIR,White Light
• Supplement Light RangeIR: Up to 20 m,White Light: Up to 20 m
• Image
• Image Parameters SwitchSTD/HIGH-SAT/HIGHLIGHT
• Image SettingsBrightness, Sharpness, Anti-banding, AGC
• Frame RateTVI: 1080p @25 fps/30 fpsCVI: 1080p @25 fps/30 fpsAHD: 1080p @25 fps/30 fpsCVBS: PAL/NTSC
• Day/Night ModeAuto/Color
• Wide Dynamic Range (WDR)Digital WDR
• Noise Reduction3D DNR/2D DNR
• Image EnhancementDWDR,BLC,HLC,Global
• White BalanceAuto, Manual

DVR

• Motion Detection 2.0
• Human/Vehicle AnalysisDeep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights;Quick search by object or event type is supported
• Video and Audio
• IP Video Input2-ch (up to 18-ch)Up to 5 MP resolutionSupport H.265+/H.265/H.264+/H.264 IP cameras
• Analog Video Input16-chBNC interface (1.0 Vp-p, 75 ), supporting coaxitron connection
• HDTVI Input1080p25, 1080p30, 720p25, 720p30
• AHD Input1080p25, 1080p30, 720p25, 720p30
• HDCVI Input1080p25, 1080p30, 720p25, 720p30
• CVBS InputPAL/NTSC
• HDMI Output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
• VGA Output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
• Video Output ModeHDMI/VGA simultaneous output
• Audio Input1-ch RCA (2.0 Vp-p, 1 K ), and 16-ch via coaxial cable
• Audio Output1-ch, RCA (Linear, 1 K )
• Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 K ) (using the first audio input)
• Synchronous Playback16-ch
• Recording
• Video CompressionH.265 Pro+/H.265 Pro/H.265/H.264+/H.264
• Encoding ResolutionFor 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIFFor 720p stream access: 720p/WD1/4CIF/VGA/CIFFor standard definition stream access: WD1/4CIF/VGA/CIF
• Frame RateMain stream: For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF@15 fpsFor 720p stream access: 720p/WD1/4CIF/VGA/CIF@15 fpsFor SD stream access: WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)Sub-stream: For 1080p and 720p stream access CIF/QVGA@15 fpsFor SD stream access: CIF/QVGA@25 fps (P)/30 fps (N)
• Video Bitrate32 Kbps to 4 Mbps
• Dual-streamSupport
• Stream TypeVideo, Video & Audio
• Audio CompressionG.711u
• Audio Bitrate64 Kbps
• Network
• Total Bandwidth96 Mbps
• Remote Connection128
• Network ProtocolTCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, UPnP , HTTPS, ONVIF
• Network Interface1, RJ45 10M/100M self-adaptive Ethernet interface
• Auxiliary Interface
• SATA1, SATA interface
• CapacityUp to 6 TB capacity for each disk
• USB Interface2 × USB 2.0

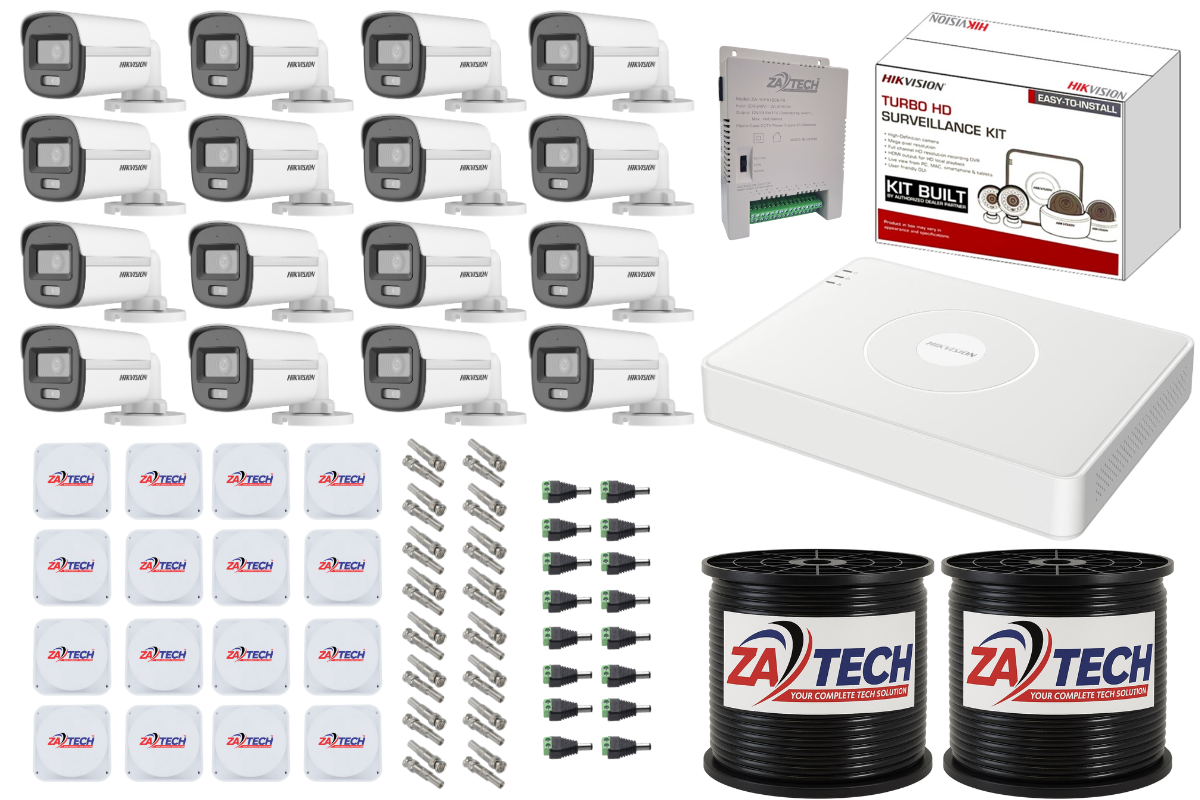

What's in the box

• 1 x 16CH Hikvision DVR
• 16 x 2MP ColorVu Smart Hybrid Cameras
• 16 x Zatech junction box
• 2 x Zatech RG59 cable rolls, 100 m
• 1 x ZATECH Power Supplies
• 16 x DCW Connectors
• 36 x BNC connectors
