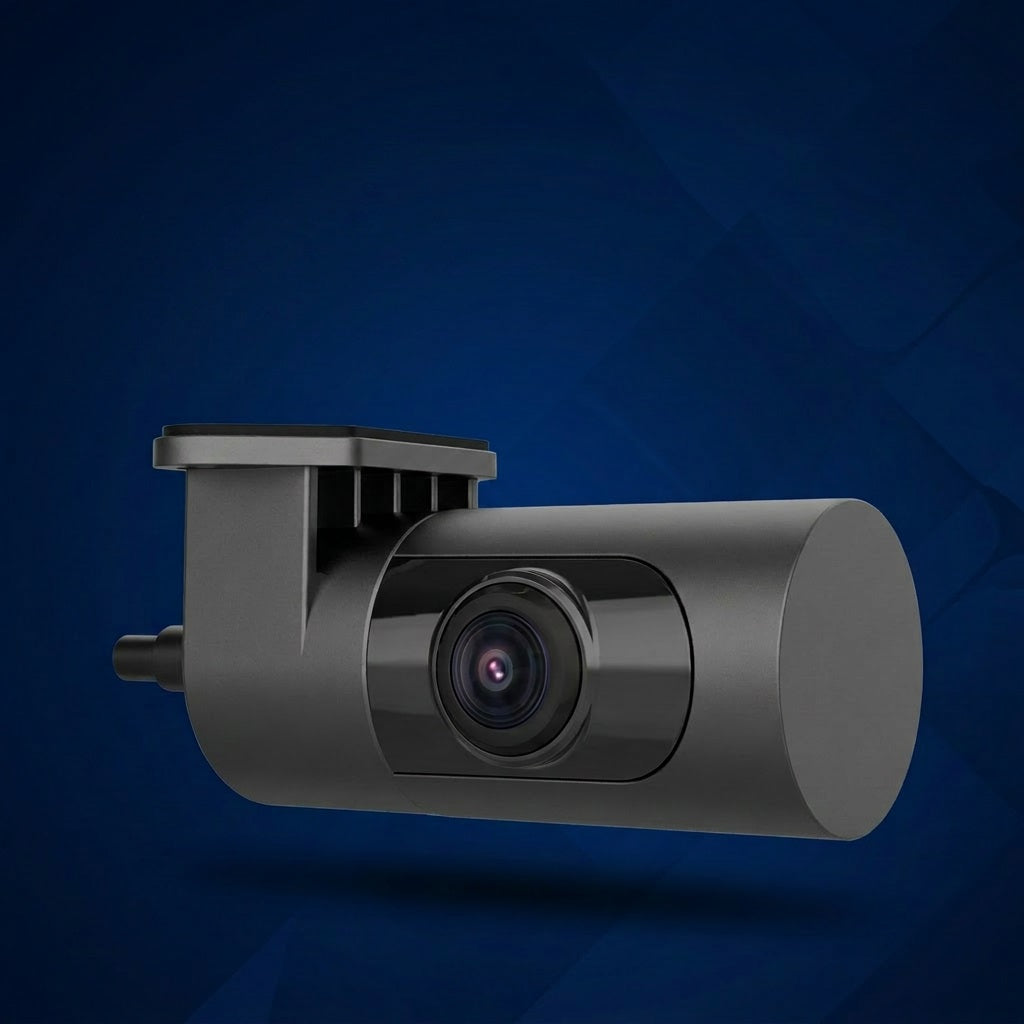

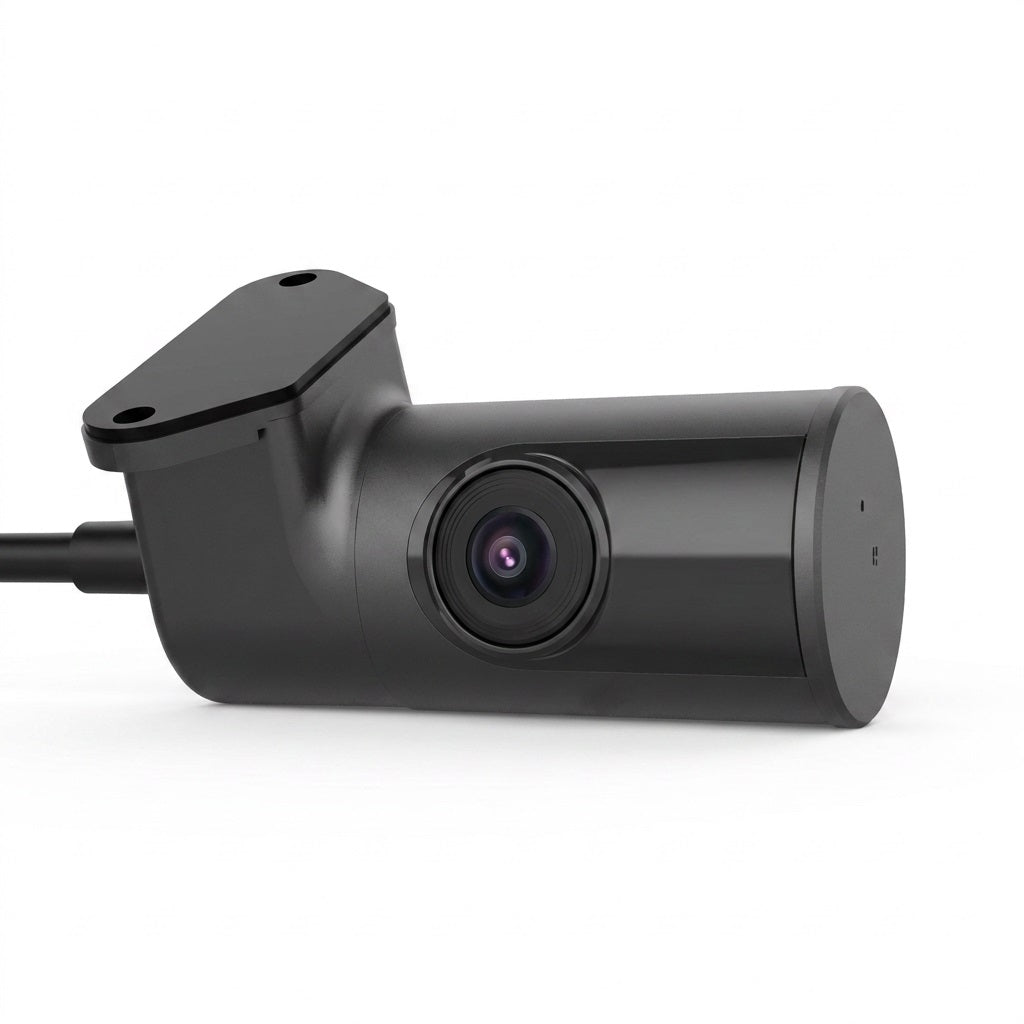

HIKVISION 1Mp Mobile Color Camera 2.1Mm
HIKVISIONon orders over R 500
When do I get it?
Estimated delivery times depend on where you are. Your exact date is confirmed at checkout.
| Delivery destination | Delivery time |
|---|---|
| Cape Town, Durban, Johannesburg & Pretoria | 1–3 working days |
| Regional areas | 5–6 working days |
| Remote areas | 3–7 working days |
- Interest Free Payments available
- Hassle Free Returns within 7 days
- 6-month limited warranty
Description
720P 1/2.9”CMOS infrared array cylindrical analog camera
Adopts progressive scan CMOS to prevent motion image aliasing
Supports HD coaxial output with the resolution 720P
Min. illumination: 0.1 Lux @(F1.2, AGC ON), 0 Lux with IR
Supports auto day & night switch
Adopts auto electronic shutter to adapt to different environment
Support auto gain control and self-adaption to light
Shock-proof design
Camera
Shutter Speed
1/25 s to 1/30,000 s
P/N
NA
Wide Dynamic Range
NA
Day & Night
Electronic
Lens
Fixed Aperture
F2.0
Lens Mount
M12
Video
Frame Rate
720P@25 fps
SNR
42 dB
Interface
Video Output
TVI
Built-in Microphone
Yes
Built-in Speaker
NO
Audio
Yes
Interface Style
1 Vpp Composite Output (aviation plug or BM4F plug )
aviation plug`a3°1: video, 2: Audio, 3: power, 4: ground
BM 4F plug: 1:power ,2`a3°ground`a3`ac3`a3°Video`a3`ac4`a3°Audio
Supplement Light Unit
Power Supply
9 to 16 V DC
Power Consumption
Max. 2 W
General
Camera Material
Plastic
Camera Dimension
61 mm × 39 mm × 33mm
Startup and Operating Conditions
-40 °C to 75 °C (-40 °F to 167 °F), 90%
Frequently Bought Together Frequently bought
Product Information
| Categories | Hikvision / Security & Surveillance / Specials |
| Brand | Hikvision |
| Brand | Hikvision |
| Model | AE-VC143T-ITS21 (2.1 mm) |
| Camera Type | Mobile / in-vehicle analog camera |
| Resolution | 720p (1 MP) |
| Image Sensor | 1/2.9" progressive scan CMOS |
| Lens | 2.1 mm fixed |
| Aperture | F2.0 |
| Lens Mount | M12 |
| Min. Illumination | 0.1 Lux @ F1.2 (AGC on); 0 Lux with IR |
| Day & Night | Auto (electronic) |
| Shutter Speed | 1/25 s to 1/30,000 s |
| Frame Rate | 720p @ 25 fps |
| Signal-to-Noise Ratio | ≥ 42 dB |
| Video Output | HD-TVI (HD coaxial) |
| Built-in Microphone | Yes |
| Built-in Speaker | No |
| Output Interface | 1 Vpp composite (aviation plug / BM4F plug) |
| Power Supply | 9 to 16 V DC |
| Power Consumption | Max. 2 W |
| Housing Material | Plastic |
| Dimensions | 61 mm × 39 mm × 33 mm |
| Operating Temperature | -40 °C to 75 °C |
| Operating Humidity | ≤ 90% |
| Design | Shock-proof, vehicle-grade |
| Barcode | 6941264090397 |
