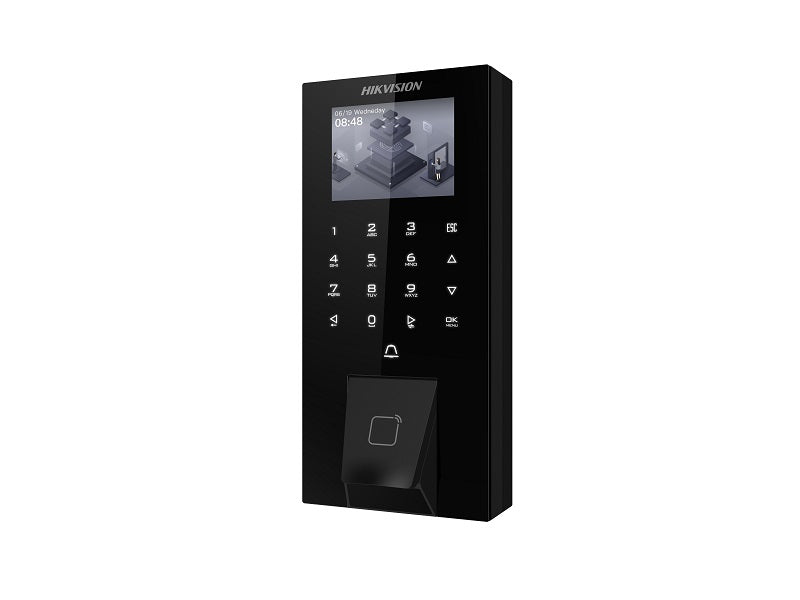

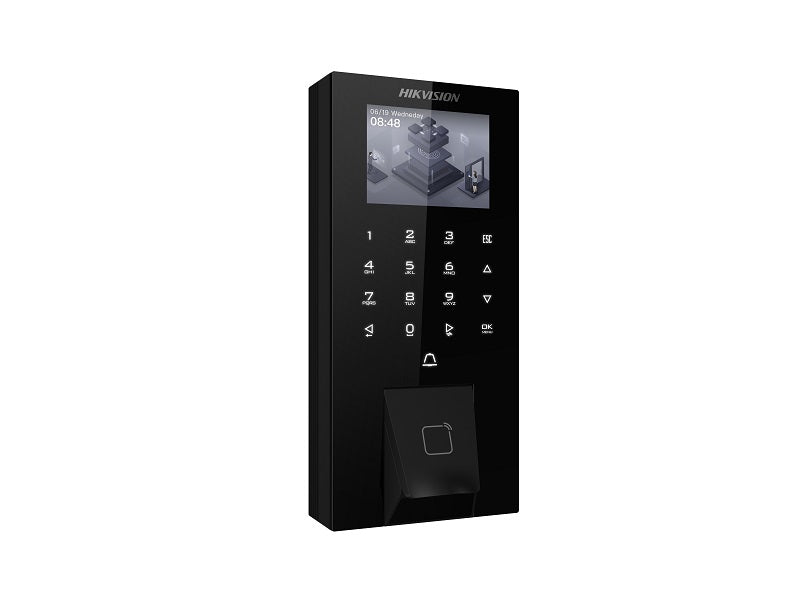

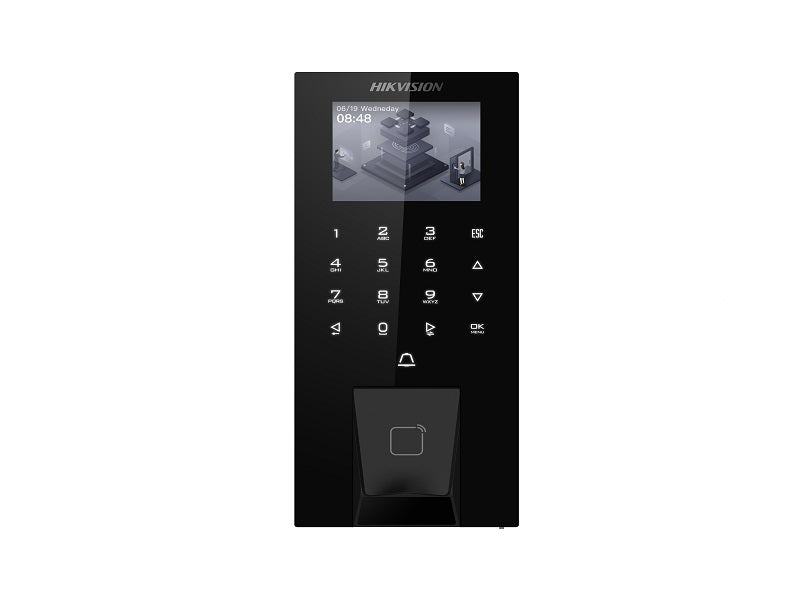

HIKVISION 2.4" Value Fingerprint Termina

Multiple authentication methods, including fingerprint, card (M1 card), and PIN, etc. Supports wiring with secure door control unit or card reader via RS-485.

Key features

• Value Fingerprint Terminal
• Max. 5000 cards, 5000 fingerprints and 150,000 events
• Configuration via web client
• Supports wired network and Wi-Fi (AP mode)
• Supports powered by 12 VDC or PoE and supports powering for device and door lock
• Linux
• Screen size
• Type
• LCD
• Support
• Bluetooth
• Lock control
• Exit button
• Tamper
• Wiegand
• PoE
• Fingerprint capacity
• Card capacity
• Event capacity
• Authentication
• Card type
• Fingerprint module
• Optical fingerprint module
• Fingerprint comparing mode
• Supports power supply by battery in the bracket
• Working temperature
• 30 `b0C to 60 `b0C (-22 `b0F to 140 `b0F)
• Working humidity
• Language
• English, Spanish (South American), Arabic, Thai, Indonesian, Russian, Vietnamese, Portuguese(Brazil), Turkish, Ukrainian, Italian, French
• Keypad
• 172 mm `d7 76 mm `d7 27.5 mm (6.77" `d7 2.99" `d7 1.08")
• Installation
• Wall mounting

Specifications

• Ds-k1t807mbfwx-e1
• 2.4-inch LCD screen
• Supports ISAPI and ISUP 5.0 protocols
• 2.4 inch
• Resolution
• 320 `d7 240
• Support, 2.4 G, 802.11b/g/n
• 1 RJ-45, 10/100 M self-adaptive
• 1
• 2
• RS-485
• 1 RS-485 (Half duplex, HIKVISION)
• 1 Wiegand (W26, W34)
• Capacity
• 5000
• 150,000
• M1 card
• 1:1 and 1:N
• 12 VDC
• ≤ 6 W
• 0 to 90% (No condensing)
• Net weight: 0.377 kg (0.831 lb)
• Rough weight: 0.562 kg (1.239 lb)
