HIKVISION 256x192 10mm Bi-Spectrum

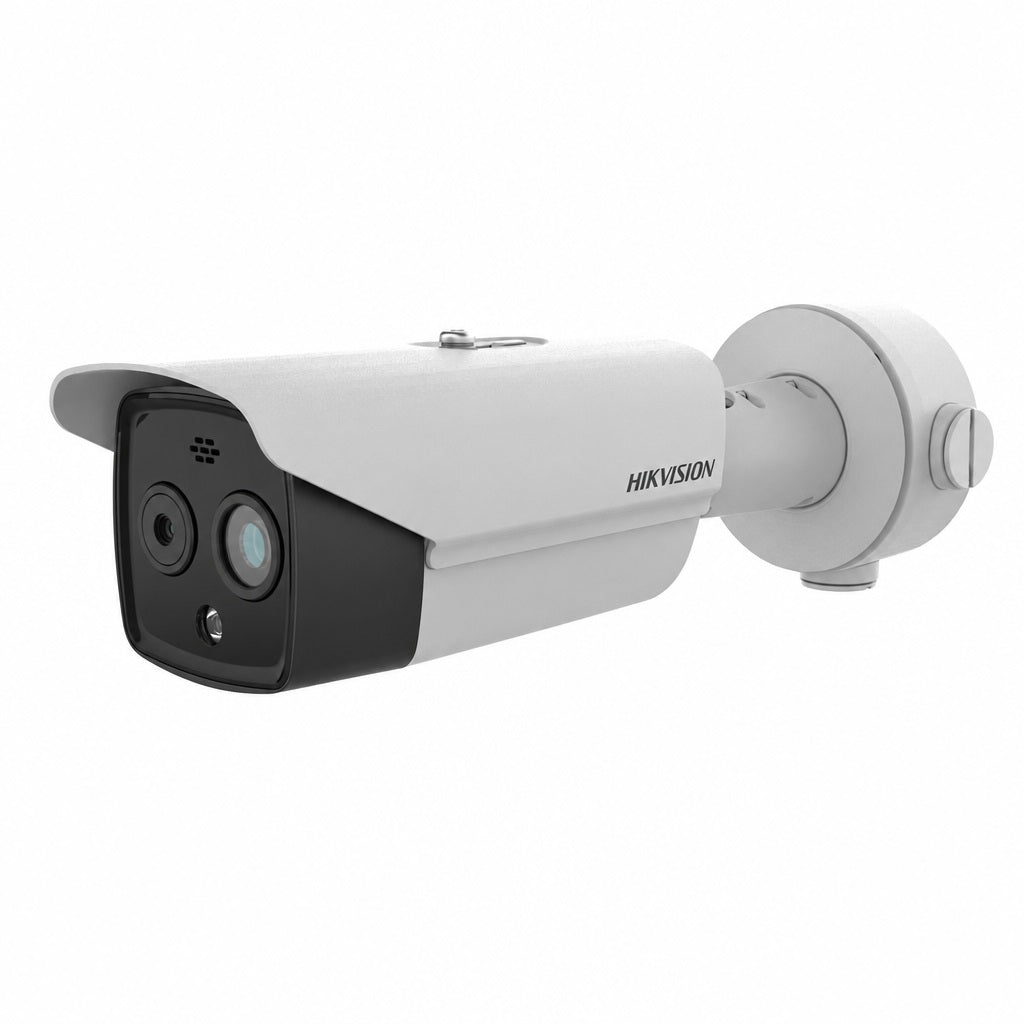

HIKVISION Thermal & Optical Bi-Spectrum Network Bullet Camera – 256×192 Thermal
Full Product Description

The HIKVISION Thermal & Optical Bi-Spectrum Network Bullet Camera combines a 256 × 192 thermal imaging sensor with a high-resolution 2688 × 1520 optical camera in one professional surveillance solution.

Designed for advanced perimeter security, fire prevention and temperature monitoring, the camera can use both thermal and visible-light imaging to provide enhanced situational awareness in challenging environments.

The thermal module uses a Vanadium Oxide Uncooled Focal Plane Array (VOx UFPA) with a 12`ecm pixel pitch and NETD of less than 40mK, providing sensitive thermal imaging for detecting temperature differences and targets in low-visibility conditions.

A 9.7mm thermal lens provides an 18.0° × 13.5° field of view, while the optical module features an 8mm lens and 2688 × 1520 resolution for detailed visible-light imaging.

For intelligent surveillance, the camera supports human and vehicle classification together with VCA functions including line crossing, intrusion, region entrance and region exit detection. Human VCA range is specified at up to 80m, while vehicle VCA range reaches up to 240m.

The camera also supports temperature measurement from -20°C to 150°C, temperature exception alarms, fire detection, smoking detection and a sun-reflection filter algorithm.

Built-in IR illumination reaches up to 30 metres, while white-light illumination up to 30 metres can provide a visual flashing alarm. Audible alarm functionality provides both preset and user-importable voice alerts.

With IP67 weather protection, IK10-rated housing, PoE support and up to 256GB microSD storage, this HIKVISION thermal bi-spectrum camera is designed for demanding professional surveillance installations.

Key Features
Brand: HIKVISION
Thermal & Optical Bi-Spectrum Network Bullet Camera
256 × 192 Thermal Resolution
12`ecm Pixel Pitch
VOx Uncooled Focal Plane Array
NETD <40mK
9.7mm Thermal Lens
2688 × 1520 Optical Resolution
1/2.7" Progressive Scan CMOS
8mm Optical Lens
Human & Vehicle Classification
Human VCA Range: Up to 80m
Vehicle VCA Range: Up to 240m
Temperature Measurement
-20°C to 150°C Measurement Range
Temperature Exception Alarm
Fire Detection
Smoking Detection
Sun-Reflection Filter
Up to 30m IR
Up to 30m White Light
Audible & Visual Alarm
H.265 / H.264
MicroSD Up to 256GB
PoE Support
IP67
IK10
Thermal Module Specifications
Specification Details
Sensor Vanadium Oxide Uncooled Focal Plane Array
Thermal Resolution 256 × 192
Pixel Pitch 12`ecm
Spectral Range 8`ecm–14`ecm
NETD <40mK @ 25°C, F1.0
Focal Length 9.7mm
IFOV 1.24mrad
Field of View 18.0° × 13.5°
Minimum Focus Distance 1.5m
Aperture F1.0
Digital Zoom 2× / 4×
Optical Module Specifications
Specification Details
Image Sensor 1/2.7" Progressive Scan CMOS
Resolution 2688 × 1520
Lens 8mm
Field of View 39.4° × 22.1°
Aperture F1.6
Minimum Illumination 0.0089 Lux @ F1.6, AGC On
IR Illumination 0 Lux with IR
Shutter Speed 1s–1/100,000s
WDR 120dB
Intelligent Detection

The camera provides four VCA rule types:

Line Crossing
Intrusion Detection
Region Entrance
Region Exit

Up to 8 VCA rules can be configured.

It also supports human and vehicle classification to help distinguish relevant targets.

VCA Detection Range

Humans: Up to 80m
Vehicles: Up to 240m

Temperature Measurement & Fire Prevention

The thermal system supports three temperature measurement rule types with up to 21 rules:

10 × Points
10 × Areas
1 × Line

Temperature Range: -20°C to 150°C
Temperature Accuracy: ±8°C

Temperature exception alarms can assist with applications where abnormal heat needs to be identified for fire-prevention monitoring.

Advanced Thermal Functions

Additional intelligent functions include:

Fire Detection
Smoking Detection Algorithm
Sun-Reflection Filter Algorithm
Target Coloration
White Hot Mode
Black Hot Mode
Linear AGC
Histogram AGC
Self-Adaptive Thermal AGC
DDE
3D DNR
IR & Audible/Visual Alarm

IR Range: Up to 30m
White Light Range: Up to 30m

The white light supports adjustable flashing frequencies for visual alarm applications.

The camera also provides audible alarms for:

VCA events
Temperature exceptions

It supports 2 preset voice alerts and 6 importable user-defined voice alerts.

Video & Audio

Thermal Main Stream: Up to 25fps
Optical Main Stream: Up to 25fps at 50Hz / 30fps at 60Hz

Main Stream Compression: H.265 / H.264
Sub-Stream Compression: H.265 / H.264 / MJPEG

Supported audio compression includes:

G.722.1 • G.711ulaw • G.711alaw • MP2L2 • G.726 • PCM

Network & Storage
RJ45 10/100Mbps Ethernet
IPv4 / IPv6
HTTP / HTTPS
RTSP / RTP
TCP / UDP
FTP / SFTP
SMTP
SNMP
DHCP
DNS / DDNS
NTP
SRTP / TLS
ONVIF Profile S & G
HIKVISION SDK
ISAPI
ISUP
NAS Support
ANR
MicroSD / SDHC / SDXC up to 256GB
Up to 20 Simultaneous Live View Channels
Up to 32 Users
Hik-Connect
iVMS-4200
Interfaces
Interface Specification
Ethernet RJ45 10/100Mbps
Alarm Input 2
Alarm Output 2
Audio Input 1 × 3.5mm Mic/Line In
Audio Output Linear Level, 600Ω
RS-485 1 × Half Duplex
Analogue Output BNC, PAL/NTSC
Local Storage microSD up to 256GB
Power & Protection
12V DC ±25%
24V AC ±25%
PoE IEEE 802.3af Class 3
Maximum Power Consumption: 8.5W
IP67 Weather Protection
IK10 Impact-Resistant Housing
TVS 6000V Lightning Protection
Surge Protection
Voltage Transient Protection
Physical Specifications

Operating Temperature: -40°C to 65°C
Operating Humidity: ≤95%
Dimensions: 321.3 × 106.1 × 107mm
Weight: Approx. 1.55kg

Ideal Applications

Fire Prevention • Perimeter Security • Warehouses • Factories • Industrial Sites • Storage Facilities • Critical Infrastructure • Commercial Properties • Temperature Monitoring • Outdoor Security

What`s in the Box
1 × HIKVISION Thermal & Optical Bi-Spectrum Network Bullet Camera
Mounting and installation accessories as supplied
