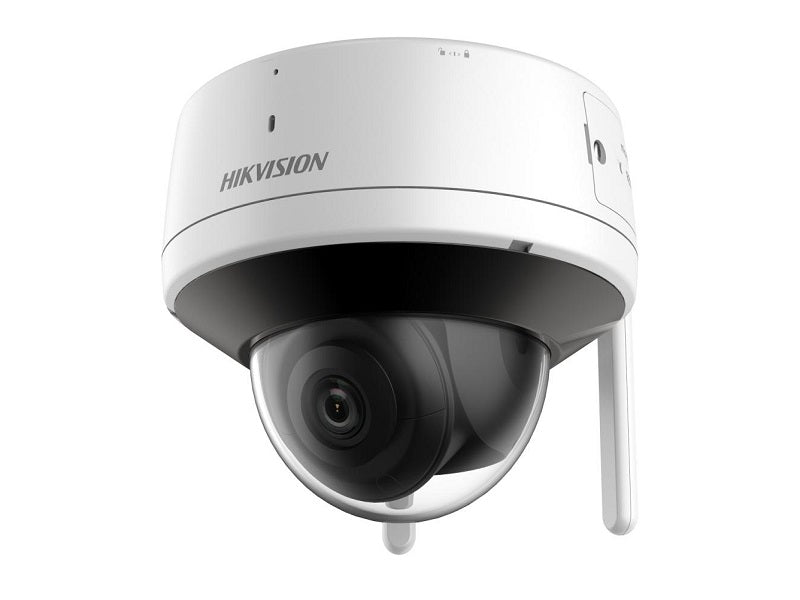

Hikvision 2MP 2.8mm Indoor Network

Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB. Color: 0.005 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR.

Key features

• 2 MP Outdoor Audio Fixed Dome Network Camera
• Realizing Wi-Fi connection and easy installation
• Provides real-time security via built-in two-way audio
• EXIR 2.0, advanced infrared technology with long IR distance
• (W) version models support mobile monitoring via Hik-Connect
• Image Sensor
• Max. Resolution
• Min. Illumination
• Shutter Time
• Day & Night
• IR cut filter
• Angle Adjustment
• unsupported
• Fixed focal lens, 2.8 and 4 mm optional
• Focal Length & FOV
• 2.8 mm, horizontal FOV 92`b0, vertical FOV 50`b0, diagonal FOV 110`b0
• 4 mm, horizontal FOV 75`b0, vertical FOV 41`b0, diagonal FOV 89`b0
• Iris Type
• Fixed
• Dori
• 2.8 mm, D: 42 m, O: 17 m, R: 9 m, I: 4 m
• 4 mm, D: 52 m, O: 21 m, R: 11 m, I: 5 m
• Illuminator
• Supplement Light Type
• IR
• Supplement Light Range
• Smart Supplement Light
• Yes
• IR Wavelength
• Main Stream
• 50 Hz: 25 fps (1920 `d7 1080, 1280 `d7 720)
• 60 Hz: 30 fps (1920 `d7 1080, 1280 `d7 720)
• Sub-Stream
• 50 Hz: 25 fps (768 `d7 432, 512 `d7 288)
• 60 Hz: 30 fps (768 `d7 432, 512 `d7 288)
• Baseline Profile/Main Profile/High Profile
• NA
• Protocols
• Tcp/ip, icmp, http, https, FTP, dhcp, DNS, RTP, rtsp, rtcp, NTP, upnp, igmp, qos, ipv4, UDP, bonjour, ssl/tls
• Simultaneous Live View
• API
• Onvif, SDK
• Security
• Password protection, HTTPS encryption, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE for Open Network Video Interface
• User/Host
• administrator
• Client
• Web Browser
• Channel Bandwidth
• Modulation
• Transfer Rate
• Wireless Range
• (The performance varies based on actual environment)
• Antenna
• Image
• Image Settings
• Rotate mode, saturation, brightness, contrast, sharpness adjustable by client software
• Day/Night Switch
• Auto, Schedule, Day, Night
• Wide Dynamic Range (WDR)
• Digital WDR
• Image Enhancement
• Privacy Mask
• Built-in Microphone
• Reset Key
• 1 RJ45 10 M/100 M self-adaptive Ethernet port
• Event
• Basic Event
• Motion detection (support alarm triggering by specified target types (human and vehicle)),exception
• Linkage
• Upload to memory card, notify surveillance center, trigger capture, audible warning, auto-tracking lite
• 12 VDC `b1 10%, 1A, max. 10 W, `d62 mm coaxial power plug, reverse polarity protection
• Language
• 30 `b0C to 60 `b0C (-22 `b0F to 140 `b0F). Humidity 95% or less (non-condensing)
• Heartbeat, mirror
• Startup and Operating Conditions
• Base: metal, front cover: polycarbonate, back cover: polycarbonate
• 120 mm `d7 120 mm `d7 95 mm (4.7" `d7 4.7" `d7 3.7")
• 170 mm `d7 170 mm `d7 150 mm (6.7" `d7 6.7" `d7 5.9")
• Approx. 593 g (1.3 lb.)
• Approx. 886 g (1.95 lb.)
• Approval
• EMC
• Ce-emc: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014
• RF
• CE-RED (EN 301489-1 V2.1.1(BT or 2.4G); EN 301489-17 V3.1.1(BT or 2.4G); EN 300328 V2.1.1(BT or 2.4G); EN 62311:2008(BT or 2.4G));
• Safety
• Protection

Specifications

• Camera DS-2CV2121G2-IDW
• High quality imaging with 2 MP resolution
• Efficient H.265 compression technology
• Water and dust resistant (IP66)
• 1/2.8" Progressive Scan CMOS
• 1920 `d7 1080
• 1/3 s to 1/100,000 s
• Lens
• Lens Type
• Aperture
• F1.6
• Lens Mount
• M12
• Depth of Field
• 2.8 mm: 1.5 m to ∞
• 4 mm: 2 m to ∞
• Up to 30 m
• 850 nm
• Main stream: H.264
• Sub-stream: H.264
• up to 1 Mbps
• H.264 Type
• H.265 Type
• G.711/aac-lc
• 64 Kbps (G.711)/16 to 64 Kbps (AAC)
• 8 kHz/16 kHz
• Up to 4 channels
• iVMS-4200, Hik-Connect, Hik-Partner-Pro
• IEEE802.11b, 802.11g, 802.11n
• Frequency Range
• 2.412 GHz to 2.472 GHz
• 20 MHz
• 802.11b: CCK, qpsk, bpsk,
• 802.11g: OFDM,
• 802.11n: OFDM
• 11b: up to 54 Mbps,
• 11g: up to 54 Mbps,
• 11n: up to 150 Mbps
• Up to 120 m
• 2 Antenna(s)
• 4 programmable polygon privacy masks
• Yes, 1 built-in microphone
• Yes,1 built-in speaker
• Material
• CB: IEC 62368-1: 2014+A11,
• Ce-lvd: EN 62368-1: 2014/A11: 2017
• Ce-rohs: 2011/65/EU
• Weee: 2012/19/EU
• IP66
