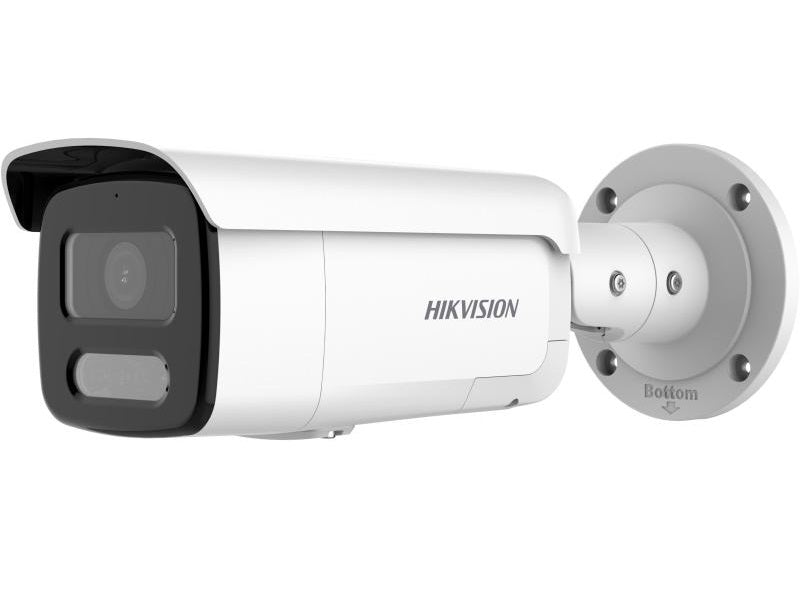

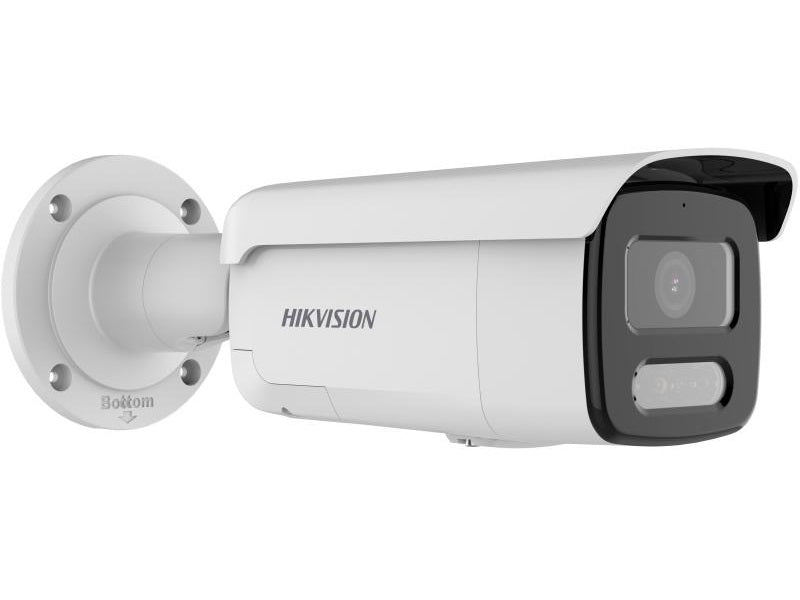

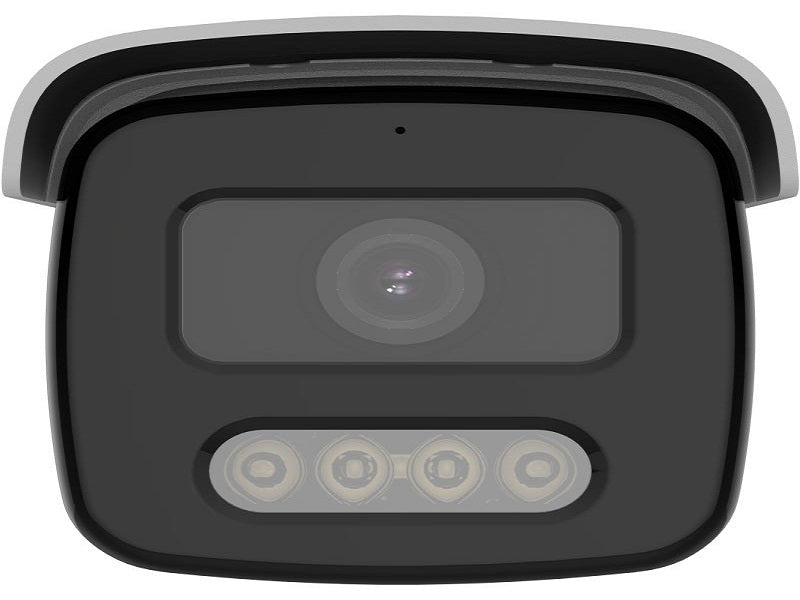

HIKVISION 2MP 4MM AcuSense Strobe Light

2 MP AcuSense Strobe Light and Audible Warning Fixed Bullet Network Camera. Clear imaging against strong back light due to 120 dB WDR technology.

Key features

• and Audible Warning Bullet Network Camer
• Excellent low-light performance with powered-by-DarkFighter technology
• Focus on human and vehicle targets classification based on deep learning
• Active strobe light and audio alarm to warn intruders off
• Provides real-time security via built-in two-way audio
• Image Sensor
• Max. Resolution
• Min. Illumination
• Color: 0.002 Lux @ (F1.4, AGC ON),B/W: 0 Lux with IR
• Shutter Time
• Day & Night
• IR cut filter
• Angle Adjustment
• Pan: 0`b0 to 360`b0,tilt: 0`b0 to 90`b0,rotate: 0`b0 to 360`b0
• Fixed focal lens, 2.8, 4, and 6 mm optional
• Focal Length & FOV
• 2.8 mm, horizontal FOV: 107`b0, vertical FOV: 57`b0, diagonal FOV: 129`b0
• 4 mm, horizontal FOV: 86`b0, vertical FOV: 47`b0, diagonal FOV: 102`b0
• 6 mm, horizontal FOV: 55`b0, vertical FOV: 29`b0, diagonal FOV: 65`b0
• Iris Type
• Fixed
• Dori
• 2.8 mm: D: 44 m, O: 17 m, R: 9 m, I: 4 m
• 4 mm: D: 53 m, O: 21 m, R: 11 m, I: 5 m
• 6 mm: D: 87 m, O: 34 m, R: 17 m, I: 9 m
• Illuminator
• Supplement Light Type
• IR
• Supplement Light Range
• Smart Supplement Light
• Yes
• IR Wavelength
• Main Stream
• 50 Hz: 25 fps (1920 `d7 1080, 1280 `d7 720)
• 60 Hz: 30 fps (1920 `d7 1080, 1280 `d7 720)
• Sub-Stream
• 50 Hz: 25 fps (640 `d7 480, 640 `d7 360)
• 60 Hz: 30 fps (640 `d7 480, 640 `d7 360)
• Third Stream
• 50 Hz: 10 fps (1920 `d7 1080, 1280 `d7 720, 640 `d7 480, 640 `d7 360)
• 60 Hz: 10 fps (1920 `d7 1080, 1280 `d7 720, 640 `d7 480, 640 `d7 360),
• Third stream is supported under certain settings.
• Baseline Profile,Main Profile,High Profile
• Main Profile
• Bit Rate Control
• CBR
• Scalable Video Coding (SVC)
• Region of Interest (ROI)
• 1 fixed region(s) for main stream and sub-stream
• Mono sound
• 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
• Protocols
• TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets
• Simultaneous Live View
• API
• Open Network Video Interface (Profile S, Profile G, Profile T),ISAPI,SDK
• Smooth Streaming
• User/Host
• Security
• Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.3, host authentication (MAC address)
• NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR),
• Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
• Client
• Web Browser
• Image
• Image Parameters Switch
• Image Settings
• Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
• Day/Night Switch
• Day,Night,Auto,Schedule
• Wide Dynamic Range (WDR)
• SNR
• Image Enhancement
• Privacy Mask
• 1 RJ45 10 M/100 M self-adaptive Ethernet port
• Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB
• Max. power consumption: 2 W, max. sound pressure level: 10 cm: 97 dB.
• Built-in Microphone
• Alarm
• 1 input(s), 1 output(s) (max. 24 VDC/24 VAC, 1 A)
• 1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 K'd9, interface type: non-equilibrium,
• 1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 `d9, interface type: non-equilibrium
• Reset Key
• Event
• Basic Event
• Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
• Smart Event
• Line crossing detection, intrusion detection, region entrance detection, region exiting detection (support alarm triggered by specified target types (human and vehicle)),
• Scene change detection
• Linkage
• Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,trigger capture,audible warning,white light flashing
• Deep Learning Function
• Face Capture
• 12 VDC `b1 25%, 0.88 A, max. 10.6 W,`d85.5 mm coaxial power plug,reverse polarity protection,
• PoE: 802.3af, Class 3, 36 V to 57 V, 0.34 A to 0.21 A, max. 12 W
• 289 mm `d7 93.1 mm `d7 91.2 mm (11.4" `d7 3.7" `d7 3.6")
• 386 mm `d7 156 mm `d7 155 mm (15.2" `d7 6.1" `d7 6.1")
• Approx. 1195 g (2.6 lb.)
• Approx. 1704 g (3.8 lb.)

Specifications

• High quality imaging with 2 MP resolution
• Efficient H.265+ compression technology
• Water and dust resistant (IP67)
• 1/2.8" Progressive Scan CMOS
• 1920 `d7 1080
• 1/3 s to 1/100,000 s
• Lens
• Lens Type
• Lens Mount
• M12
• Aperture
• F1.4
• Depth of Field
• 2.8 mm: 1.1 m to ∞
• 4 mm: 1.2 m to ∞
• 6mm: 3 m to ∞
• Up to 60 m
• 850 nm
• Main stream: H.265/H.264/H.264+/H.265+,
• Sub-stream: H.265/H.264/MJPEG,
• Third stream: H.265/H.264,
• 32 Kbps to 8 Mbps
• H.264 Type
• H.265 Type
• H.264 and H.265 encoding
• G.711/g.722.1/g.726/mp2l2/pcm/mp3/aac-lc
• 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
• Up to 6 channels
• Up to 32 users
• 3 user levels: administrator, operator, and user
• iVMS-4200,Hik-Connect,Hik-Central
• Plug-in required live view: IE 10+, IE 11,
• Plug-in free live view: Chrome 57.0+, Firefox 52.0+,
• Local service: Chrome 57.0+, Firefox 52.0+
• 120 dB
• ≥ 52 dB
• Blc,hlc,3d DNR
• Material
• Front cover: metal, back cover: metal
